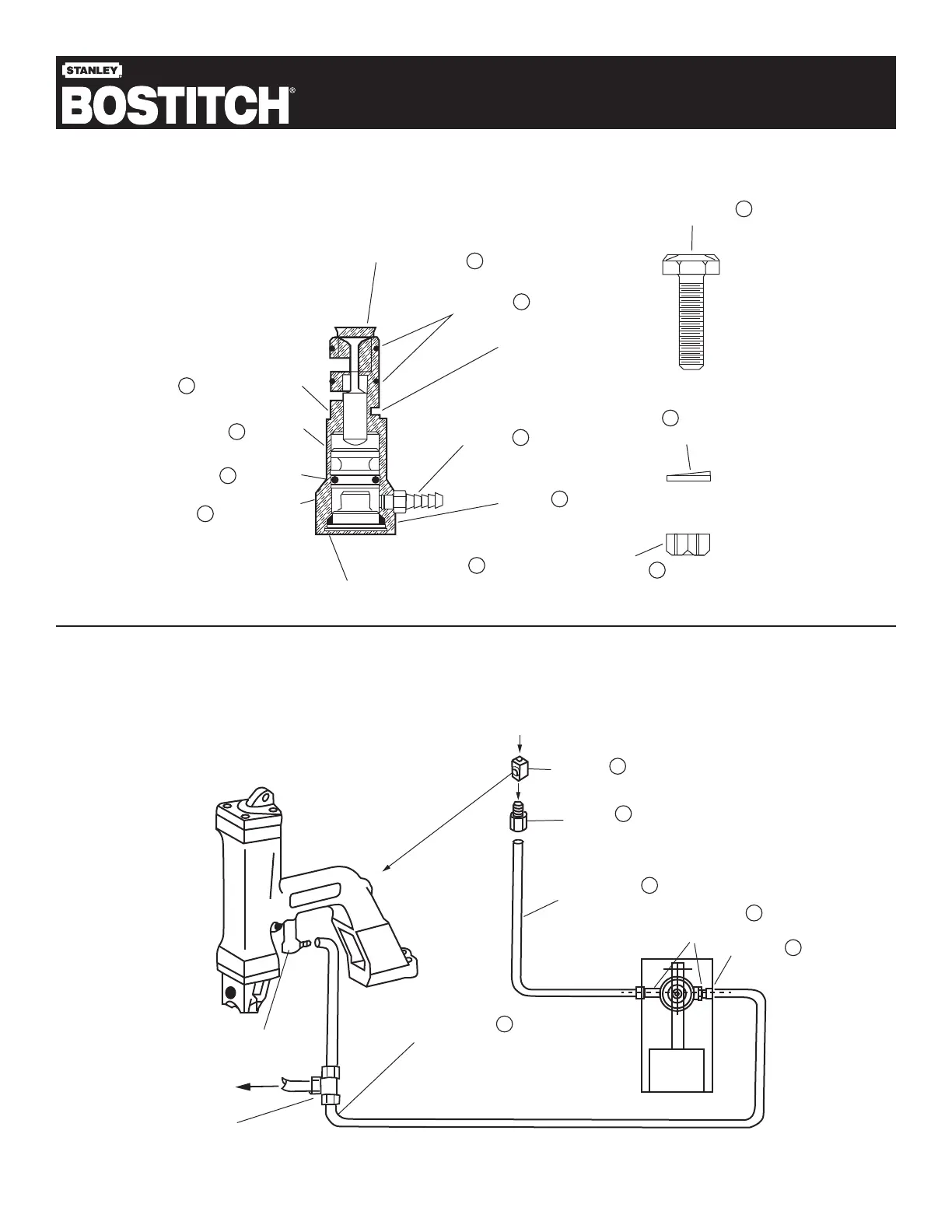

Bostitch P50 - Page 2

MAIN AIR SUPPLY
851628
TEE
HN51618
HEX NUT
89695
RETAINING RING
P50184
VALVE PLUG
C782
"O" RING
P50183
PISTON
P50182
VALVE BARREL
P50115A
VALVE STEM
86458
"O" RING
EXISTING
ROLL PIN
86459
"O" RING
P50185
CLINCHER
LW516
LOCK WASHER
89696
HOSE FITTING
86446
HALF UNION
85334 - 10
PLASTIC TUBING
86446
HALF UNION
86323
FOOT VALVE
(COVER NOT SHOWN)
85334 - 10
PLASTIC TUBING
USE TEE TO CONNECT
TO SECOND P50
REMOTE CONTROL
VALVE
1
9
8
7
12
6
5
4
3
2
10
11
13
14
15
14
16
15
P50181
REMOTE CONTROL VALVE
AND CLINCHER KIT
P50K1
ASSEMBLY INSTALLATION
WITH REMOTE CONTROL KIT
CONTROL VALVE IS 3 WAY,
NORMALLY CLOSED VALVE
