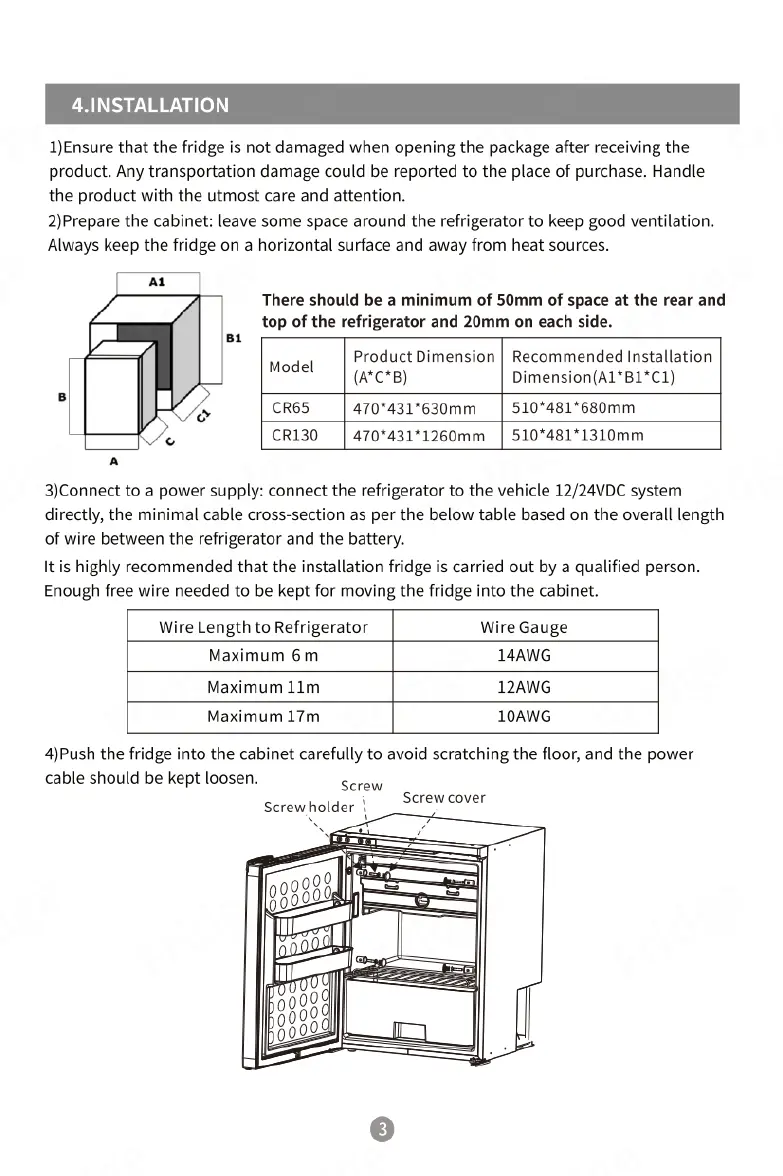

BougeRV CR65 - Installation Guide

1)Ensure that the fridge is not damaged when opening the package after receiving the
product. Any transportation damage could be reported to the place of purchase. Handle
the product with the utmost care and attention.
2)Prepare the cabinet: leave some space around the refrigerator to keep good ventilation.
Always keep the fridge on a horizontal surface and away from heat sources.
a1
There should be a minimum of 50mm of space at the rear and
top of the refrigerator and 20mm on each side.
B1
Model Product Dimension [ Recommended Installation
(A*C*B) Dimension(A1*B1*C1)
° > CR65 470*431*630mm 510%481"680mm
o CR130 470%43171260mm | 510*481*1310mm
A
3)Connect to a power supply: connect the refrigerator to the vehicle 12/24VDC system
directly, the minimal cable cross-section as per the below table based on the overall length
of wire between the refrigerator and the battery.
It is highly recommended that the installation fridge is carried out by a qualified person.
Enough free wire needed to be kept for moving the fridge into the cabinet.
Wire Length to Refrigerator Wire Gauge
Maximum 6m 14AWG
Maximum 11m 12AWG
Maximum 17m 10AWG
4)Push the fridge into the cabinet carefully to avoid scratching the floor, and the power
cable should be kept loosen. Screw
i\ Screwcover
Screw holder |
