BougeRV CR65 - Combining Fridge and Freezer Compartments

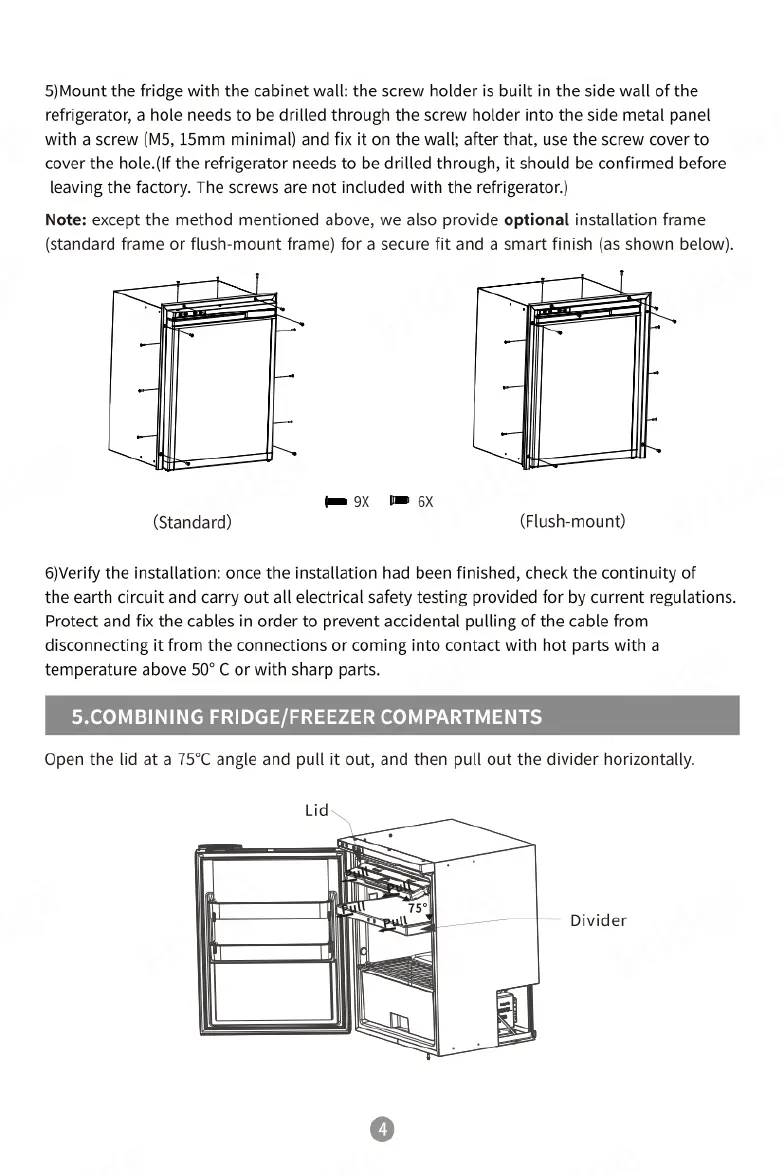

5)Mount the fridge with the cabinet wall: the screw holder is built in the side wall of the
refrigerator, a hole needs to be drilled through the screw holder into the side metal panel
with a screw (M5, 15mm minimal) and fix it on the wall; after that, use the screw cover to
cover the hole.(If the refrigerator needs to be drilled through, it should be confirmed before
leaving the factory. The screws are not included with the refrigerator.)
Note: except the method mentioned above, we also provide optional installation frame
(standard frame or flush-mount frame) for a secure fit and a smart finish (as shown below).
?A
(X DB GX
(Standard) (Flush-mount)
6)Verify the installation: once the installation had been finished, check the continuity of
the earth circuit and carry out all electrical safety testing provided for by current regulations.
Protect and fix the cables in order to prevent accidental pulling of the cable from
disconnecting it from the connections or coming into contact with hot parts with a
temperature above 50° C or with sharp parts.
5.COMBINING FRIDGE/FREEZER COMPARTMENTS
Open the lid at a 75°C angle and pull it out, and then pull out the divider horizontally.
Divider
