BÖWE P18 - Rear View of the Machine

9
P12 /P15 /P18

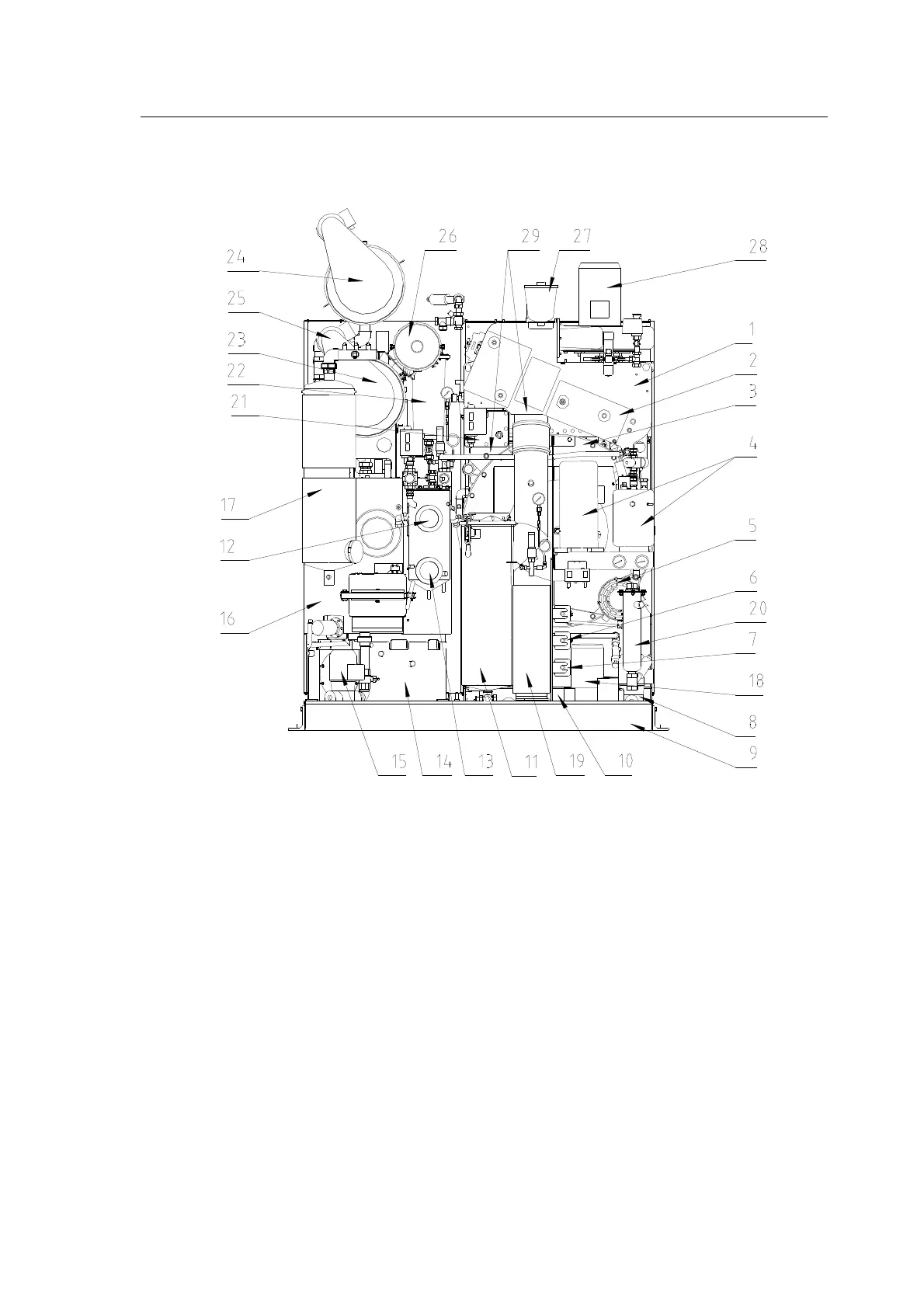

3. View of the Machine
3.2. Rear View of the Machine
Crossline
707770-02-0
1 Air shaft 16 Still
2 Cooling register 17 Slimsorba carbon container *
3 Cage housing with cage 18 Slimsorba fan *
4 Refrigeration unit 19 Slimsorba electric steam generator *
5 Cage drive 20 Sovent cooler *
6 Dosing unit 21 Heater battery
7 Sprayer * 22 Condenser
8 Solvent pump 23 Economy filter 1
9 Safety trough 24 Economy filter 2 *
10 Tanks 1+2 25 Filter drive
11 Button trap with lint filter 26 Cartridge adsorption filter *
12 Water separator 27 Venting and aeration filter
13 Safety separator * 28 Fan
14 Tank 3 29 Air shaft flaps *
15 Pump for still rake out system *
* Option
