48
P12 /P15 /P18
7. Functional Units 7.
7.17. Water Separator With Safety Separator
7.17
The safety separator is integrated in the water separator. The water phase from the water
separator flows continually to the safety separator. The solvent runs to the clean tank. The
safety separator is protected against overfilling with a sensor. The process water from the
safety separator is automatically polled after each cycle by a sensor and drained into the
process water tank.
Rinsing and pumping out with program P54 semi-automatically cleans the water separator.
707769-09-0

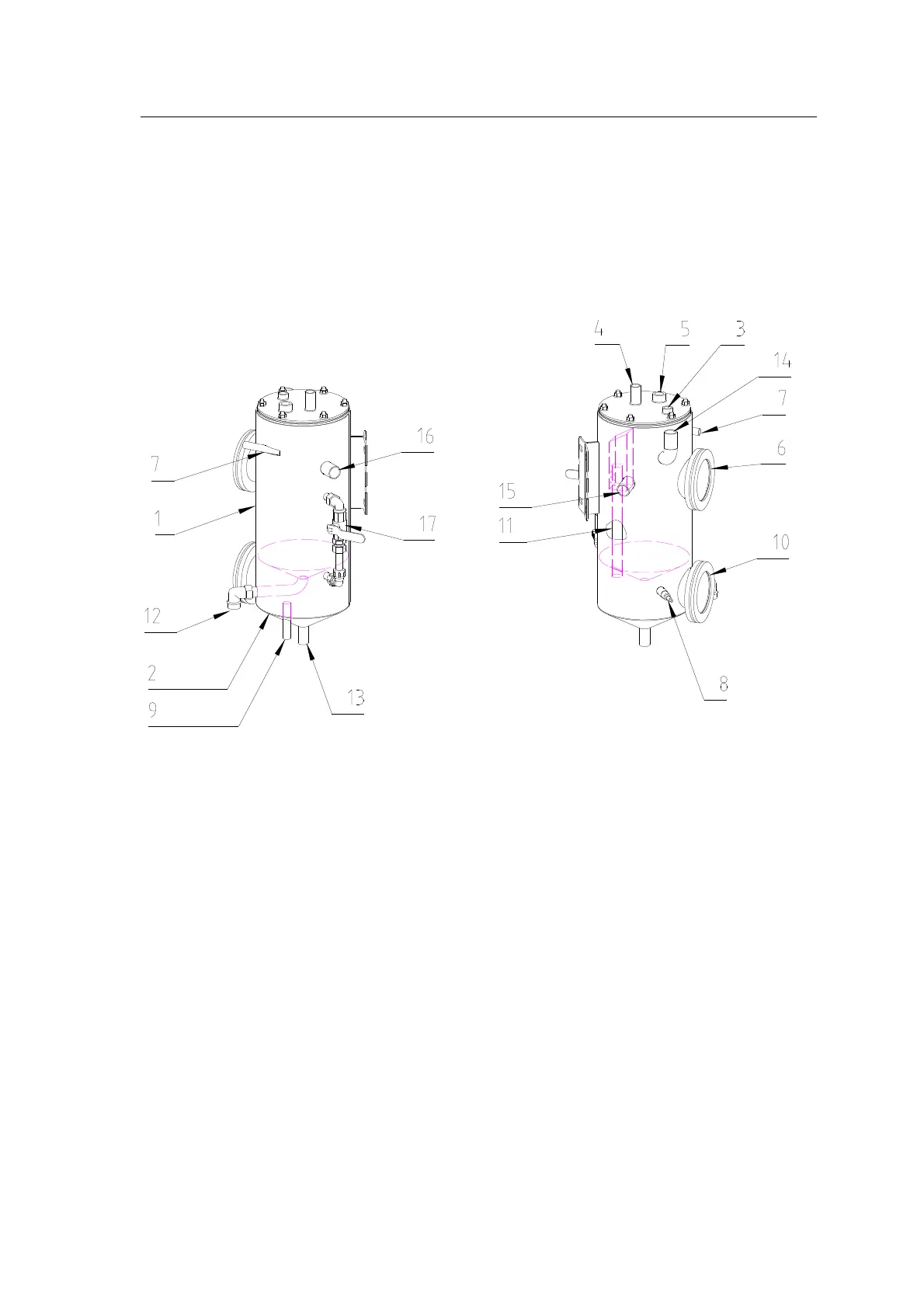

1 Water separator 10 Sight-glass, safety separator
2 Safety separator (integrated) 11 Water overflow
3 Ventilation and aeration atmospheres 12 Drain, water separator
4 Tank aeration 13 Drain, safety separator
5 Aeration for filling machine 14 Distillation inlet
6 Sight-glass, water separator 15 Perc overflow to clean tank
7 Connection, rinsing with pump 16 Drying inlet
8 Sensor for process water 17 Drain, water phase from water separator
9 Drain, process water
