10. Operating and Monitoring Systems 10.
Crossline
707769-16-A

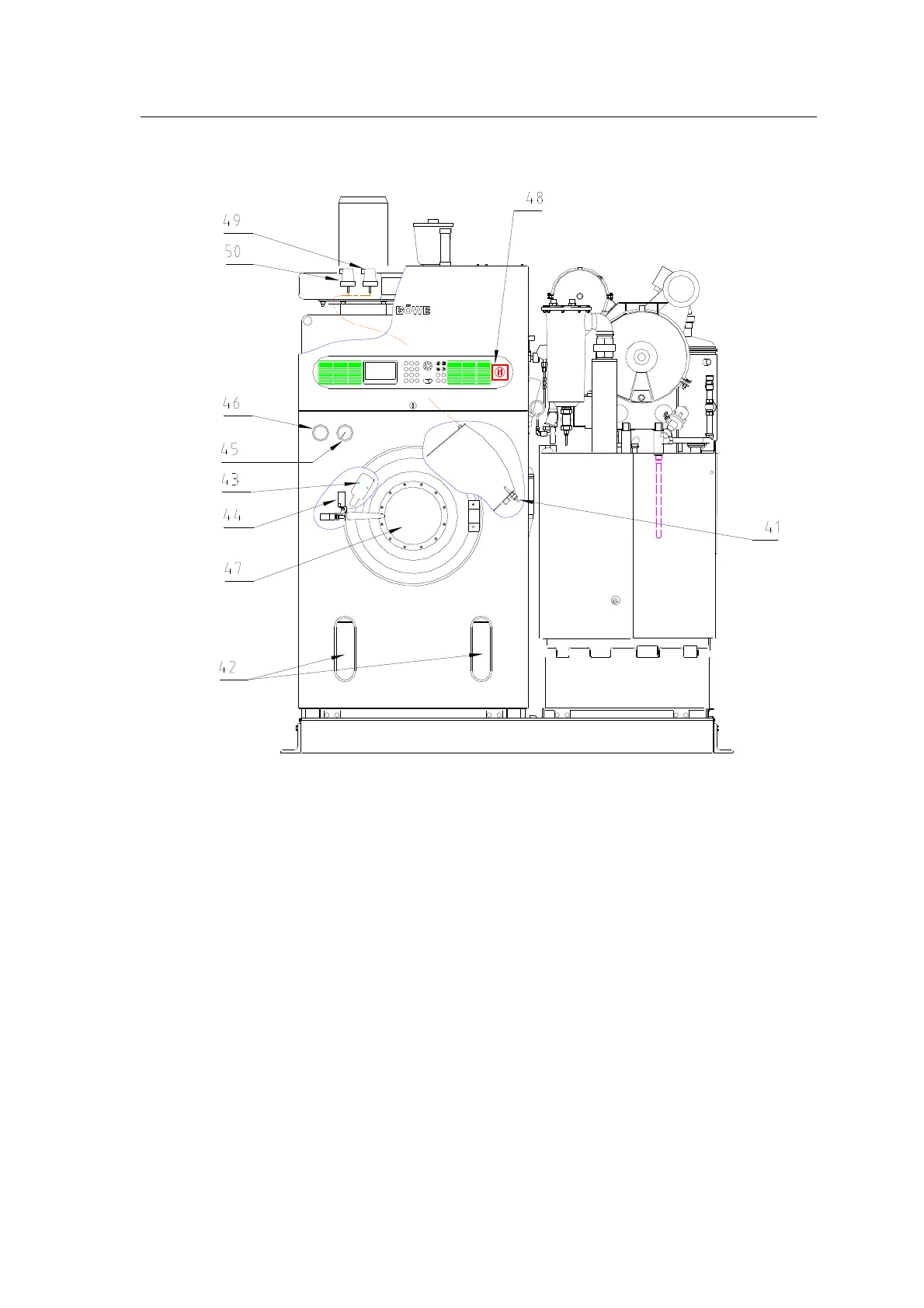

41 Thermal sensor, cage housing inlet (T 2)
42 Sight-glasses, tanks 1 + 2
43 Limit switch, loading door
44 Limit switch, loading door locking
45 Filter pressure gauge, Economy filter 1
46 Sight-glass, filter circuit
47 Loading door window
48 Main switch
49 0-bar (0 psi) switch
50 0.1-bar (1.4 psi) switch
