11. Maintenance 11.
707769-25-0

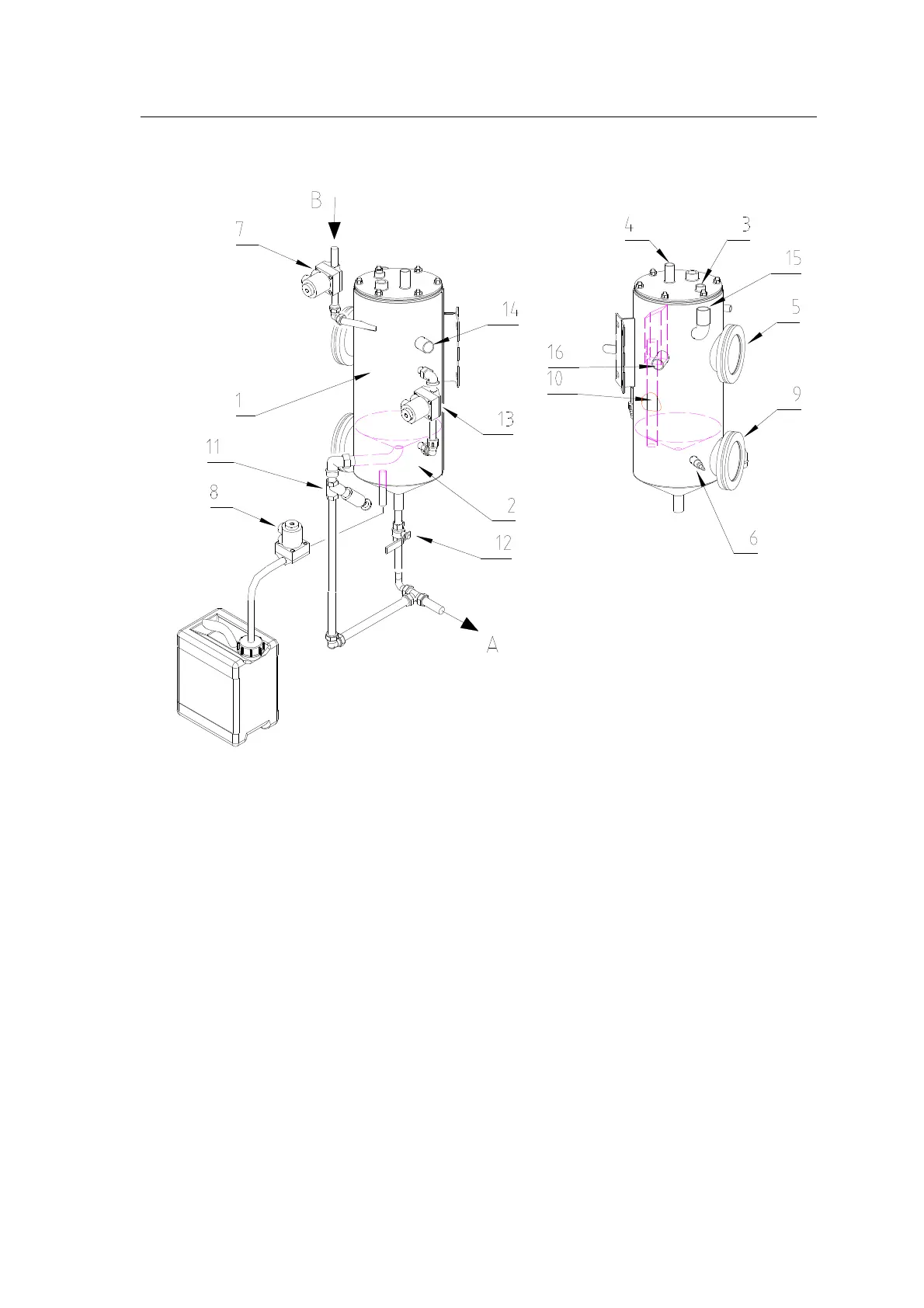

1 Water separator 10 Water overflow
2 Safety separator (integrated) 11 Drain, water separator
3 Ventilation and aeration atmospheres 12 Drain, safety separator
4 Aeration, tank compensation
5 Sight-glass, water separator
13 Draining, water phase from water
separator
6 Sensor for process water 14 Inlet, drying
7 Rinsing, water separator 15 Distillation inlet
8 Drain, water phase from safety separator 16 Perc overflow to clean tank
9 Sight-glass, safety separator A – Pumping to distillation
B – Pump line from clean tank
