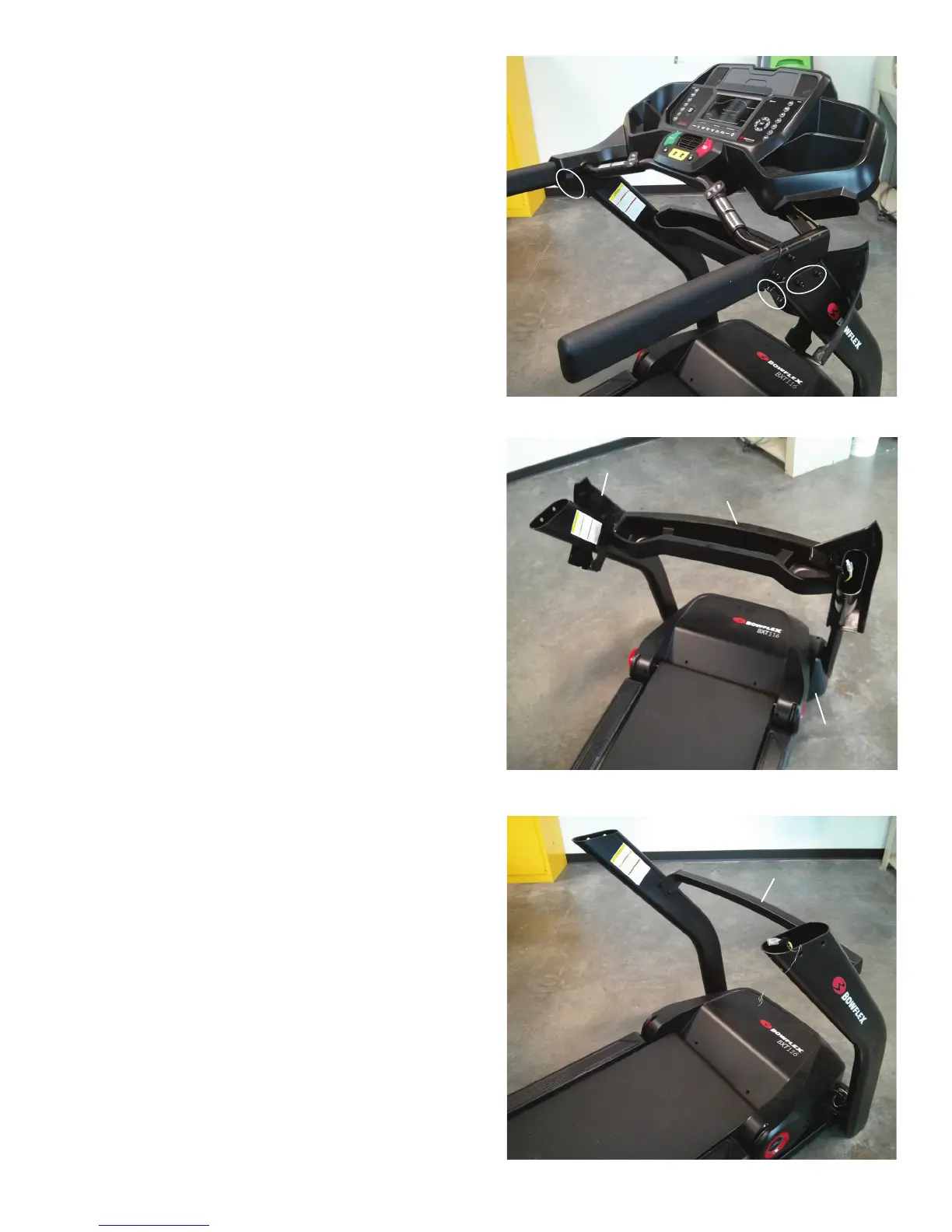

7.Usinga6mmhexwrench,removethe8screwsthatsecuretheCon-
sole Assembly from the Right and Left Uprights.
Note: To assist with re-assembly, be sure to note that the curved washers
are used facing the rear of the machine.
8. Fully remove the Console and Handlebar Assembly from the Uprights.
9. Remove the Lower Junction Covers from the Uprights.
10. Remove the Crossbar Tray from the Crossbar.
11. Remove the Right Base Shroud from the Base Assembly.
12.Usinga6mmhexwrench,removethe4screwsfromtheCrossbar.
Be prepared to support the Crossbar when the hardware is removed.
do not raise the deck
Crossbar Tray
Lower Junction Cover
Right Base Shroud
Crossbar
