118

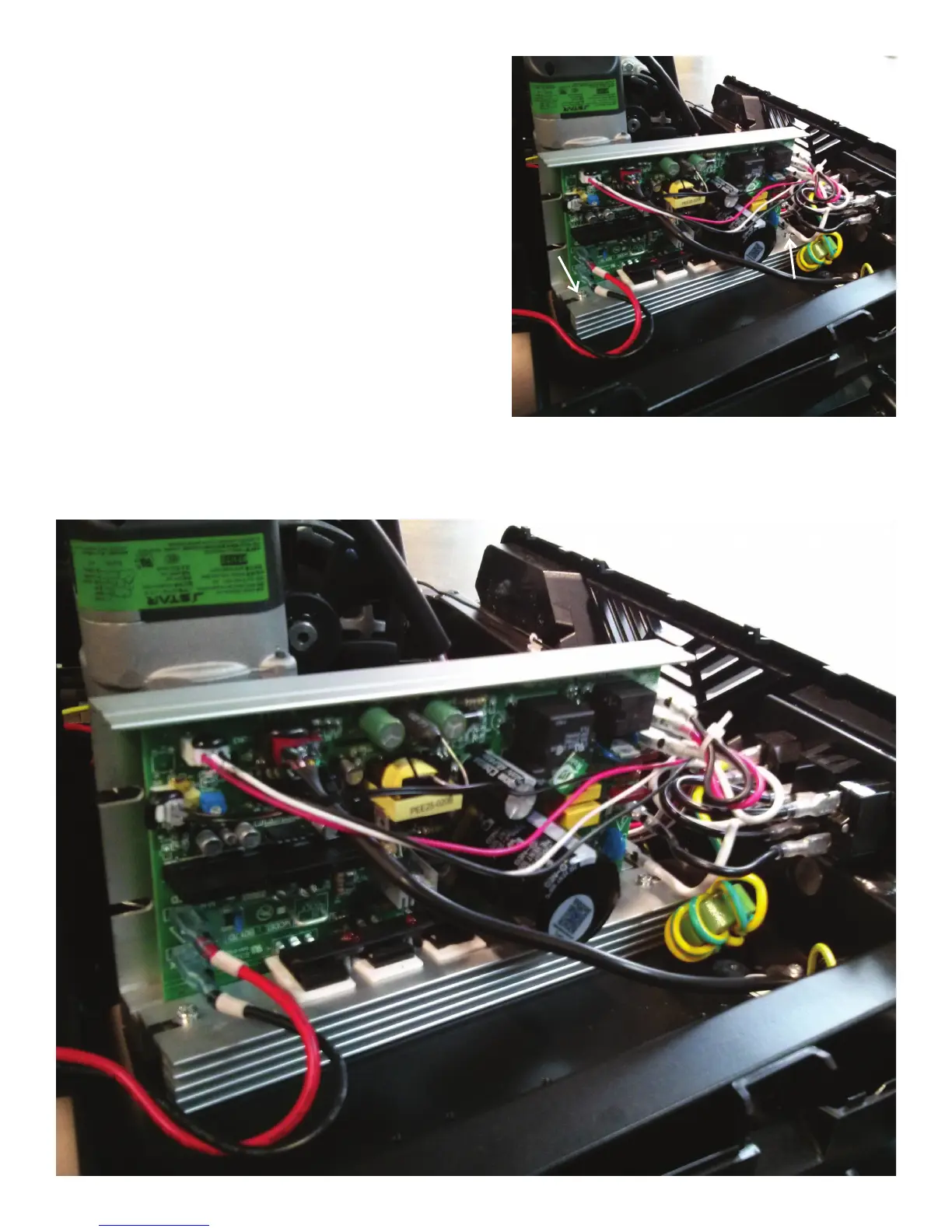

8. Remove the connectors from the Motor Control Board after noting their
locations.
Note: Be sure to note where all cables attach for re-assembly.
9. Using a #2 Phillips screwdriver, remove the 2 indicated screws that
attach the Motor Control Board (MCB) to the Frame.
10. Remove the old Motor Control Board, and install the new Motor Con-
trol Board. Connect all the cables to the MCB in their proper locations. Be
sure not to crimp any cables.
To Next Page
