54

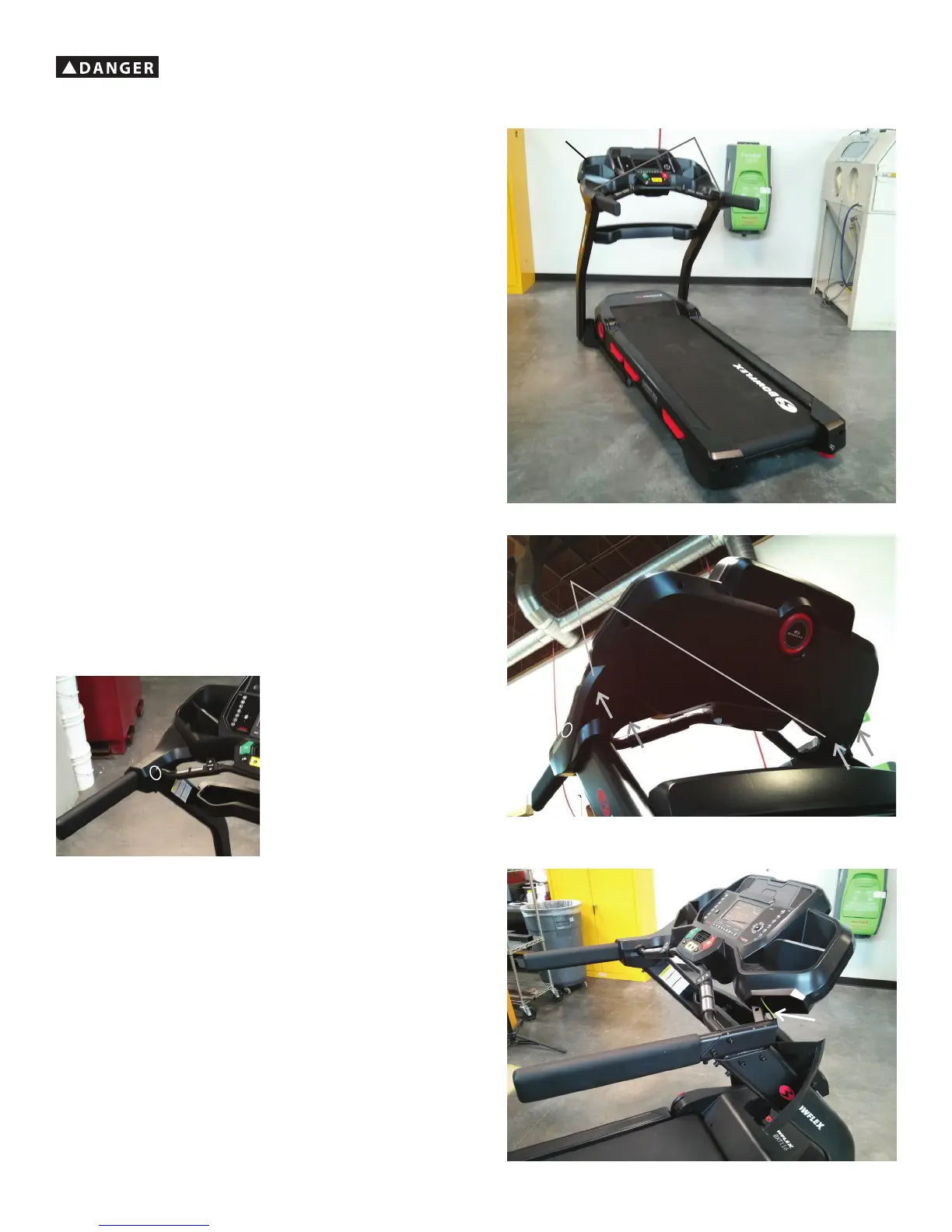

1. Unplug the power cord from the machine and wait 5 minutes. Place the
power cord in a secure location.
2. Using a standard screwdriver, gently lift and release the Junction Cover
End Caps from the Console Assembly.
3. Remove the Junction Cover End Caps from the Console Assembly.
4. Using a #2 Phillips screwdriver, remove the 4 indicated screws (by ar-
rows) from Lower Junction Covers.
5. Gently release the snaps (indicated by ovals, two on each side) that
secure the Upper and Lower Junction Covers and remove the Upper
Junction Covers.
6. Gently pull out the Input/Output (I/O) and Grounding Cables from the
Right Upright, and disconnect them. Do not allow the Cables to fall into
the Right Upright. Secure them with A Zip-Tie, rubber band or piece of
wire.
Note: Do not crimp the Cables.
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from
the wall outlet and wait 5 minutes before cleaning, maintaining or repairing this machine. Place the power cord in
a secure location.
Console
Assembly
Junction Cover End Caps
Lower Junction
Covers
To Next Page
