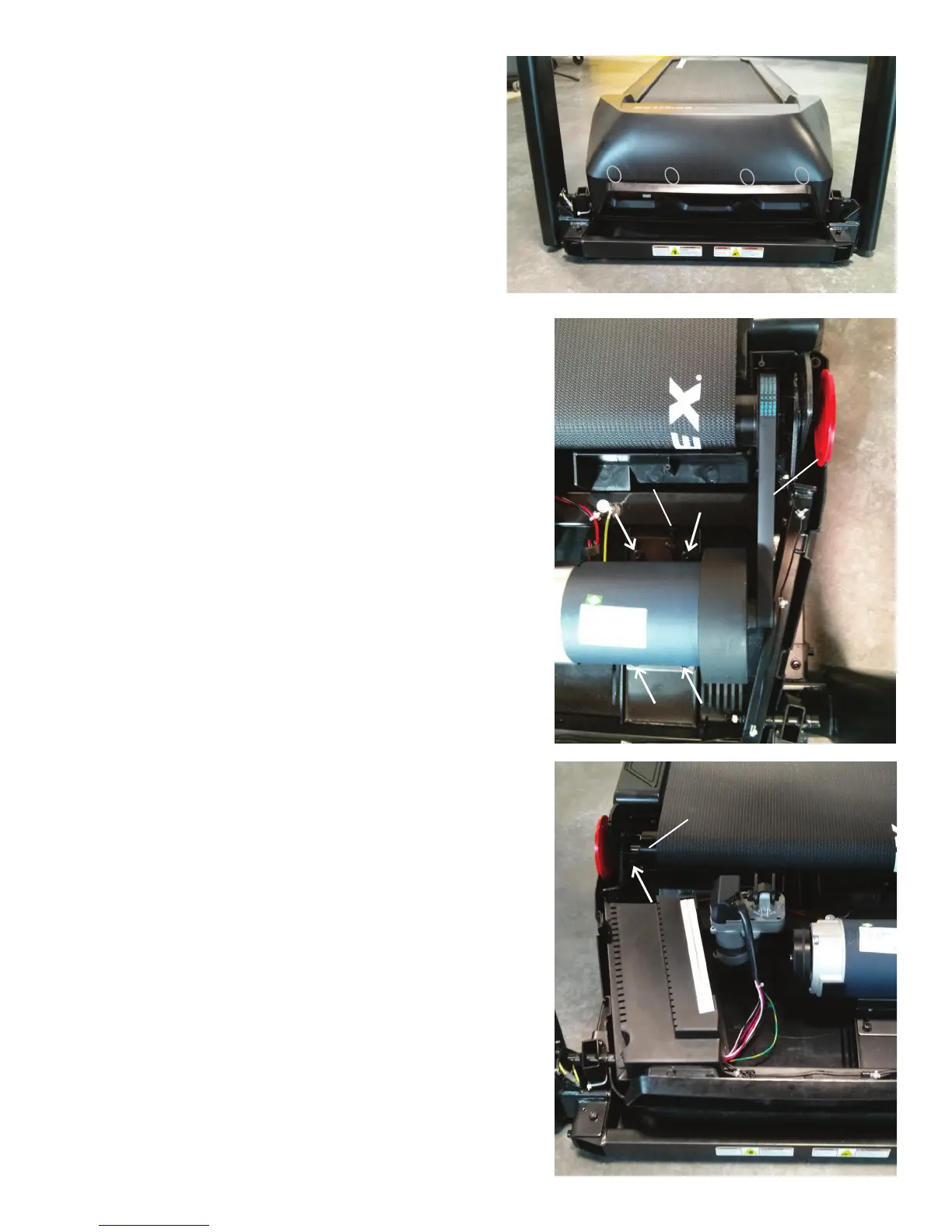

6. Gently release the front snaps (indicated by ovals) that secure the
Motor Cover and pivot it back toward the walking belt until it releases.
Remove from the machine.
7.Usinga6mmhexwrench,loosentheindicatedscrews(byarrow)on
the Motor Mount.
8. Using a 13mm Open Ended Wrench, rotate the Belt Tensioner Screw
enough to loosen the Drive Belt.
Note: To assist with reassembly, be sure to record the number of threads
exposedbeforeloosening.
9.Usinga6mmhexwrench,removetheindicatedscrewfromtheFront
Roller.
Motor
Drive Belt
Front Roller
Belt Tensioner Screw
