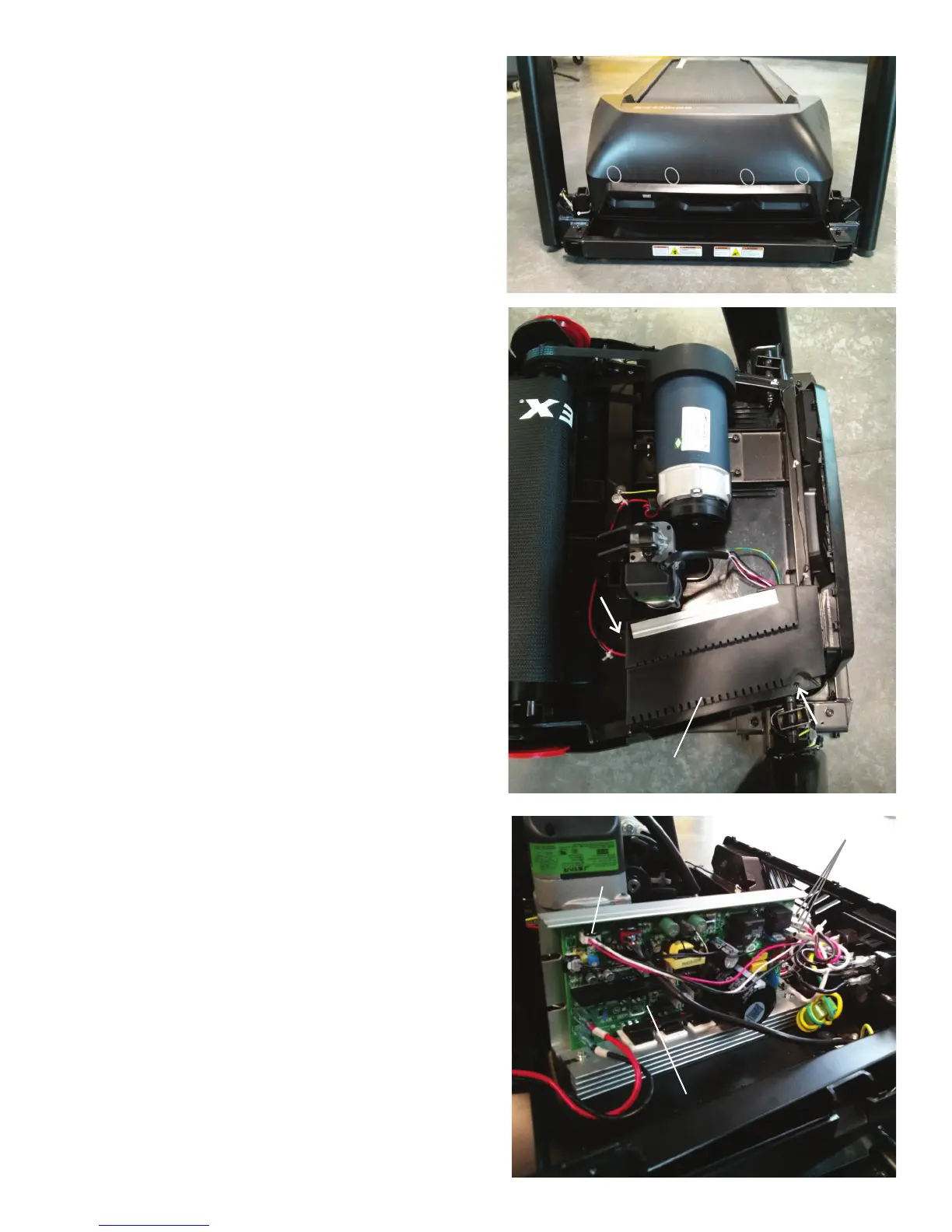

6. Gently release the front snaps (indicated by ovals) that secure the
Motor Cover and pivot it back toward the walking belt until it releases.
Remove from the machine.
7. Using a #2 Phillips screwdriver, remove the 2 indicated screws from
the Motor Control Board Cover. Lift and remove the Motor Control Board
Cover.
8. Remove the connectors for the Incline Motor Potentiometer and the
Incline Motor from the Motor Control Board after noting their locations
Note: Be sure to note where all cables attach for re-assembly.
Motor Control Board Cover
Motor Control Board (MCB)
Incline Motor Potentiometer Cables
Incline Motor Cables
