Bowflex BXT116 - Page 15

Assembly / Owner’s Manual
15
3
6
A
D
C
6mm
X4
4
7
X2
6mm
A
C
E
5. Fully Tighten All Hardware from Previous Steps
Note: Do not crimp the Cables.

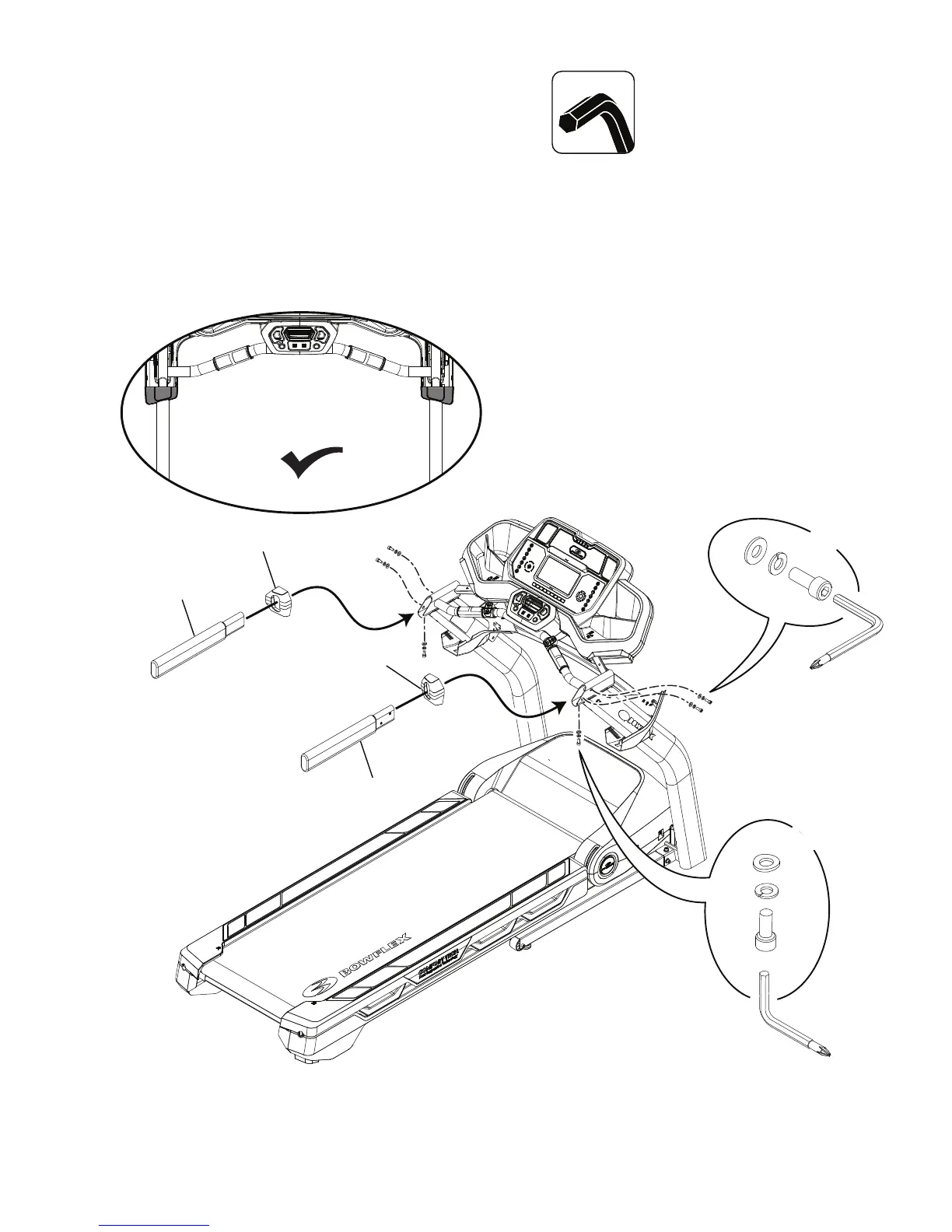

6. Connect the Cables through the Junction Cover End Caps and Attach the Handlebars to the Frame
Assembly
Note: Do not crimp the Cables. A mark has been applied to all right (“ R ”) and left (“ L ”) parts to assist with assembly.
