Assembly / Owner’s Manual
9
Item Qty Description Item Qty Description
1 1 Console Assembly 12 1 Upright, Right
2 1 Upper Junction Cover, Left 13 1 Base Shroud, Right
3 2 Handlebar Assembly, Left 14 1 Base Assembly
4 1 Junction Cover End Cap, Left 15 1 Upright, Left
5 1 Lower Junction Cover, Left 16 1 Base Shroud, Left
6 1 Handlebar Assembly, Right 17 1 Power Cord
7 1 Junction Cover End Cap, Right 18 1 Safety Key
8 1 Lower Junction Cover, Right 19 1 Document Kit / Hardware Card
9 1 Upper Junction Cover, Right 20 1 Heart Rate Strap
10 1 Tray 21 1 Media Cable
11 1 Crossbar
DO NOT CUT the Shipping Strap ( * ) or Shipping Zip-Tie ( ** ) on the Treadle Assembly until instructed.
When moving the Deck Assembly, be sure to grasp the sides of it. Do not grasp the Walking Deck Release
Button. Pressing the Walking Deck Release Button releases the locking mechanism on the hydraulic lift.

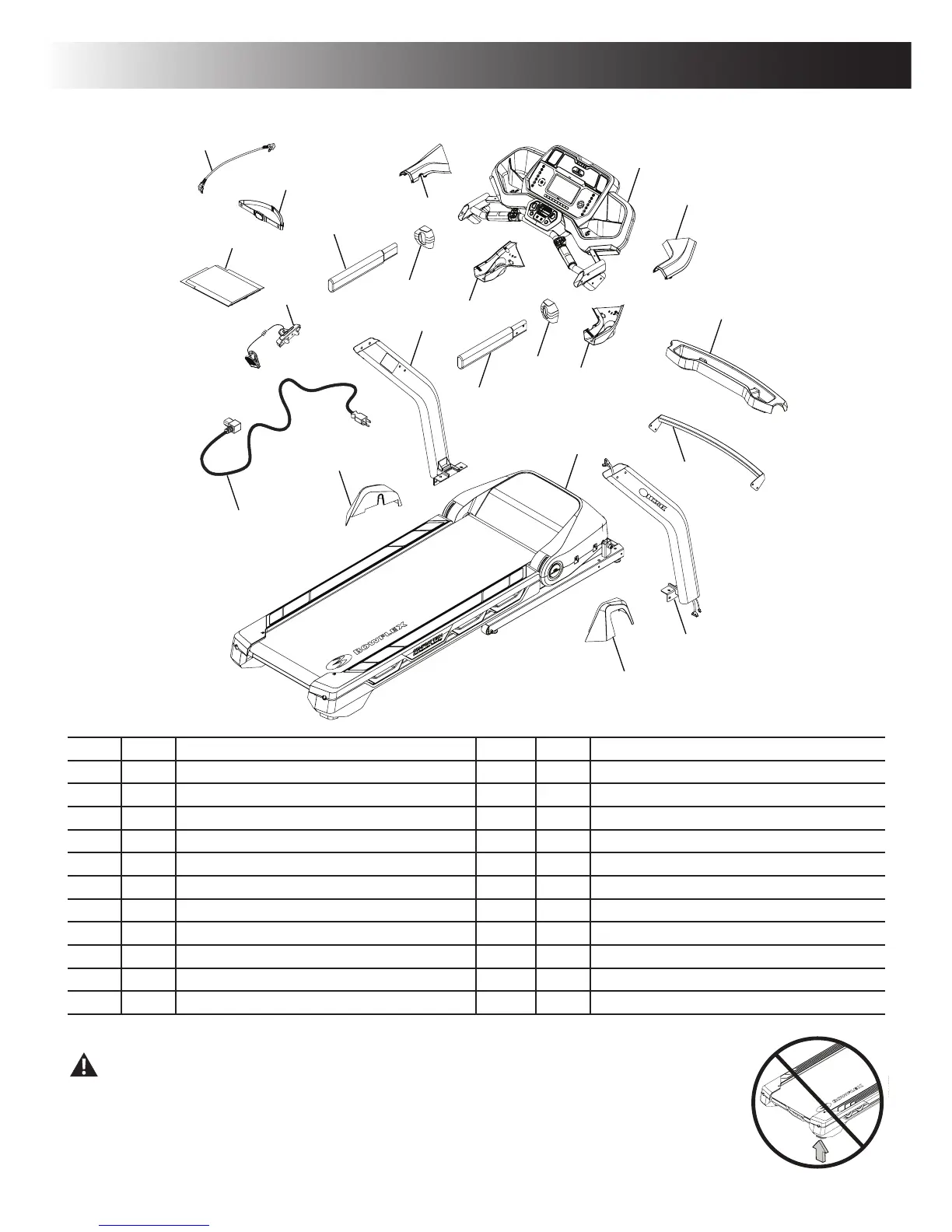

Parts
1
18
9
5
2
3
8
10
14
11
13
12
17
16
15
6
19
20
7
4
21
