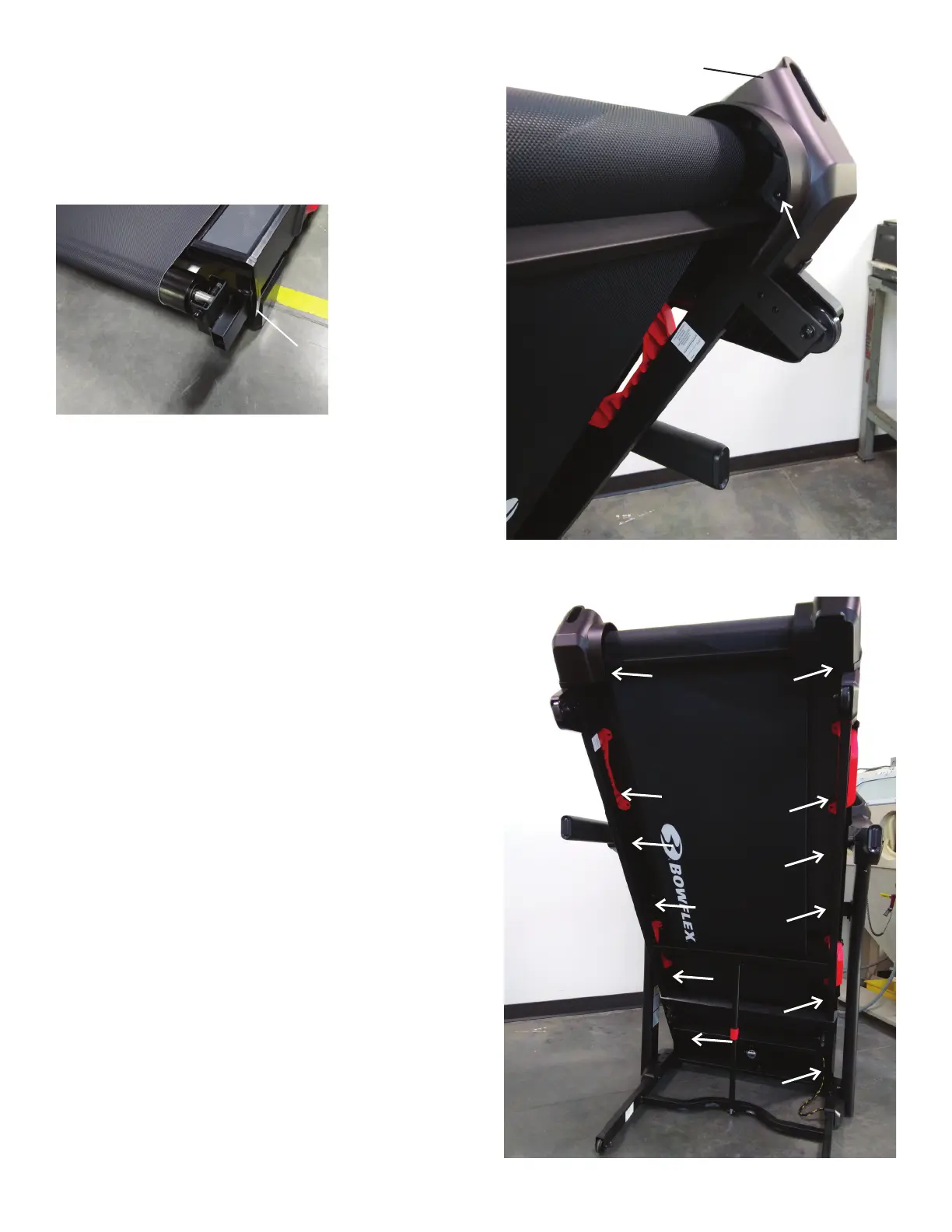

6. Using a #2 Phillips screwdriver, remove the indicated screw (with arrow)
from each the Rear Roller Covers.
7. Remove the Rear Roller Covers and Endcap Base Shrouds.
Note: To assist with reassembly, be sure to notice how the Endcap Base
Shroud is secured by the Rear Roller Cover.
8. Using a #2 Phillips screwdriver, remove the 12 indicated screws from
below the Walking Deck that attach the Side Rails.
9. Remove the Side Rails from the Walking Decks.
Rear Roller
Cover
Endcap Base
Shroud
To Next Page
