Bowflex BXT8J - Page 114

114

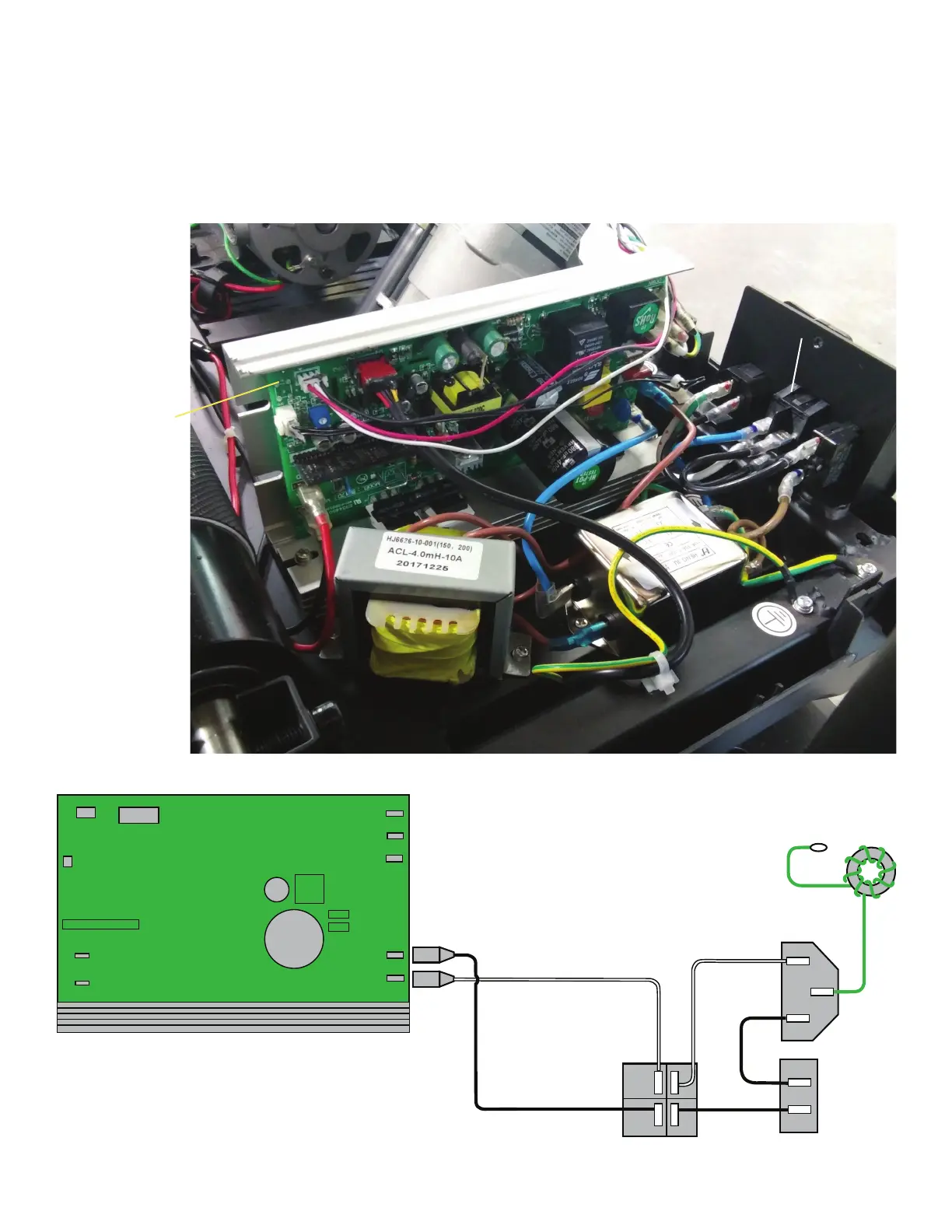

4. Release the Securing Clips from the Rocker Switch and remove it from
the Frame.
5. Remove the connectors and attach them to the new Rocker Switch. Be
sure to attach them in the same locations on the new Rocker Switch.
RED: positive
BLACK: negative
DOWN
UP
COM
ACL
ACN
To Incline
Motor
To Lower
I/O Cable
To Speed Sensor
2 1
3 4
N
G
L
Circuit Breaker
Power Inlet
Power Switch
Motor Control Board
(MCB)
Rocker Switch
