145

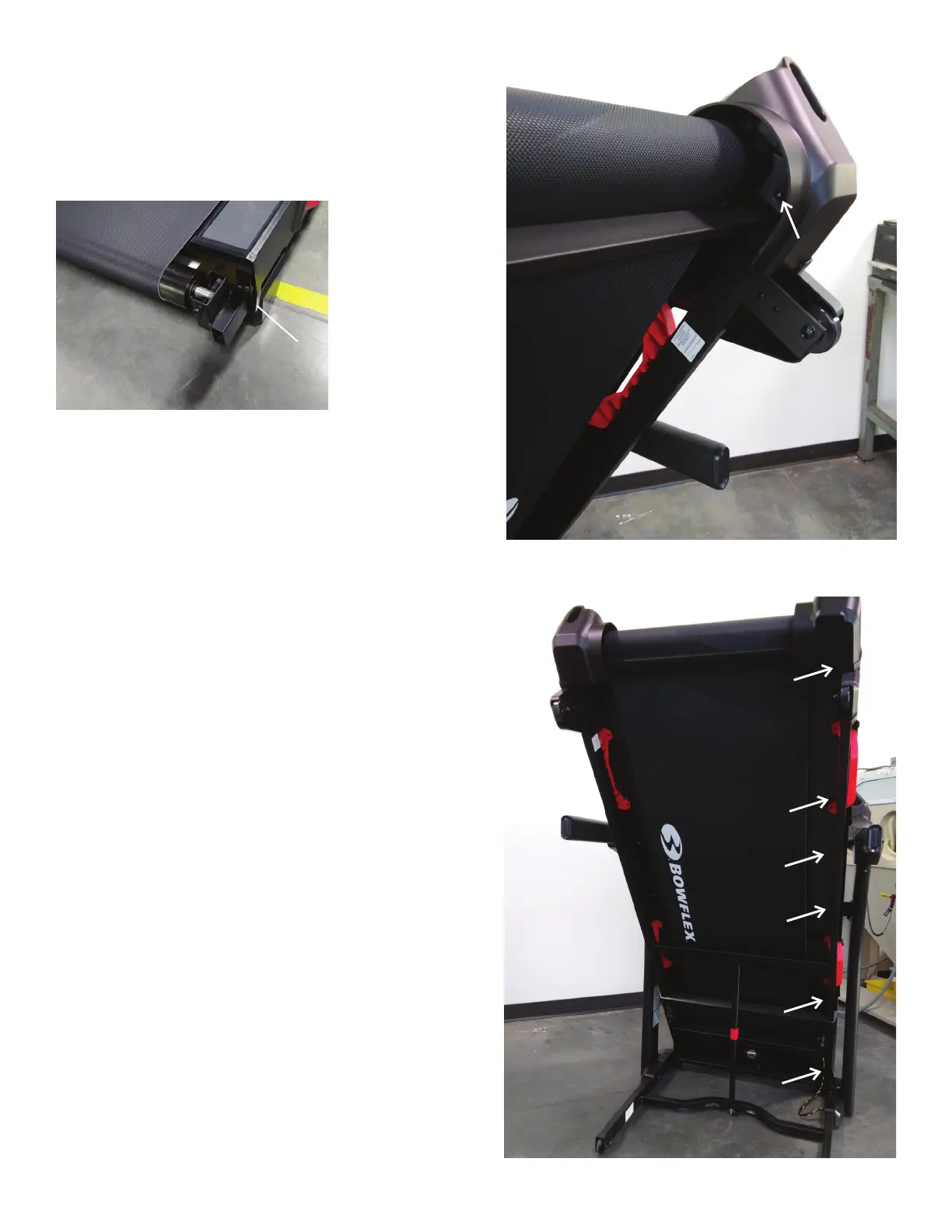

7. Using a #2 Phillips screwdriver, remove the indicated screw (with arrow)
from the Rear Roller Cover.
8. Remove the Rear Roller Covers and Endcap Base Shrouds.
Note: To assist with reassembly, be sure to notice how the Endcap Base
Shroud is secured by the Rear Roller Cover.
9. Using a #2 Phillips screwdriver, remove the 6 indicated screws from
below the Walking Deck that attach the Right Side Rail.
10. Remove the Right Side Rail from the Walking Deck.
Endcap Base
Shroud
To Next Page
