34
4. From the front, remove the Securing Ring from the Circuit Breaker by
rotating it counter-clockwise. Remove the Circuit Breaker from the Frame.
5. Remove the connectors and attach them to the new Circuit Breaker.
6. Insert the new Circuit Breaker into the Frame and install the Securing
Ring.

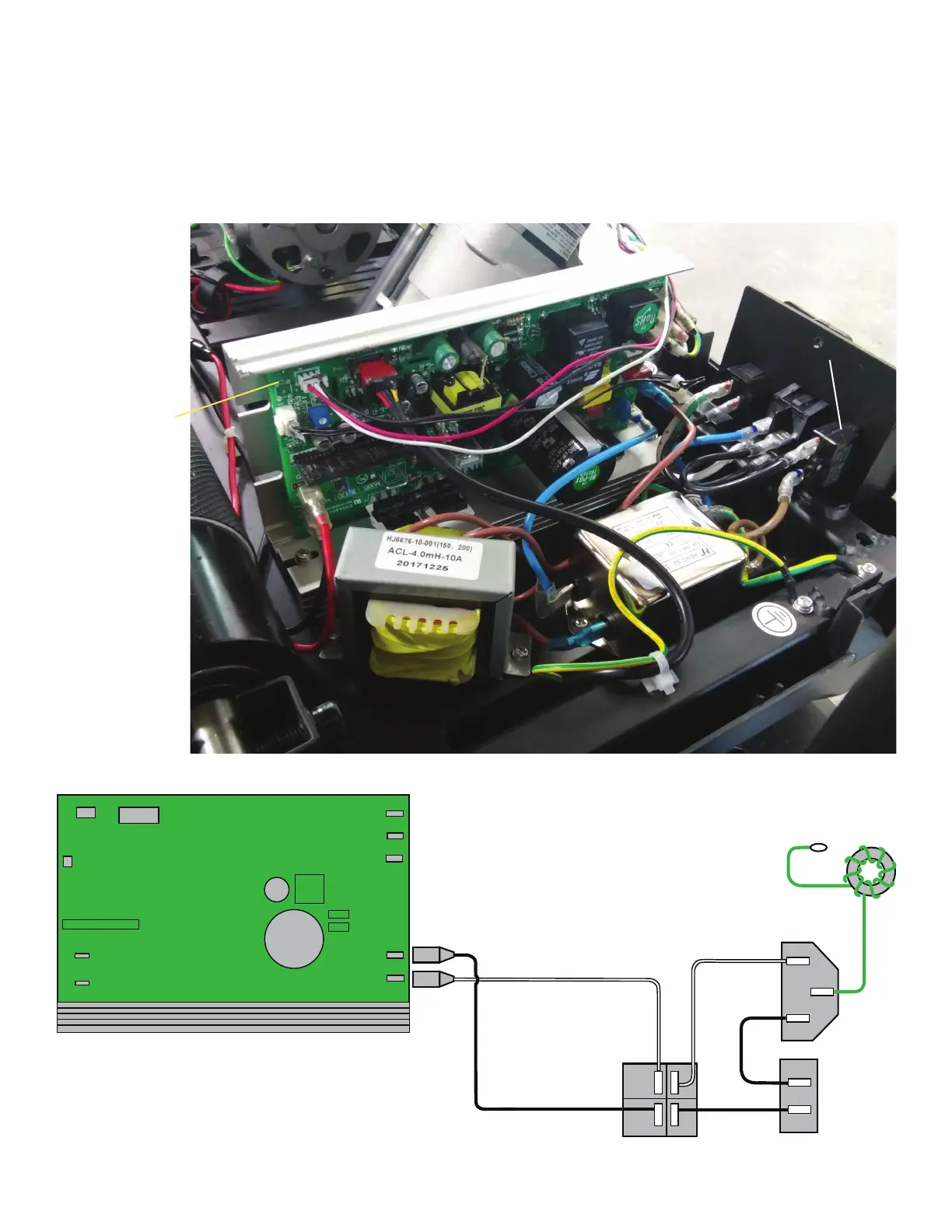

RED: positive
BLACK: negative
DOWN
UP
COM
ACL
ACN
To Incline
Motor
To Lower
I/O Cable
To Speed Sensor
2 1
3 4
N
G
L
Circuit Breaker
Power Inlet
Power Switch
Motor Control Board
(MCB)
Circuit Breaker
