NOTICE: This document provides instructions for the replacement of the Incline Motor Assembly on the Bowex
™
BXT8J / BXT8Ji Treadmills.
If you need assistance, please contact Customer Service (if purchased in US/Canada) or your local distributor (if purchased outside US/Canada). To nd your local dis-
tributor, go to: www.nautilusinternational.com
MCB Cover

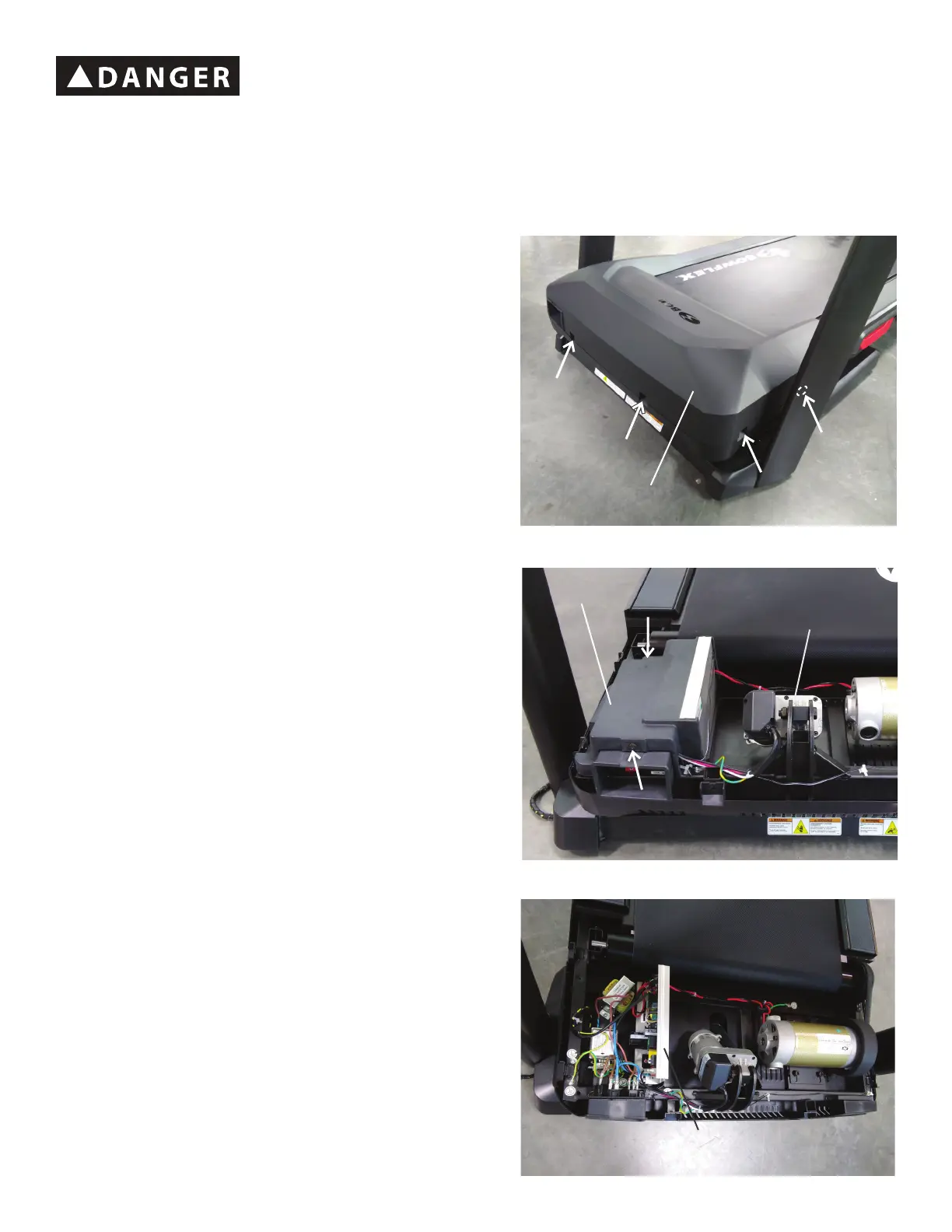

1. Unplug the power cord from the machine and wait 5 minutes. Place the
power cord in a secure location.
2. Using a #2 Phillips screwdriver remove the 4 indicated screws, and two
additional screws on the far side, from the Motor Cover and remove it.
3. Using a #2 Phillips screwdriver remove the 2 indicated screws from the
MCB Cover and remove it.
4. Remove the connectors for the Incline Motor Potentiometer and the
Incline Motor from the Motor Control Board after noting their locations.
Note: Be sure to note where all cables attach for re-assembly.
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power
cord from the wall outlet and wait 5 minutes before cleaning, maintaining or repairing this machine. Place
the power cord in a secure location.
Incline Motor Assembly
Motor Control Board
(MCB)
Motor Cover
