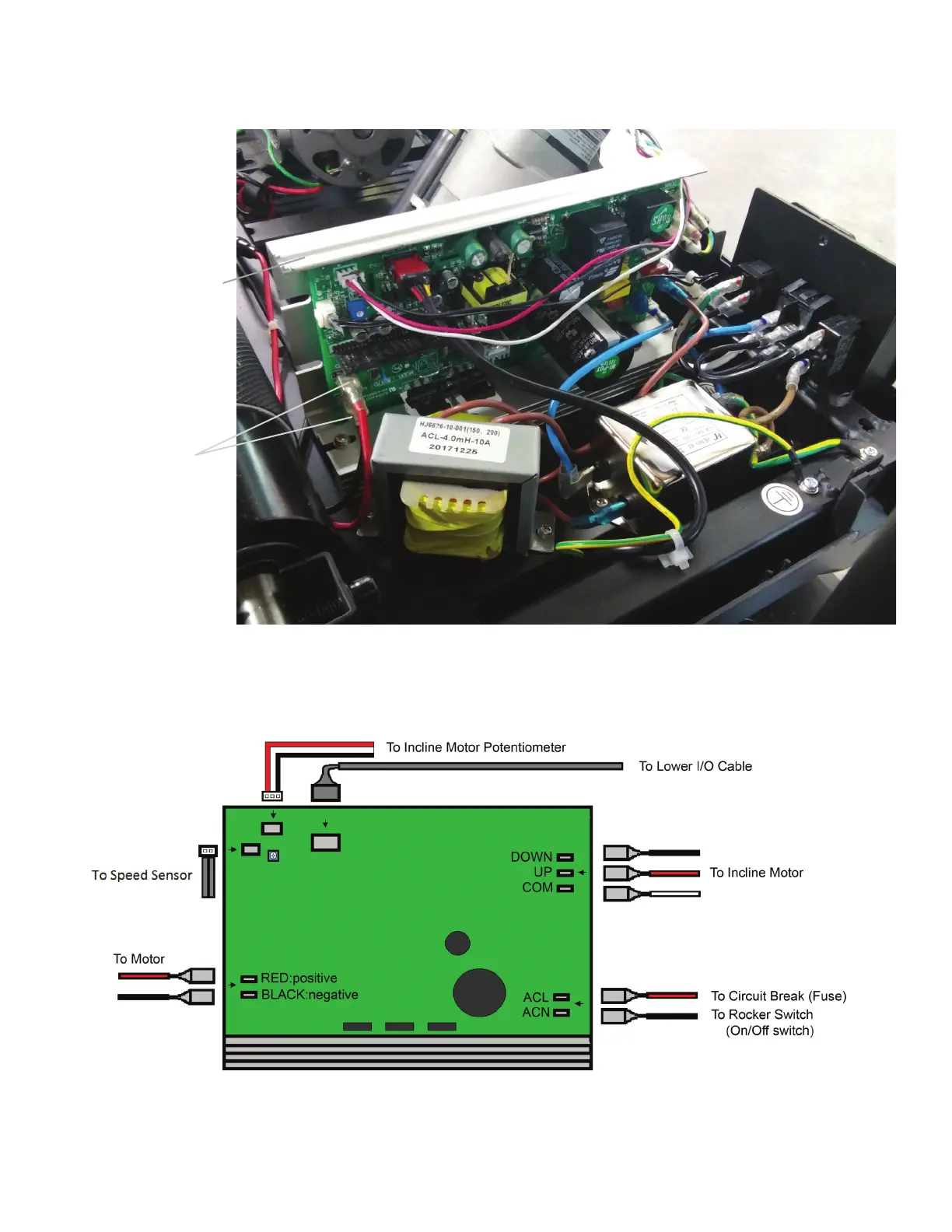

4. Remove the connectors for the Motor from the Motor Control Board
after noting their locations.
Note: Be sure to note where all cables attach for re-assembly.
Note: The above photo shows the BXT8Ji machine, with Choke and Filter included.
Motor Control Board
(MCB)
Motor Connectors
