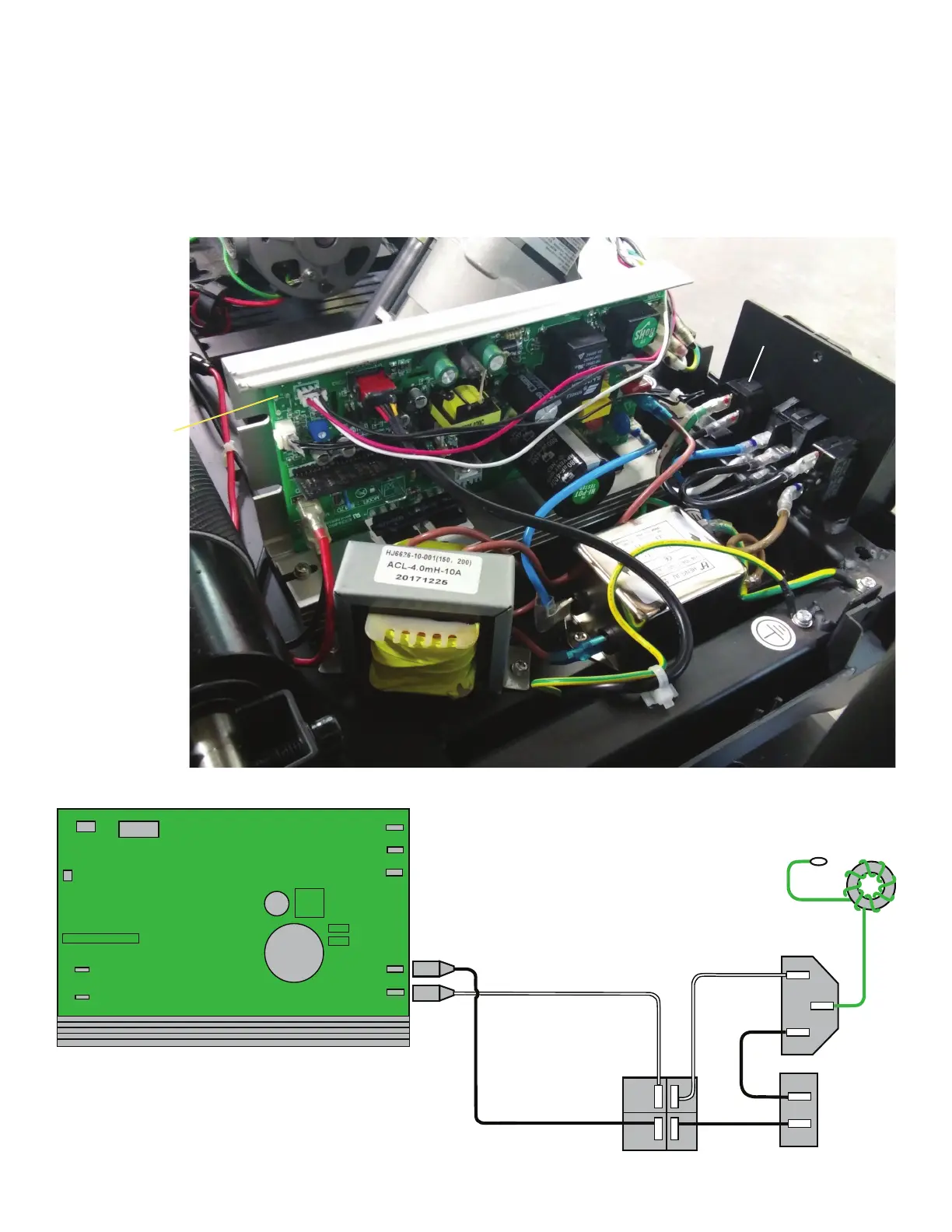

4. Release the Securing Clips from the Power Inlet and remove it from the
Frame.
5. Remove the connectors and attach them to the new Power Inlet. Be
sure to attach them in the same locations on the new Power Inlet.
6. Insert the new Power Inlet into the Frame being sure the Securing Clips
engage.
RED: positive
BLACK: negative
DOWN
UP
COM
ACL
ACN
To Incline
Motor
To Lower
I/O Cable
To Speed Sensor
2 1
3 4
N
G
L
Circuit Breaker
Power Inlet
Power Switch
Motor Control Board
(MCB)
Power Inlet
