A-9
Step 10 - Attach the Leg Extension Pivot Tube
Locate the following items:
• Item #13 - Leg Extension Pivot Tube
• From Step 9 - Main Assembly
• Item #30 - Lock Out Pin
• Item #G - (1) 3/8" X 2 3/4" Button Head Screw
• Item #N - (2) 3/8" Washers
• Item #O - (1) 3/8" Nylock Nut
• Item #Q - (1) Bolt Cover

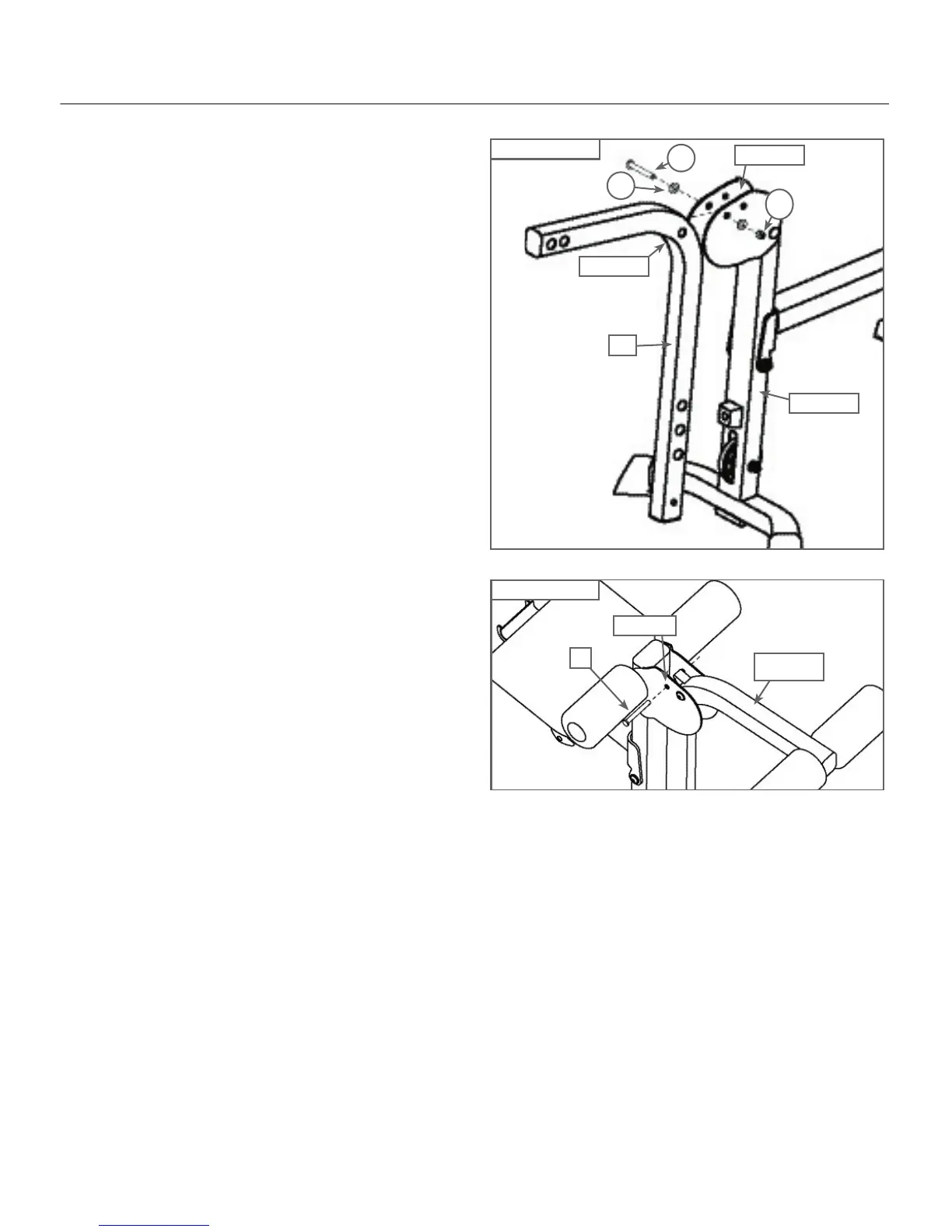

Undo the twist ties from the Pivot Bushings. Align the holes
located on the “curve” of the Leg Extension Pivot Tube (Item #13)
with the holes on the bracket of the Rear Leg, as shown in Figure
10a.
Place (1) 3/8" Washer (Item #N) over the end of (1) 3/8"
X 2 3/4" Button Head Screw (Item #G). Thread the
screw through the aligned holes and bushings and secure
by placing (1) 3/8" Washer and (1) 3/8" Nylock Nut (Item
#O) over the end of the screw, as shown in Figure 10a.
Do not over-tighten hardware from Step 10.
Place (1) Bolt Cover (Item #Q) over the Nylock Nut
installed during Step 10.
Note: When storing the Rail Assembly, insert the Lock
Out Pin (Item #30) through the holes in the Pivot Tube to
temporarily hold the Leg Extension in place while folding the
Rail up (see Figure 10b).
Figure 10a
13
N
O
G
Bracket
Rear Leg
“Curve”
Figure 10b
Holes
Leg
Extension
30
