Bowflex Elite - Page 13

A-11
Assembly Guide
Step 13 - Assemble the Leg Extension Seat
Locate the following items:
• Item #19 - Leg Extension Seat Pad
• Item #21 - Leg Extension Seat Support Tube
• Item #C - (4) 5/16" X 3/4" Button Head Screws
• Item #M - (4) 5/16" Washers
Place the Leg Extension Seat Pad (Item #19) cushion-side
down. Align the holes in the Leg Extension Seat Support
Tube (Item #21) with the holes on the underside of the Seat
Pad.
Place (4) 5/16" Washers (Item #M) over (4) 5/16" X 3/4"
Button Head Screws (Item #C) - one over each screw. Insert
the screws through the aligned holes, and tighten.
Completely tighten hardware installed during Step 13.

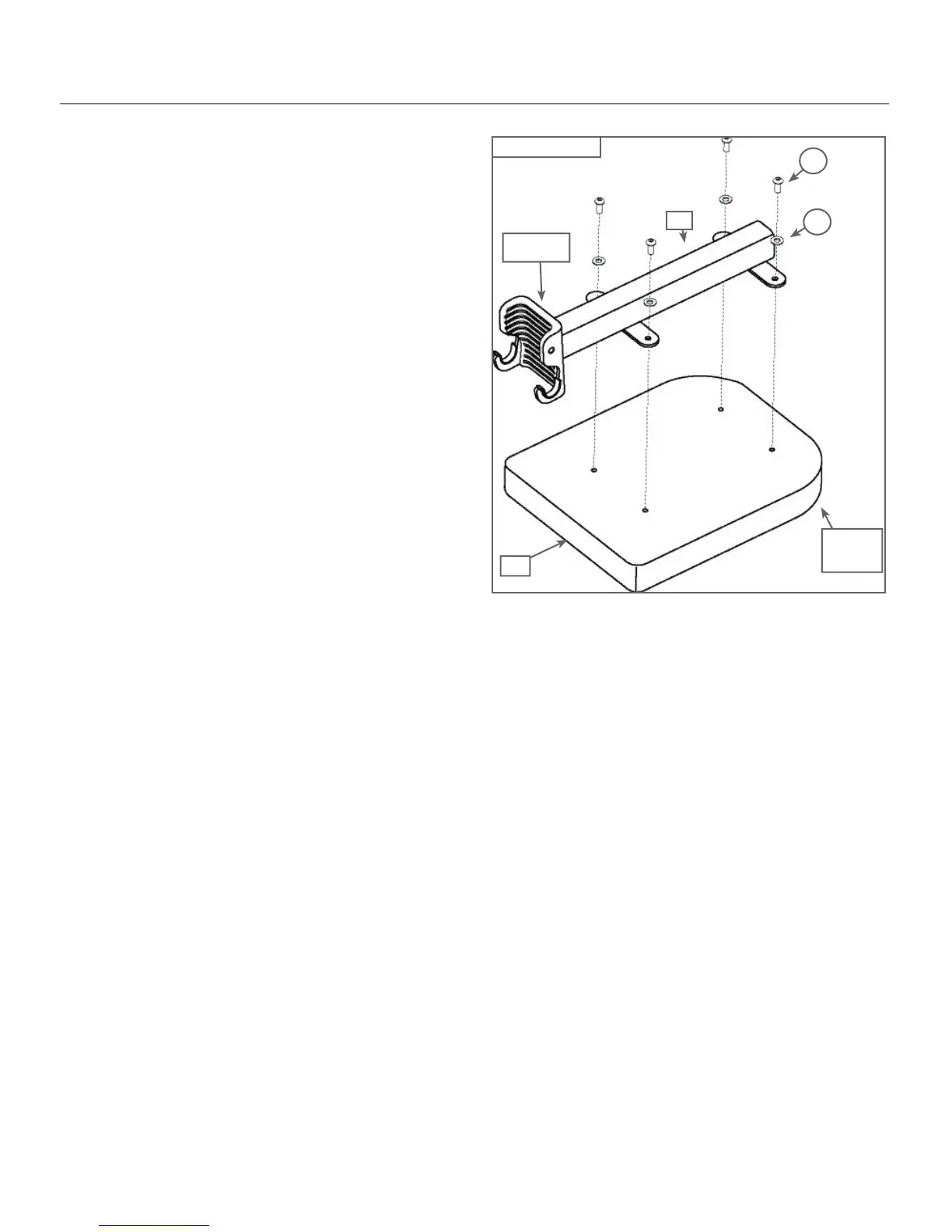

Figure 13
C
21
19
M
Rail
Bracket
Seat
Curved
Edge
