Note: Your machine may not match the images provided exactly.
1. With power supplied to the machine, adjust the resistance to the maxi-
mum setting.
2. Unplug the AC Adapter from the wall outlet and machine.
3. Remove the Right Stabilizer Shroud from the machine (if equipped).

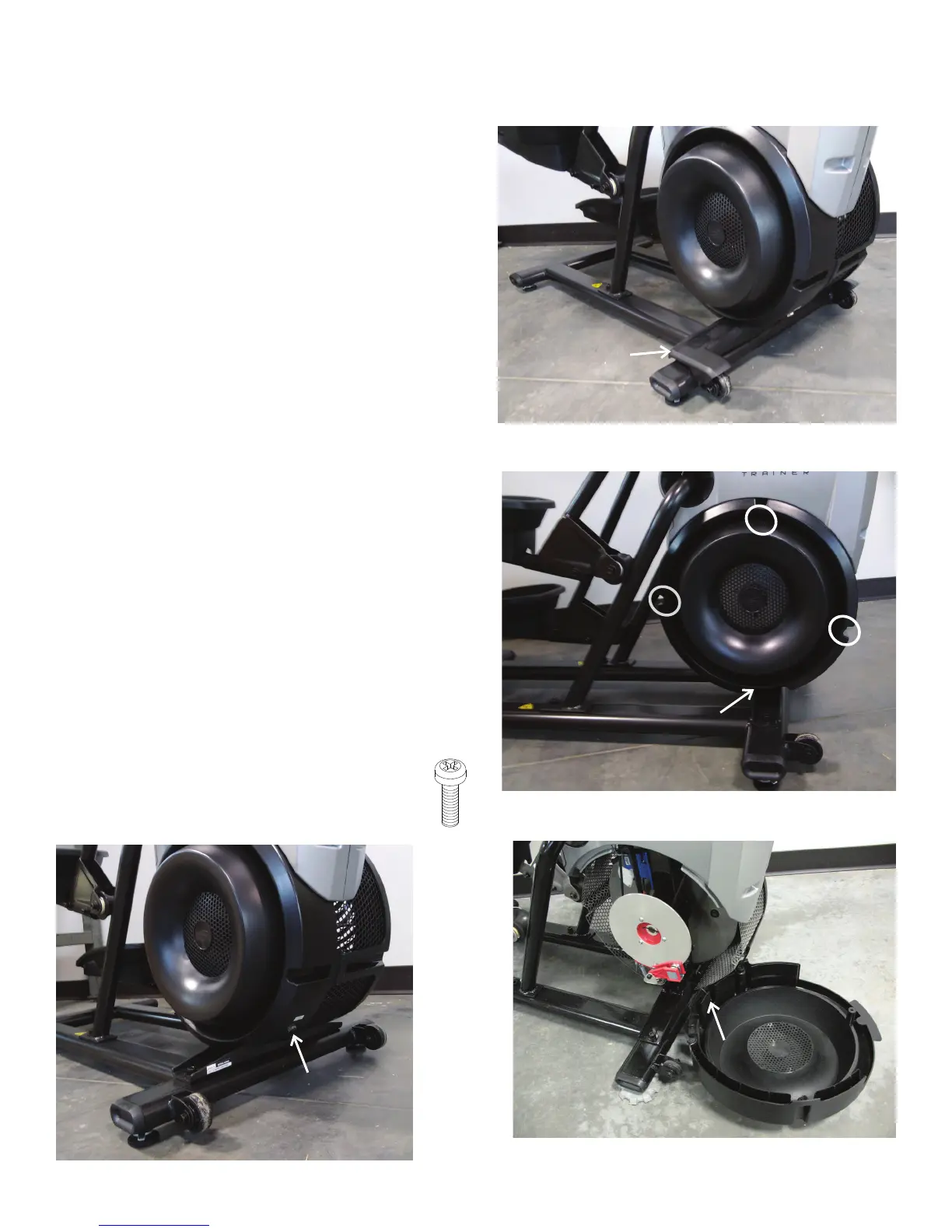

4. Using a #2 Phillips screwdriver, remove the indicated (by ovals) screws
and only loosen the lowest indicated screw (arrow) from the Right Fan
Cover.
Note: Loosen the lowest screw by at least 3 full rotations.
5. The Right Fan Cover has a tab that needs to be pushed upward to clear
the loosened screw. While pushing up on the tab, remove the Right Fan
Cover from the assembly.
Note: The Power Cable is attached to the inside of the Right Fan Cover.
Be sure not to crimp the cable by placing the Right Fan Cover close to the
front of the machine.
To assist with assembly, note that the upper screw is a machine
screw and not a self-tapping screw.
Power Cable
Power Inlet
Right Stabilizer
Shroud
