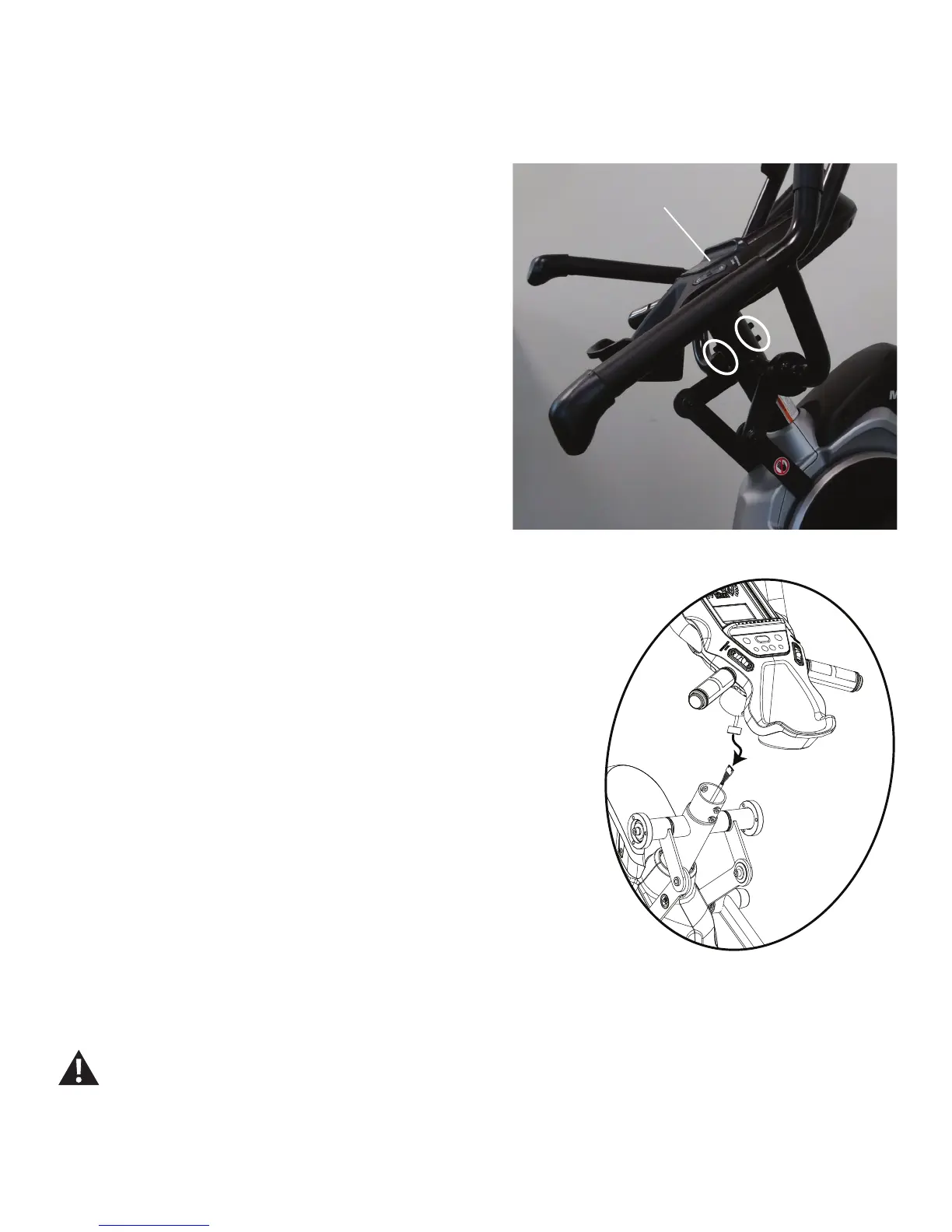

1. Unplug the AC Adapter from the wall outlet and machine.
2. Using a 5mm hex wrench, remove the 4 screws (2 on each side of the
Console Mast) from the Console Assembly.
3. Carefully lift the Console Assembly and expose the Cable Connections.
Note: Do not crimp any of the Console Cables. This step may require two
people.
4. Carefully disconnect the Cables while not allowing them to fall into the
Console Mast.
Note: Do not crimp any of the Console Cables.
5. Installation is the reverse procedure. Be sure not to crimp the Cables.
6. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
Note: Your machine may not match the images provided exactly.
Console Assembly
