Note: Your machine may not match the images provided exactly.

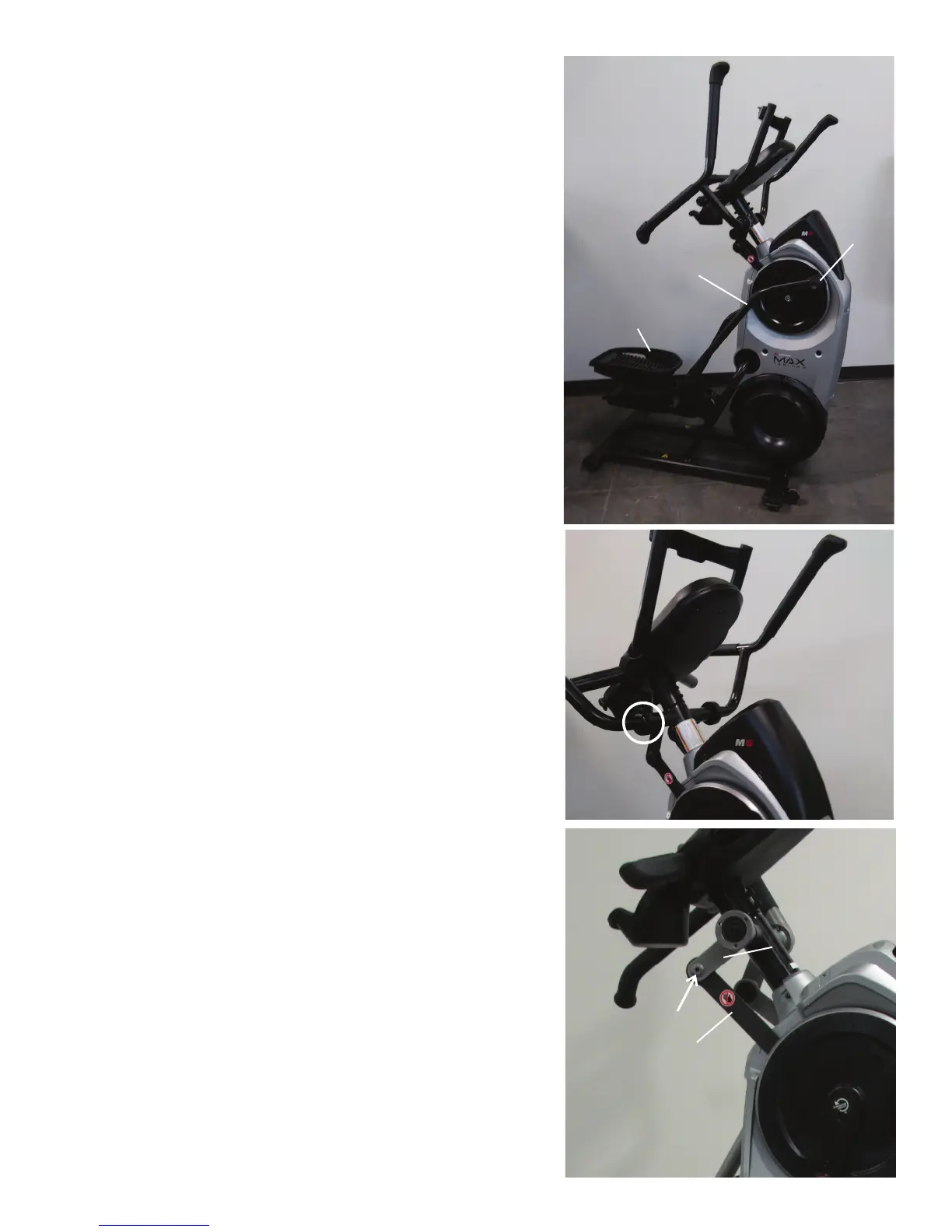

1. From the side with the Crank Arm that needs to be replaced, remove
the indicated Cap.
Note: The following photos show the removal of the Right Crank Arm.
2. Using a 6mm hex wrench, remove the hardware exposed from below
the Cap.
3. Lift the Foot Pedal and slide the Leg Assembly straight off the ma-
chine.Besuretopullstraightout,ortheLegAssemblymaybedifcultto
remove.
Note: A rubber mallet may be necessary if the Leg Assembly will not slide
off.
4. Using a 5mm hex wrench, remove the indicated hardware from the
Upper Handlebar.
Note: Be aware that the Upper Handlebar must be supported when
removing the hardware.
5. Place a rag or protective material below the Connector Arm to protect
the Shrouds from potential scratches from the Connector Arms.
6. Using a 6mm hex wrench, remove the hardware that connects the Con-
nector Arm and the Pivot Arm.
Note: The Connector Arm will pivot downward if not lowered slowly onto
the rag protecting the Shroud.
Pivot Arm
Connector Arm
Cap
Leg Assembly
Foot Pedal
To Next Page
