59

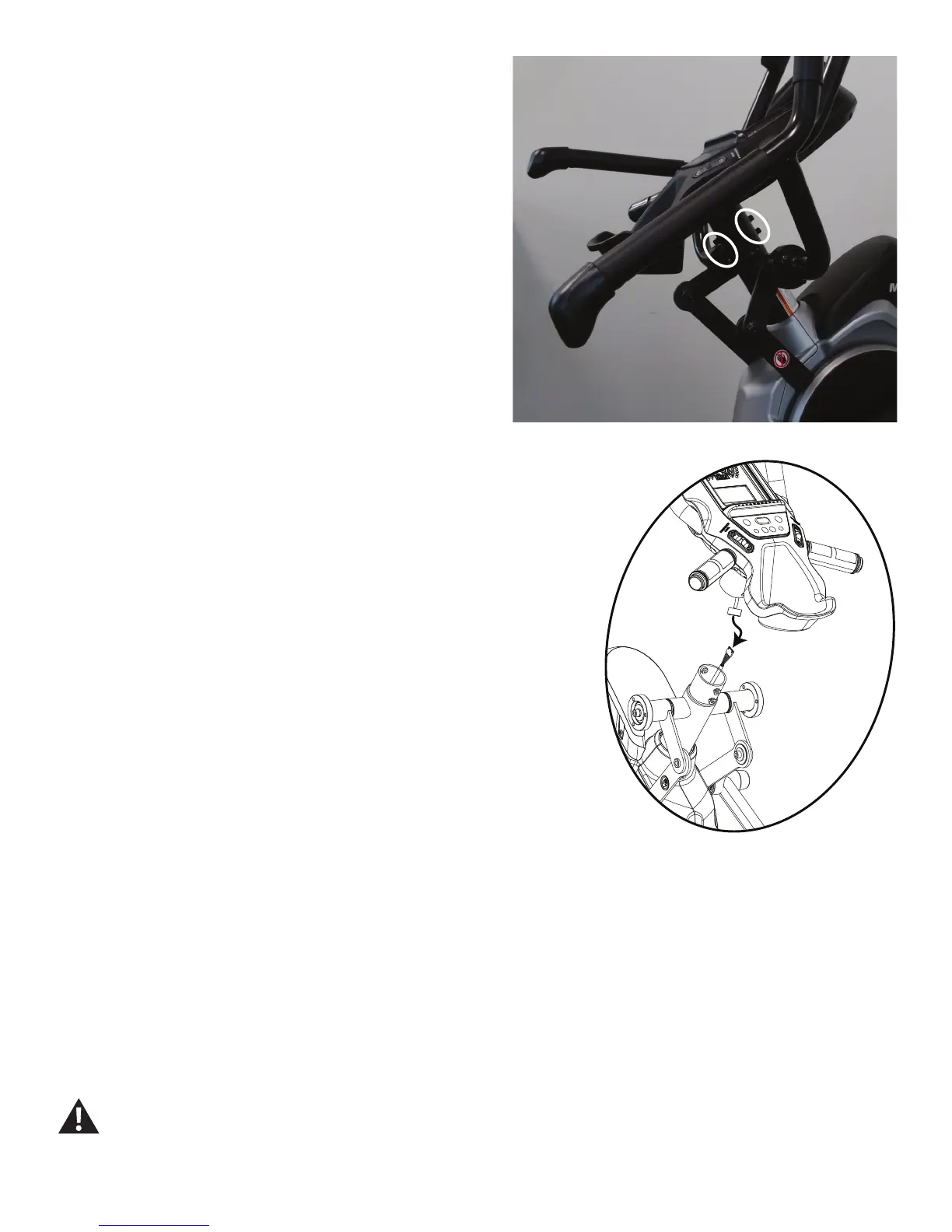

10. Using a 5mm hex wrench, remove the 4 screws (2 on each side of the
Console Mast) from the Console Assembly.
11. Carefully lift the Console Assembly and expose the Cable Connec-
tions.
Note: Do not crimp any of the Console Cables. This step may require two
people.
12. Carefully disconnect the Cables while not allowing them to fall into the
Console Mast.
Note: Do not crimp any of the Console Cables.
13. Gently pull the old I/O Cable out of the frame, routing the new I/O
Cable into place.
14. Remove the piece of wire or string, and discard the old I/O Cable.
15. Secure the lower Cables with a replacement Upper Zip-Tie.
16. Re-assemble the machine in the reverse order of when the parts were removed.
17. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are properly assembled.
Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the Owner’s
Manual.
