62

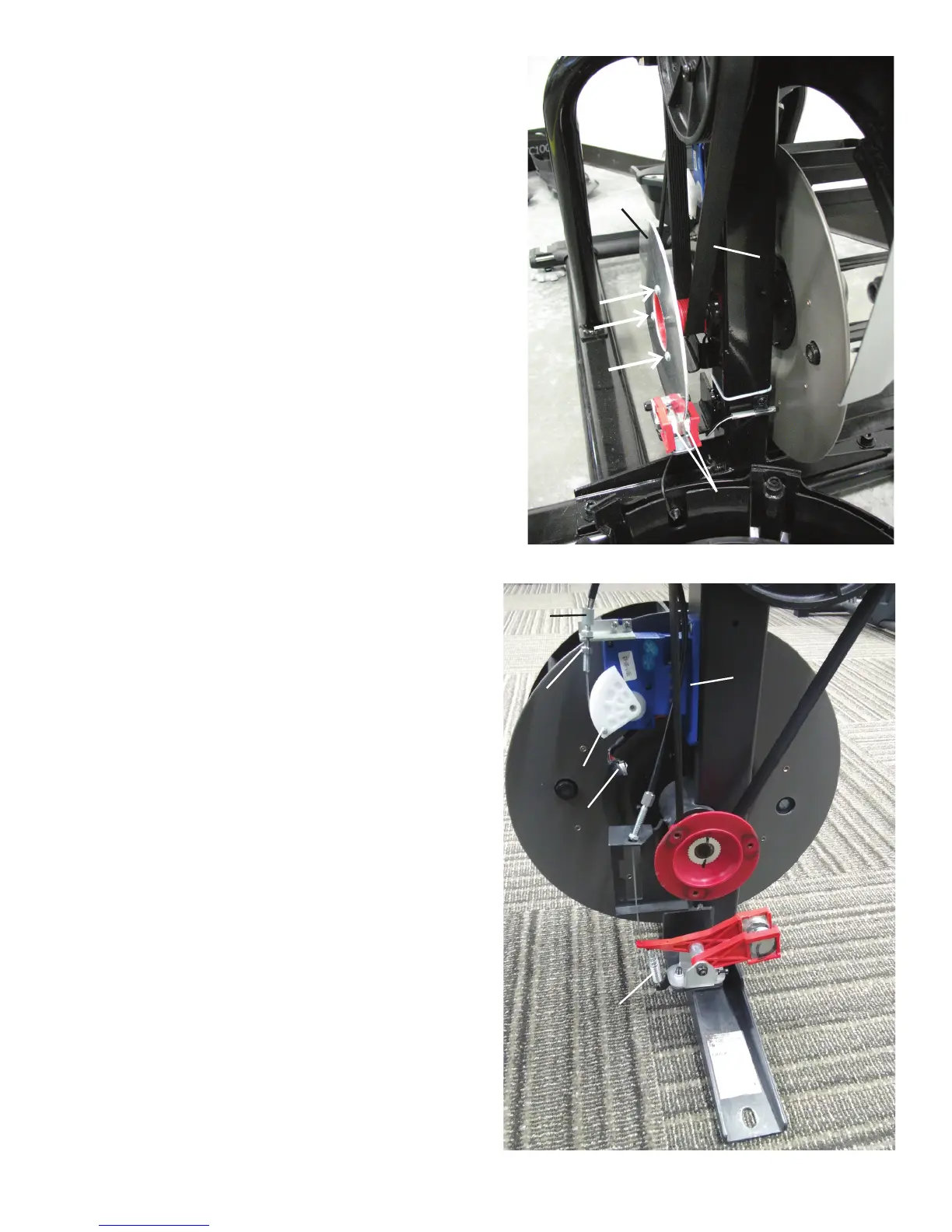

6. Using a #2 Phillips screwdriver, remove the 3 indicated screws
from the Brake Disc.
7. Carefully remove the Brake Disc from the machine.
8. Using a 8mm open ended wrench, loosen the Brake Cable Secur-
ing Nut until the Brake Cable can be released from the Servo Motor
Arm.
9. Remove the Brake Spring from the Brake Arm.
10. Disconnect the Cables from the Servo Motor.
11. Using a #2 Phillips screwdriver, remove the 4 screws that attach
the Servo Motor to the Frame.
12. Attach the new Servo Motor to the Frame and reconnect the
Cables.
13. Carefully replace the Brake Disc.
Brake
Magnets
Brake
Disc
Fan Belt
Servo Motor
Brake
Cable
Securing
Nut
Servo Motor
Arm
Servo Motor
Cable Connection
Brake Spring
Adjustment
Barrel
To Next Page
