Bowflex MAX Trainer M9 - Parts

Assembly / Owner’s Manual
7
Adecalhasbeenappliedtoallright(“R”)andleft(“L”)partstoassistwithassembly.
Item Qty Description Item Qty Description
6 1 Console Assembly 16 1 Stabilizer Assembly
7 1 Console Rear Cover 17 1 Rail Assembly
8 1 Static Handlebar Cap 18 2 Cap
9 1 Dynamic Handlebar, Left 19 1 Dynamic Handlebar, Right
10 1 Static Handlebar Assembly 20 1 Tray Insert
11 2 Leg 21 1 Bluetooth
®
Heart Rate Armband
12 1 Stabilizer Shroud, Right 22 1 AC Adapter
13 1 Stabilizer Shroud, Left 23 1 Manual Kit
14 2 Pedal 24 1 Hardware Card
15 4 Leveler
Item Qty Description
1 1 Frame
2 1 Shroud, Rear
3 2 Foot Pad Insert, Front
4 2 Foot Pad Insert
5 2 Foot Pad

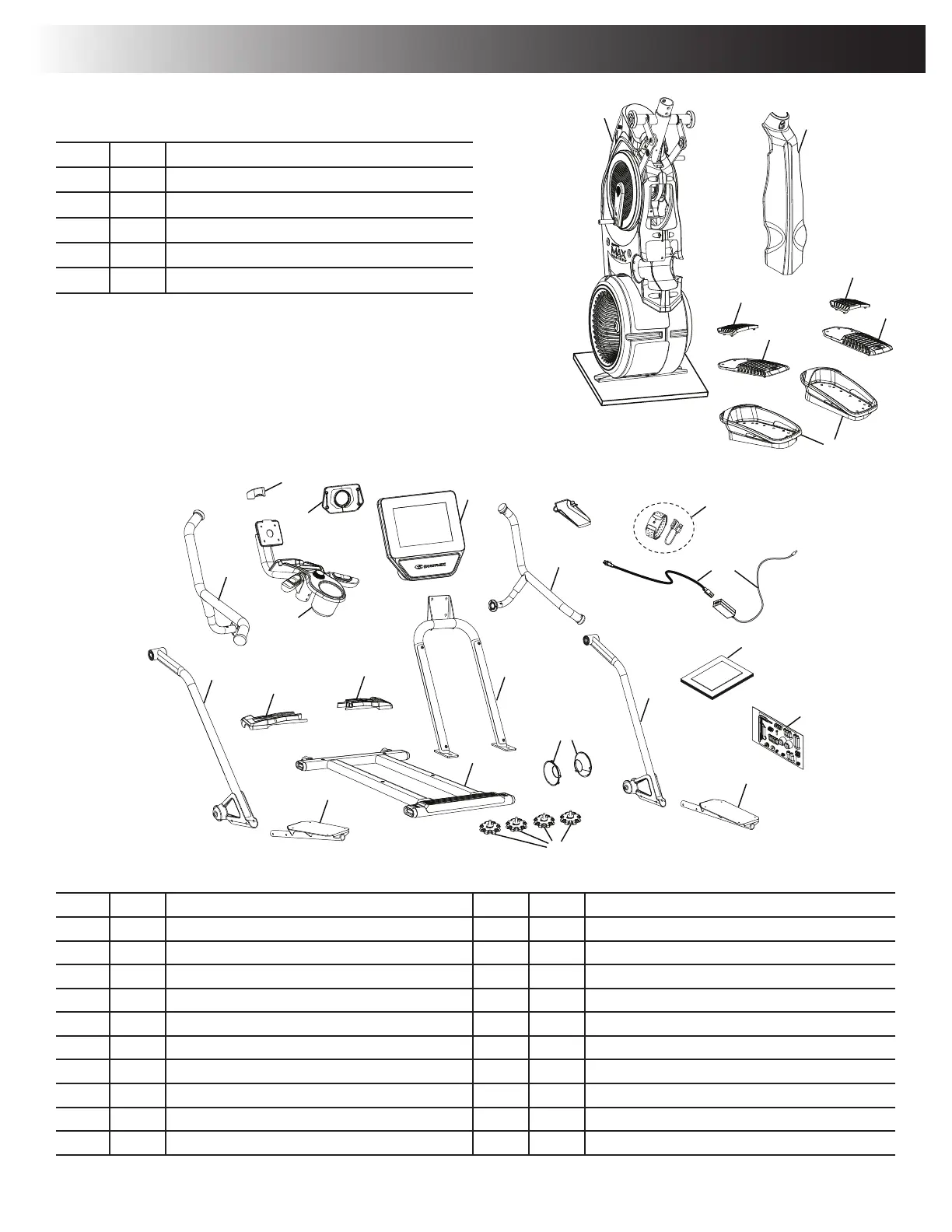

Parts
18
22
23
1
2
3
3
4
4
5
9
11
12
13
16
17
14
19
11
14
15
6
21
10
7
8
24
20
18
22
23
1
2
3
3
4
4
5
9
11
12
13
16
17
14
19
11
14
15
6
21
10
7
8
24
20
