34
Installing Your Bowflex Ultimate
®
2 Cables
Cable Installation STEP 5

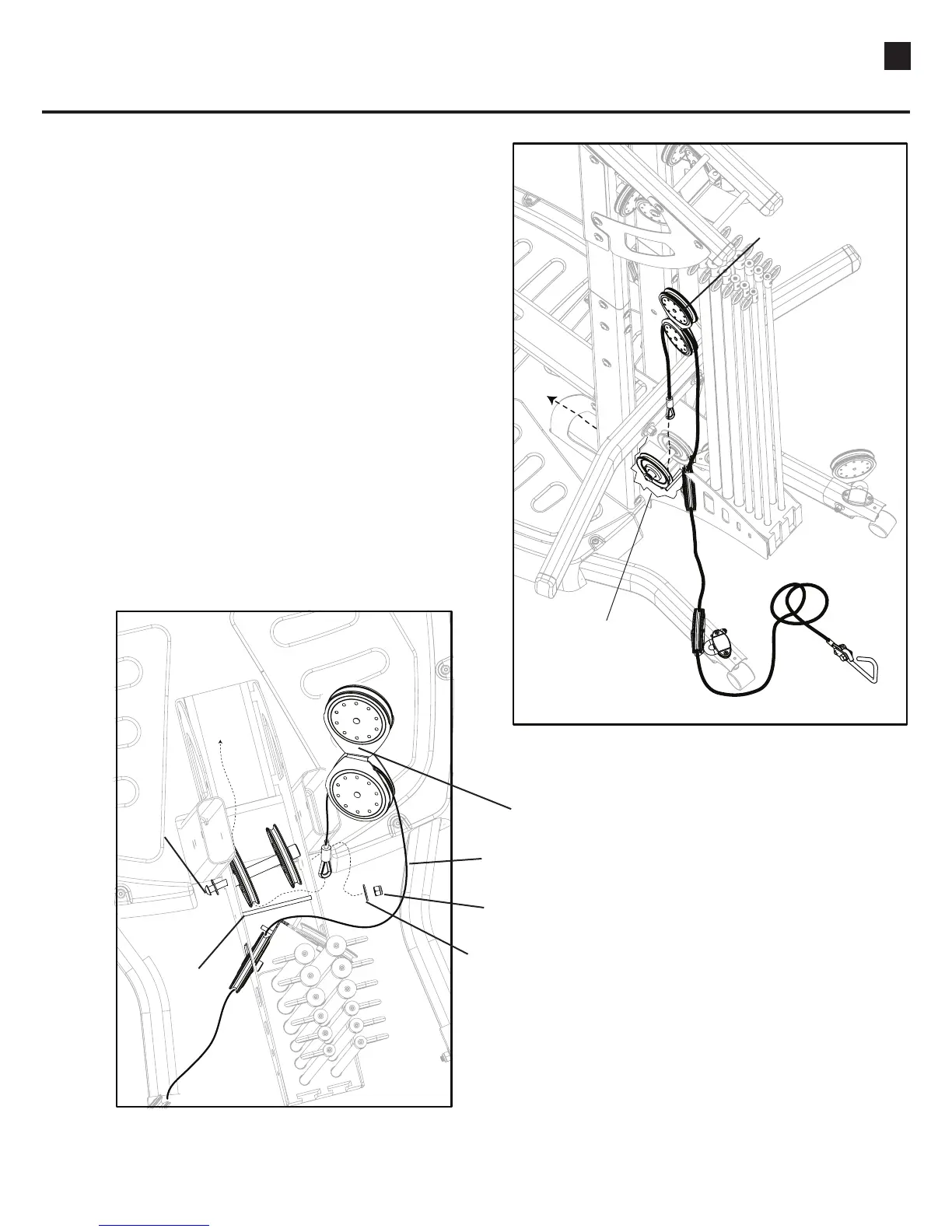

a. Observe the Cable routing in Figure A.
b. Unscrew the Nut and pull the Long Screw out just
enough to angle the Pulley Assembly and allow the
Cable to thread between the Rod and the Pulley.
(See Figure B) Leave the Long Screw loose until you
have routed the Cable on the other side of the unit.
Figure A
Figure B
Floating Pulley
Long Screw
Hex Nut
Washer
Cable
Rod
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
- or Adjustable Wrench
Cutaway of
Rod Box
Floating Pulley
