16
Bowex
®
TreadClimber
®
Owner’s Manual

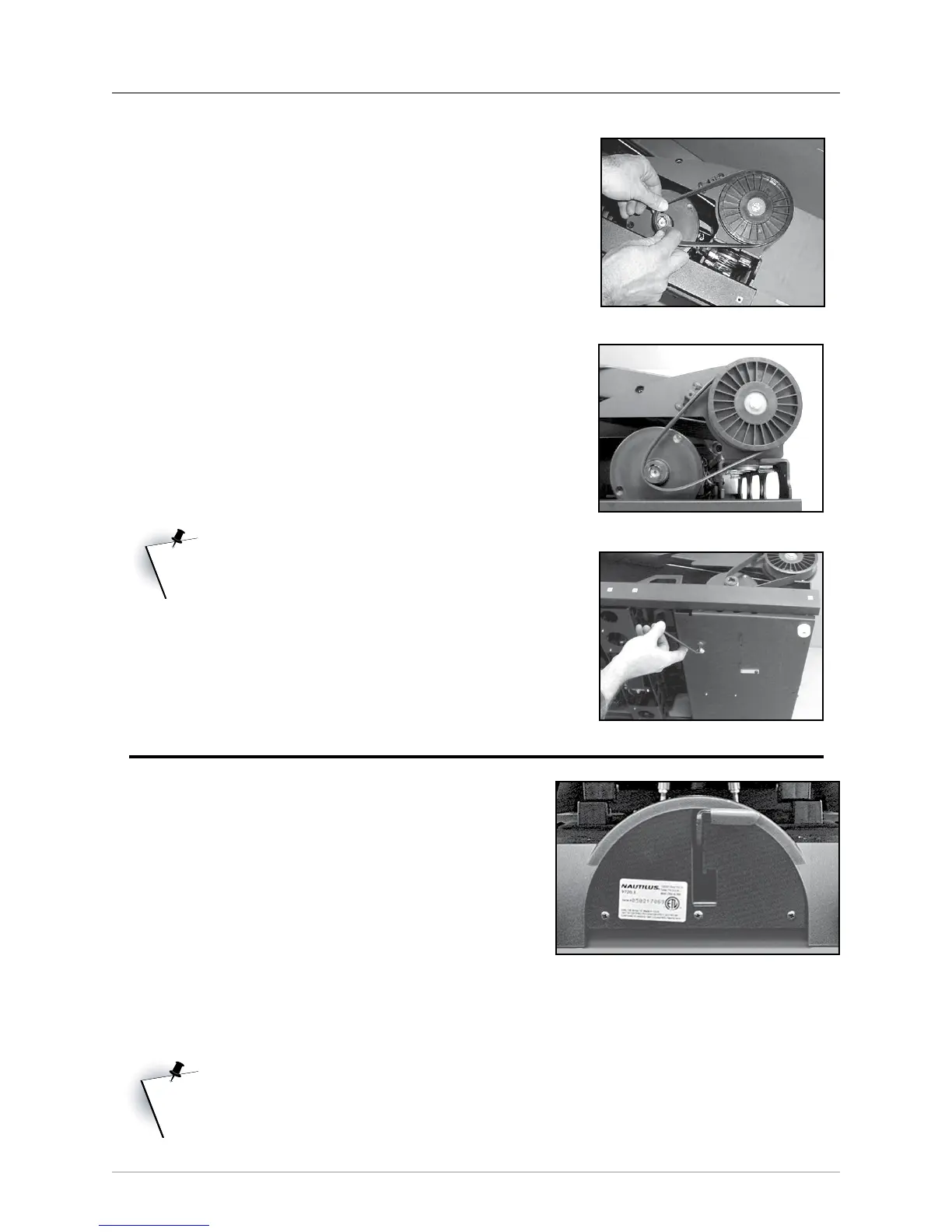

Step 4: INSTALLING DRIVE BELT
Locate the following for this step:
PARTS:
• TreadClimber
®
Base & Treadle Assembly from
Step 3.
• One (1) Drive Belt
TOOLS:
• 3/16” Hex Key (included)
4-1 Place drive belt over roller pulley and motor
pulley (see Figure 4-1).
4-2 Make sure belt is seated into grooves and
installed exactly as shown (see Figure 4-2).
4-3 Using (1) 3/16" hex key completely remove
motor shipping bolt from motor pan (see Figure
4-3) and retain the bolt after removing.
NOTE: Removing shipping bolt will create
spring-loaded tension to drive belt
and make it tight.
4-4 Carefully lay unit back over to the upright
position.
Assembly Guide
Figure 4-3
Figure 4-2
Figure 4-1
Step 5: LOCKING THE TREADLES
Locate the following for this step:
PARTS:
• TreadClimber
®
Base & Treadle Assembly from
Step 4.
5-1 Line up the treadles until they are parallel with
each other.
5-2 Move the locking lever downward and to the left
and then upward into the ‘locked’ position with
your foot (see Figure 5-1). You may need to
gently rock the treadles up and down with your
hand until you hear a ‘click’ to lock the treadles.
NOTE: Locking lever must be all the way to
the top of the front plate. If not fully
engaged the treadles may unlock
during workout.
Figure 5-1
Lever in locked position
