Bowflex TreadClimber TC1000 - Page 24

21
Bowex
®
TreadClimber
®
Owner’s Manual
Step 12: MOUNTING THE FRAME COVERS
Locate the following for this step:
PARTS:
• TreadClimber
®
Base & Treadle Assembly from
Step 11.
• Left Plastic Frame Cover
• Right Plastic Frame Cover
HARDWARE:
• Six (6) #10 Phillips Head screws
TOOLS:
• #2 Phillips Head Screwdriver (included)
12-1 Using the provided #2 Phillips screwdriver,
mount the left and right Plastic Frame Covers
to the sides of the base frame using (6) #10
Phillips head screws (3 per side—see Figures
12-1 & 12-2).
Step 13: MOUNTING THE REAR COVER
Locate the following for this step:
PARTS:
• TreadClimber
®
Base & Treadle Assembly from
Step 12.
• Rear Cover
HARDWARE:
• Four (4) #10 Phillips Head Screws
TOOLS:
• #2 Phillips Head Screwdriver (included)
13-1 Using the provided #2 Phillips screwdriver,
mount the rear cover to the back of frame (see
Figure 13-1) using (4) #10 Phillips head screws
(2 per side—see Figure 13-2).

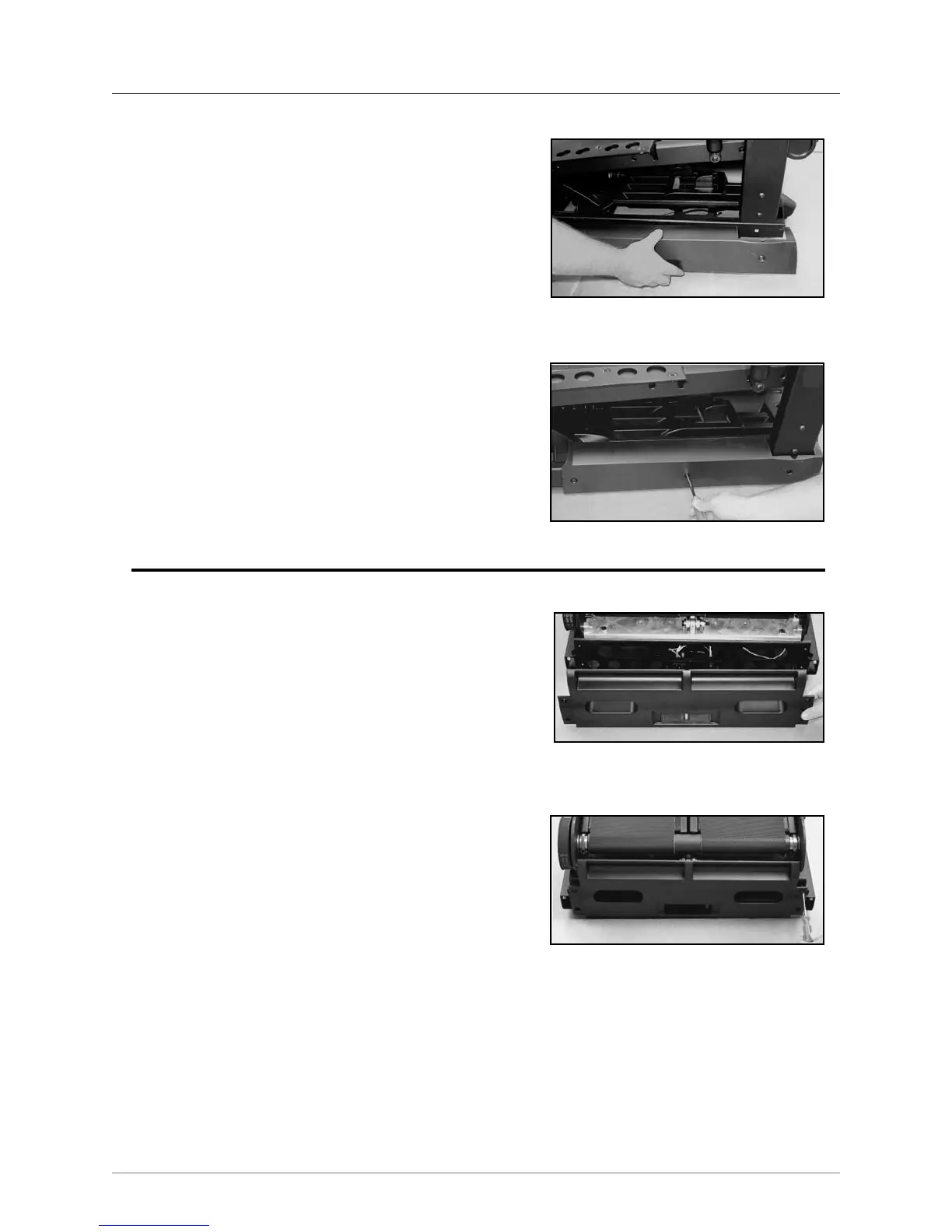

Figure 12-1
Figure 12-2
Figure 13-1
Figure 13-2
Assembly Guide
