4.3 Seat Plate Adjustment
The seat is adjustable to slide along
the frame rails to accommodate
various user height requirements.
It is secured in place by 6 M5 socket
head cap screws.
To move the seat plate:
i. The 6 screws located on the
bottom of the rail mount
must be loosened.

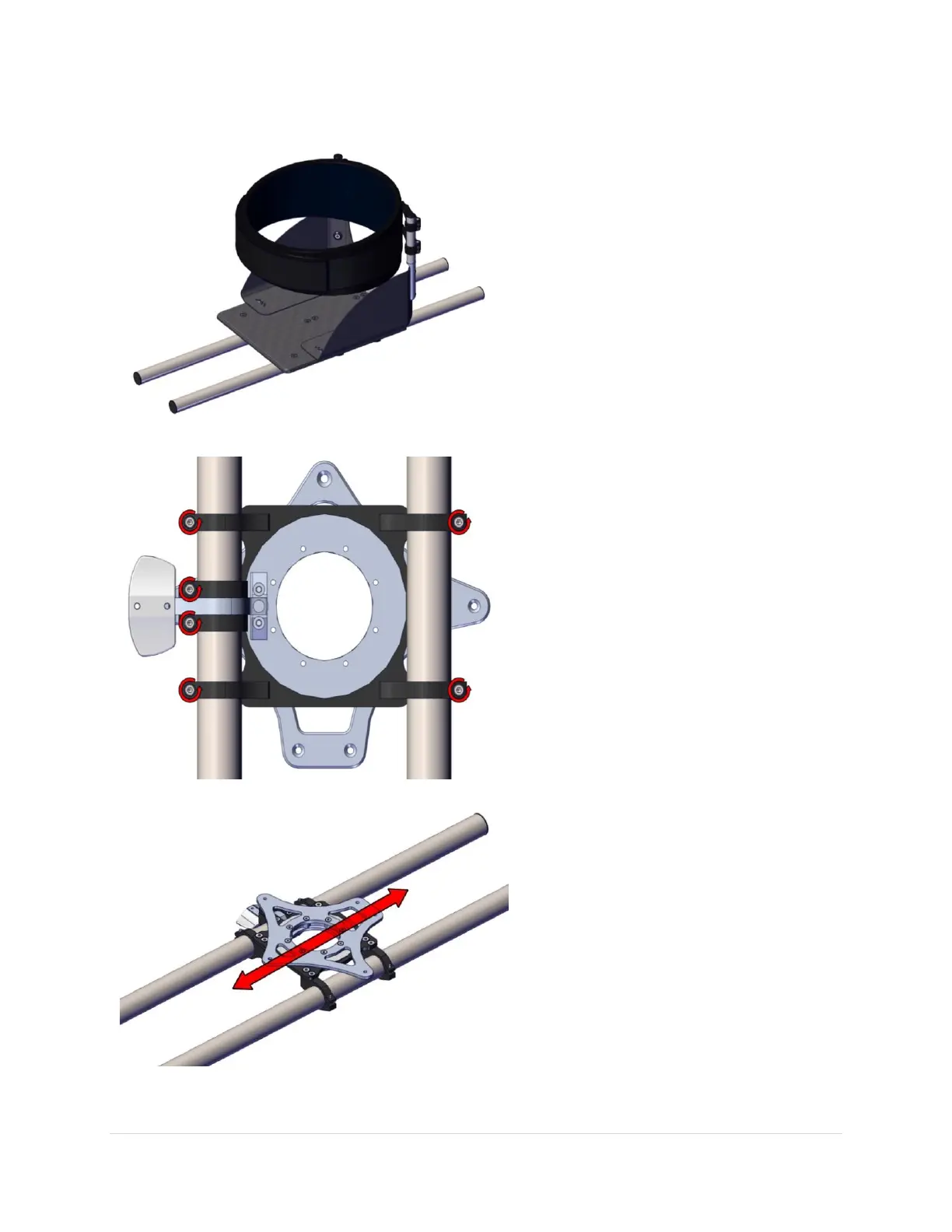

A 5 mm Allen Key should be used in
the direction depicted in the figure
on the left to loosen these screws.
ii. The entire seat assembly may
now be slid forward and
backward to reach a
comfortable position.
iii. After locating the seat in the
appropriate position, the 6
screws must be tightened (4.6
Nm or 3.39 lbft torque) to
secure the seat in its’ new
location.
