4.4 Foot Rest Adjustment

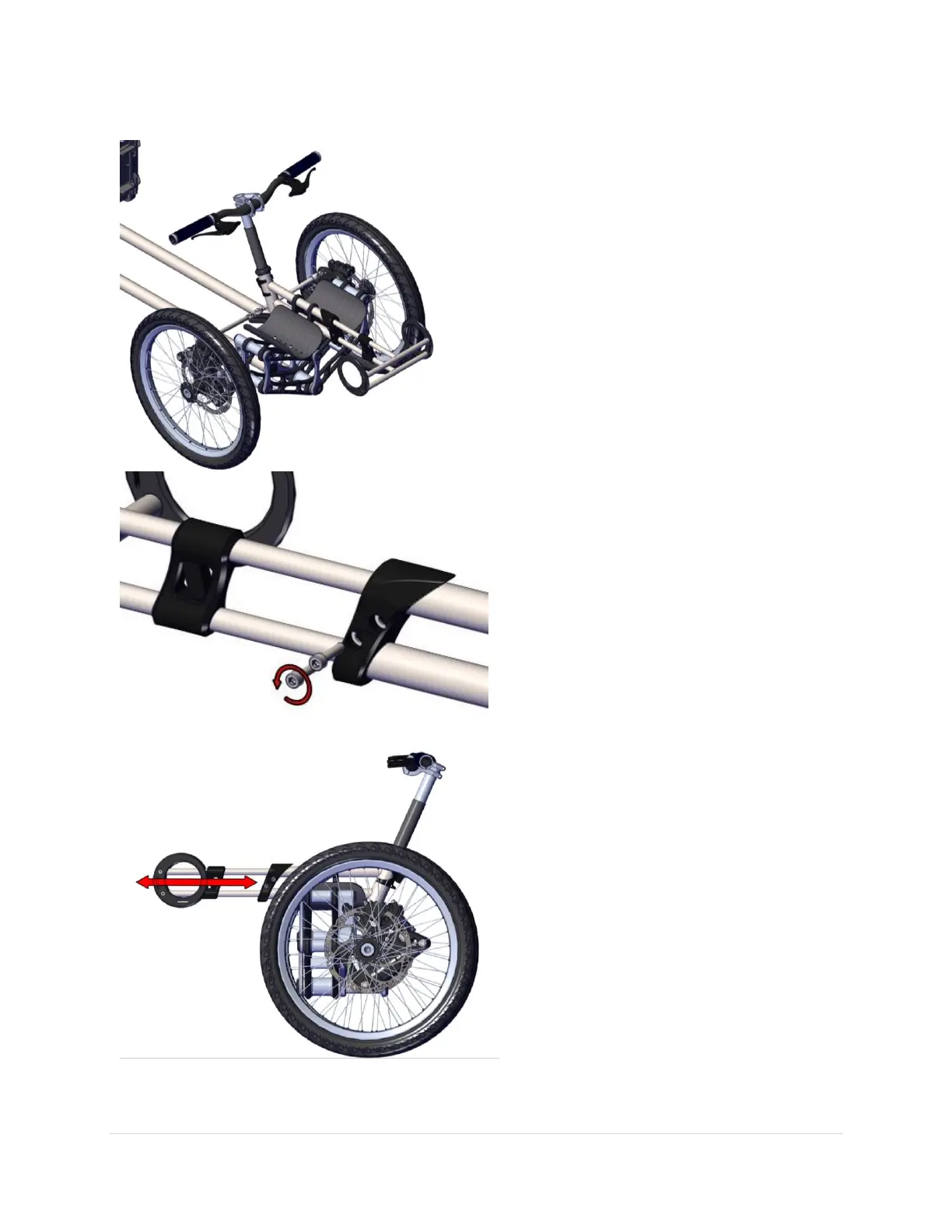

Similar to the seat, the footrest may
also be adjusted to an appropriate
length for each individual user.
It is secured in place by 2 M6 socket
head cap screws.
To move the footrest:
i. The 2 screws located on the
left side of the footrest frame
must be loosened.
A 6 mm Allen Key should be used
in the direction depicted in the
figure to loosen/remove these
screws.
ii. The footrest may now be slid
forward or backward to
lengthen or shorten this
distance.
iii. Once the footrest is in a
comfortable location for riding
the 2 screws must be tightened
(7.8 Nm or 5.75 lbft torque) to
secure the new position.
