4.6 Articulation Locking Pin Removal and Storage

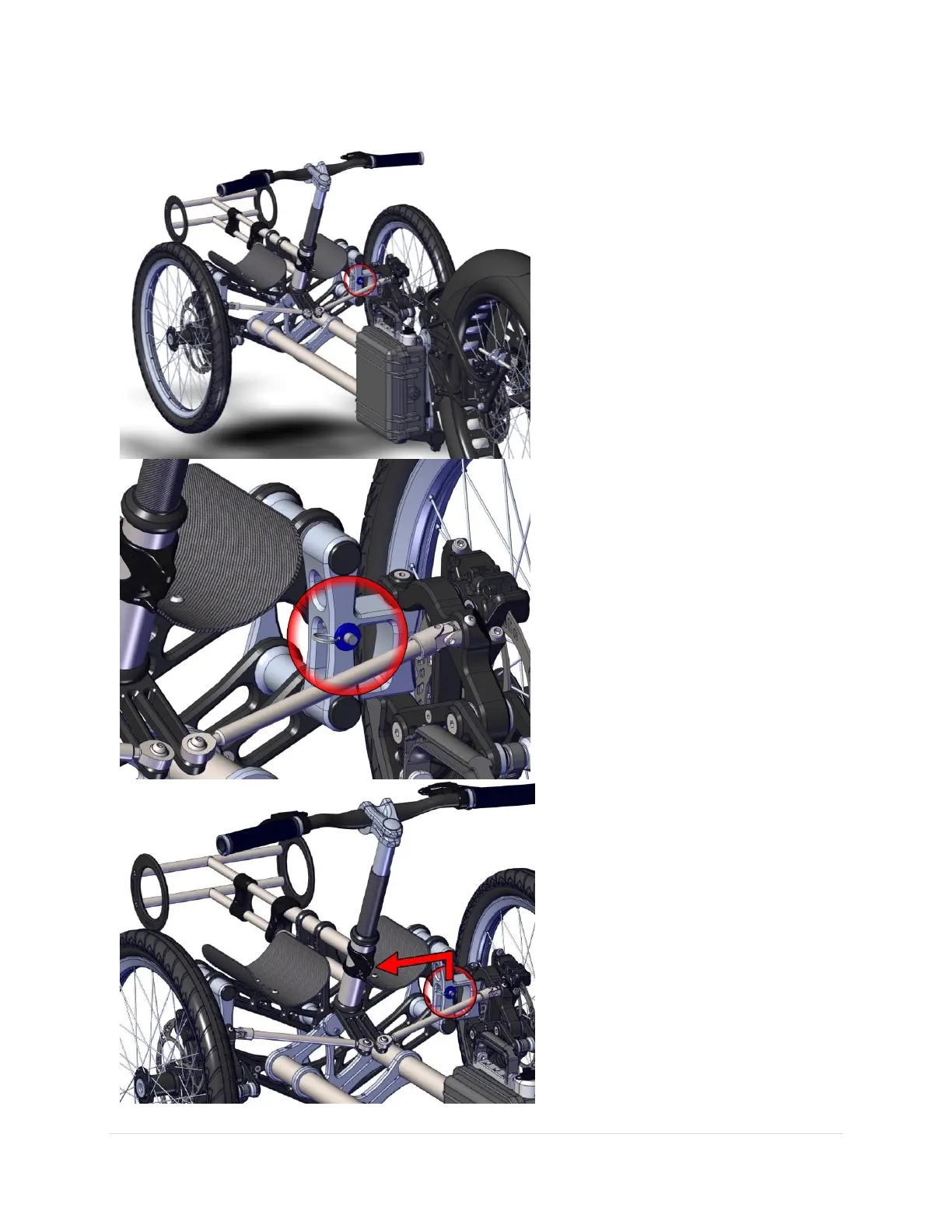

The pin highlighted by the red
circle as seen in the figure locks
any articulation movement of the
bike.
This pin MUST be removed
before riding the bike.
To remove the pin:
i. Press down on the pin and
pull the pin from its slot
ensuring you have a firm
grip on the seat or harness
so the bike will not fall
once the pin is removed.
To store the pin:
ii. The pin should be stored in
the mount shown in the
figure on the left. The top
of the pin must be pressed
down in order to insert the
pin in this storage mount.
iii. After riding, the pin should
be put back in the original
location to lock
articulation movement
once again.
