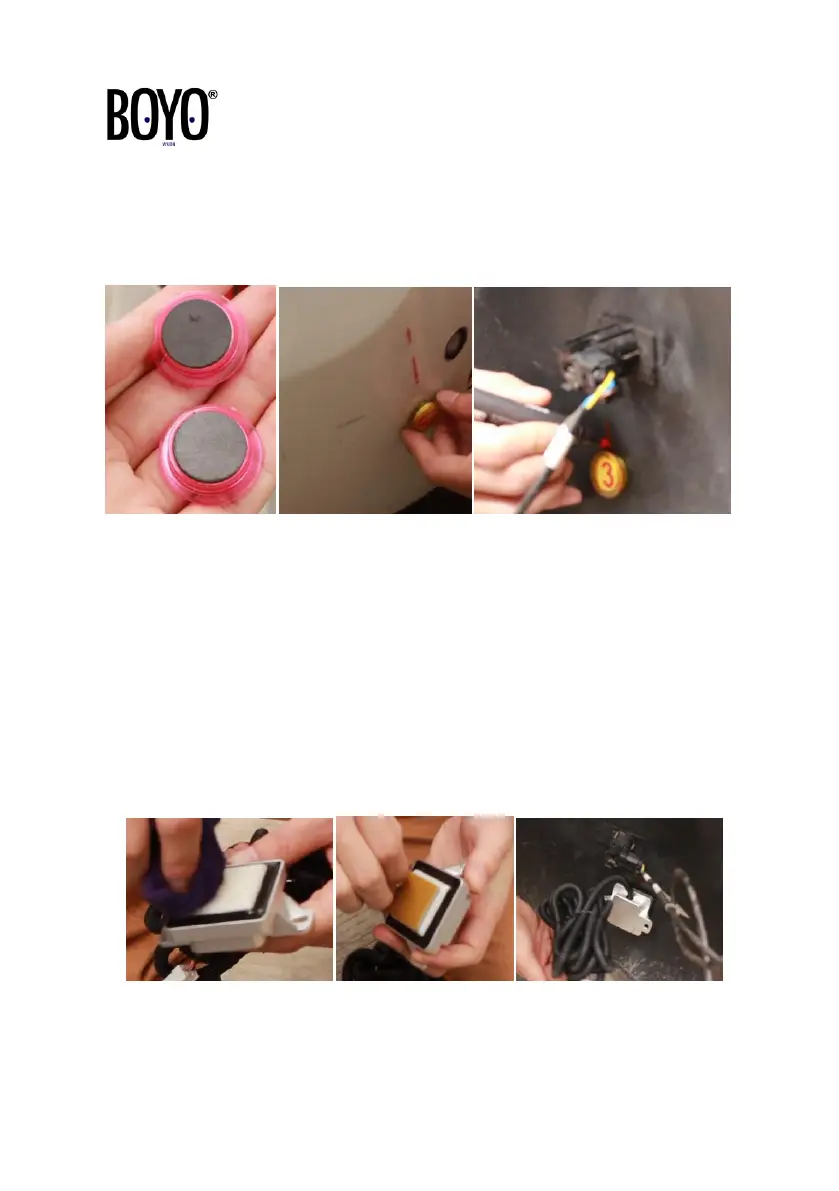

Step8. Prepare 2 pieces of magnetic metal; place one on the line
marker outside the bumper and the other one on the corresponding
spot inside of it. Mark the location with the marker. (Fig.15-Fig.17)
Fig.15 Fig. 16 Fig. 17
Step9. Clean the plastic surface of the sensor with alcohol and then
place a 3M adherent tape on the sensor (Fig.18-Fig.19).
Step10. Stick the sensor to the location of Fig.17 (Step.8). Place the
terminal wires of the sensors upward vertically. (Fig.22)
Step11. Install the sensor on the other side with same method
Fig.18 Fig.19 Fig.20
