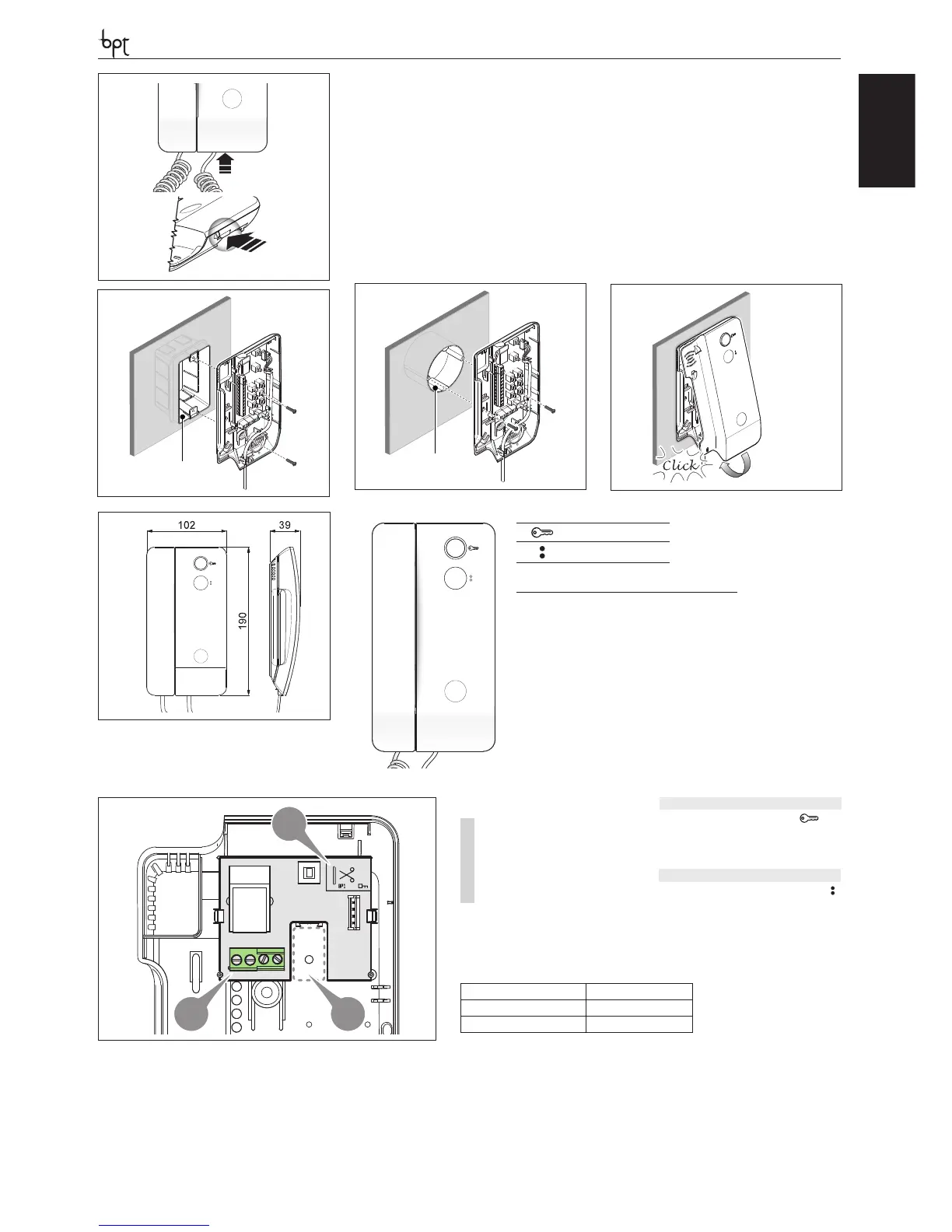

INSTALLATION
Open the device by pressing on the lever at the bottom (g. 1). Separate the shell from the bottom of the device.
Secure the bottom of the device to the wall box using the screws provided (g. 2 and 3). The box must be installed
at an appropriate height for the user. Avoid tightening the screws too much.
Once all connections have been made, reattach the shell to the bottom of the device (g. 4).
AGATA P1
2
1
4
3
Ø60
503
Terminal boards
M1
5 Ground
7 Call input from entry panel
8 Audio FROM entry panel
9 Audio TO entry panel
5 7 8 9
M1
BP1
P1
BP1
In order to make the door open ( ) but-
ton active only when the reciever is up, cut
the BP1 wire link.
P1
Optional AGATA P1 auxiliary function ( )
switch housing.
Door lock release
Auxiliary 2
w
Only use soft, dry or slightly damp cloths to
clean the terminal; do not use any chemical
products.
