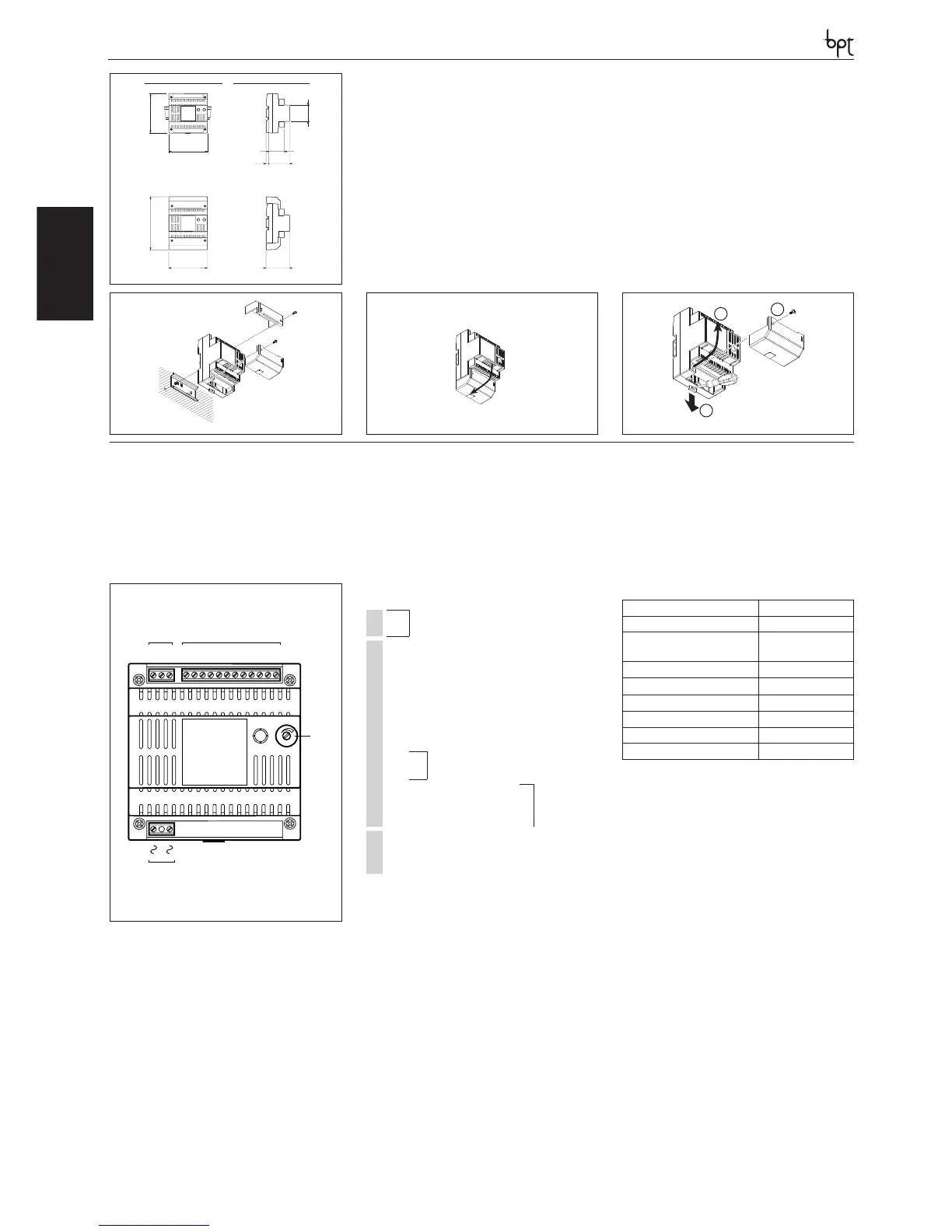

INSTALLATION
• The power supplier must ALWAYS be installed horizontally.
• The device can be installed on a DIN rail (EN 50022) in an appropriate electric panel or it may be wall-mounted using
the protective terminal covers.
• For disassembly, proceed as shown in gure 2-3-4.
• For the overall dimensions see gure 1.
NOTE. Proper ventilation is required if the power supplier is installed in a metal container.
OPERATING CHARACTERISTICS
The unit is equipped with a transformer capable of powering the HPC/1 entry panel and max. 20 HPP/6 panels.
The unit features the following functions:
- 2 two-tone call notes for entry panels (or for supplementary calls, e. g. landing calls).
- Power supply and control of electric lock (12 V AC, 1 A) by means of relay (inside the unit) with timer-controlled interval adjustable from 2 to 15 seconds by means of poten-
tiometer P1, gure 3.
-Call generator: 2 types of two-tone call (up to 3 internal units can be connected in parallel to the same call).
The unit can be powered from a 12 V DC power supply, e. g. battery or uninterruptable power supply (terminals +B and 5). The unit has no battery protection.
A
5
8
+B
5
21
8
8A
11
12
23
16
NO
C
NC
9
B
C
P1
TERMINAL BOARDS
A
~
Mains
~
B
+B
5
12 V DC input (*)
Ground
21 11 V DC output
8 call common 1 output
8A call common 2 output
11 audio from entry panel
12 audio to entry panel
5 –
output 14 V AC
6
+
NO Normally open
relay
contacts
C common
NC normally closed
C
5 ground
8 Audio to receiver
9 Audio from receiver
(*) The appliance is electronically protected against
overloads and short circuits.
