Bpt CD/200 - CD;200 Coder;Decoder; Unit Overview and Programming

1
2
3
4
01.2002/2403-4611
N2
6
5
7A
P
7
12
SW
CD/200
C/200
XV/200
XC/200
CD/200
CD/200
XC/200
Function of each terminal and
wire (fig. 1)
Terminal block
6 +10÷18 VDC
7 coded call from entry panel
N2 enabling of second call note
12 coded call to porter’s switch-
board
Wires
5 ground
7A call to receiver
P call to porter’s switchboard
Programming
- Power up the unit and remove
the SW software programming
jumper (fig. 1)
- Send the user code via the
coded call entry panel or the
VPD/100-VPDM/100 porter’s swit-
chboard.
- Insert the SW jumper.
N.B. If the programming is carried
out via the porter’s switchboard,
the acknowledgement of the com-
pleted programming is given by the
code sent to the receiver appea-
ring on the display PORTER
CALL.
The unit generates two types of
call note:
a) continuous bi-tonal note lasting
at least 1 s
b) rings lasting 0.6 s repeated
every 2 s, for the duration of the
call, with a minimum of 2 rings.
The unit is factory set with the note
type a for calls from the entry
panel, and with note type b for
2
5
6
calls from the porter’s switchboard
(the connection must be made to
terminal N2 before note type b can
be obtained).
The type of note can be inverted
by sending the code 80160 (block
code) or 13120 (progressive-
mode code) to the unit.
In order to reset the initial condi-
tions, send the code 80161 (block
code) or 13121 (progressive-
mode code) to the unit.
The modification of the call not
e
must be carried out when in pro
-
gramming mode (with the softwar
e
jumper SW disconnected).
Technical features
• Supply voltage: 10÷18 VDC
• Current demand: 1 mA (105 mA
during the call)
• Maximum number of CD/200
units which can be connected in
a block: 200.
• Working temperature range:
from 0°C to 35°C.
• Dimensions: 52x35x17 mm.

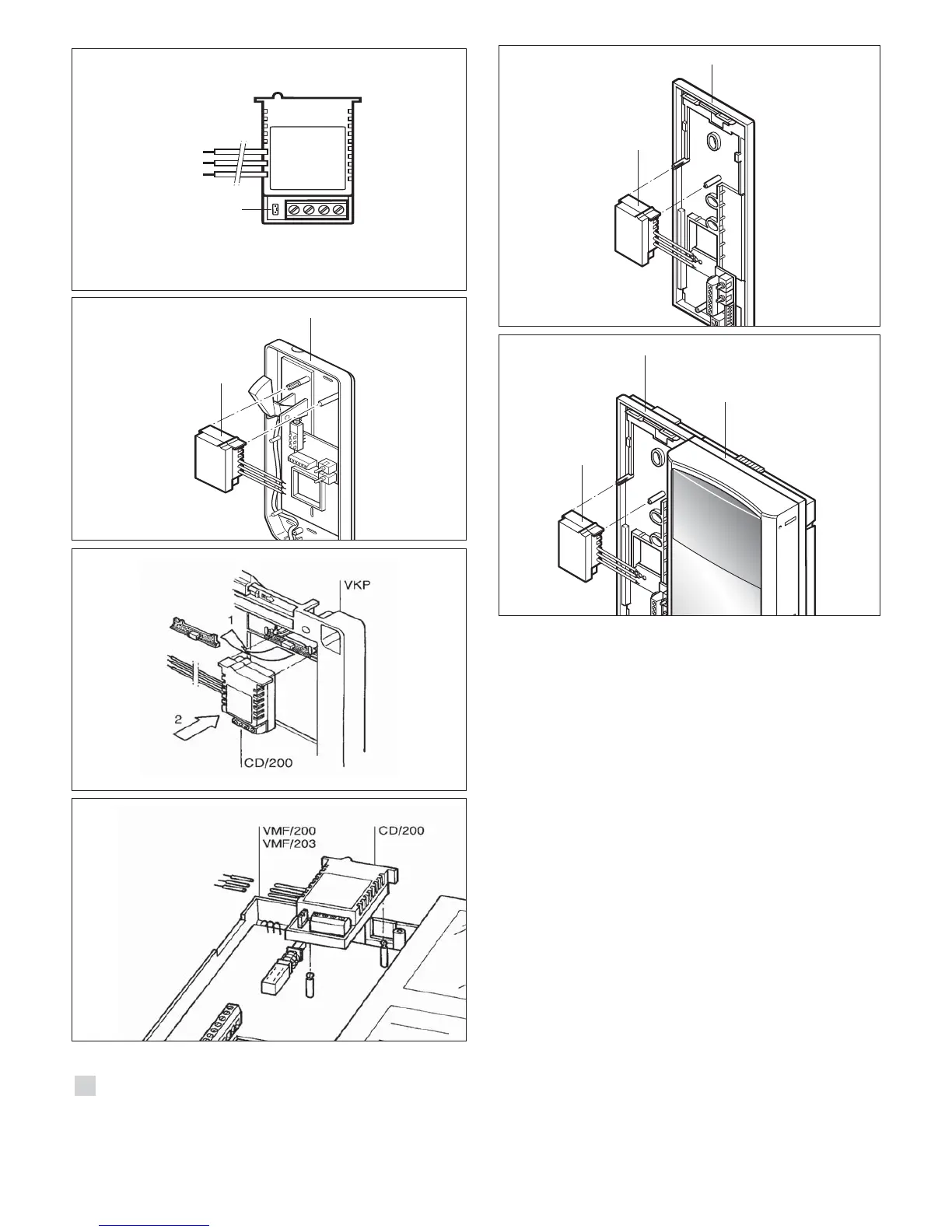

Installation
The coder/decoder must be instal-
led in the receiver by following the
indications given in fig. 2÷6.
For the VM/200 table-top series,
the unit is fitted in an embedding
box.
CD/200
CODER/DECODER CD/200
The unit enables the handsets and
the monitors (200 and EXEDRA
200 series) to be installed in
coded call installations system
200.
A CD/200 must be installed in
GB
INSTALLATION
INSTRUCTIONS
200.
A CD/200 must be installed in
each receiver, even in installations
where more than one receiver is
activated by the same call.
An RC/200 call repeater can be
connected in parallel to the recei-
ver.
