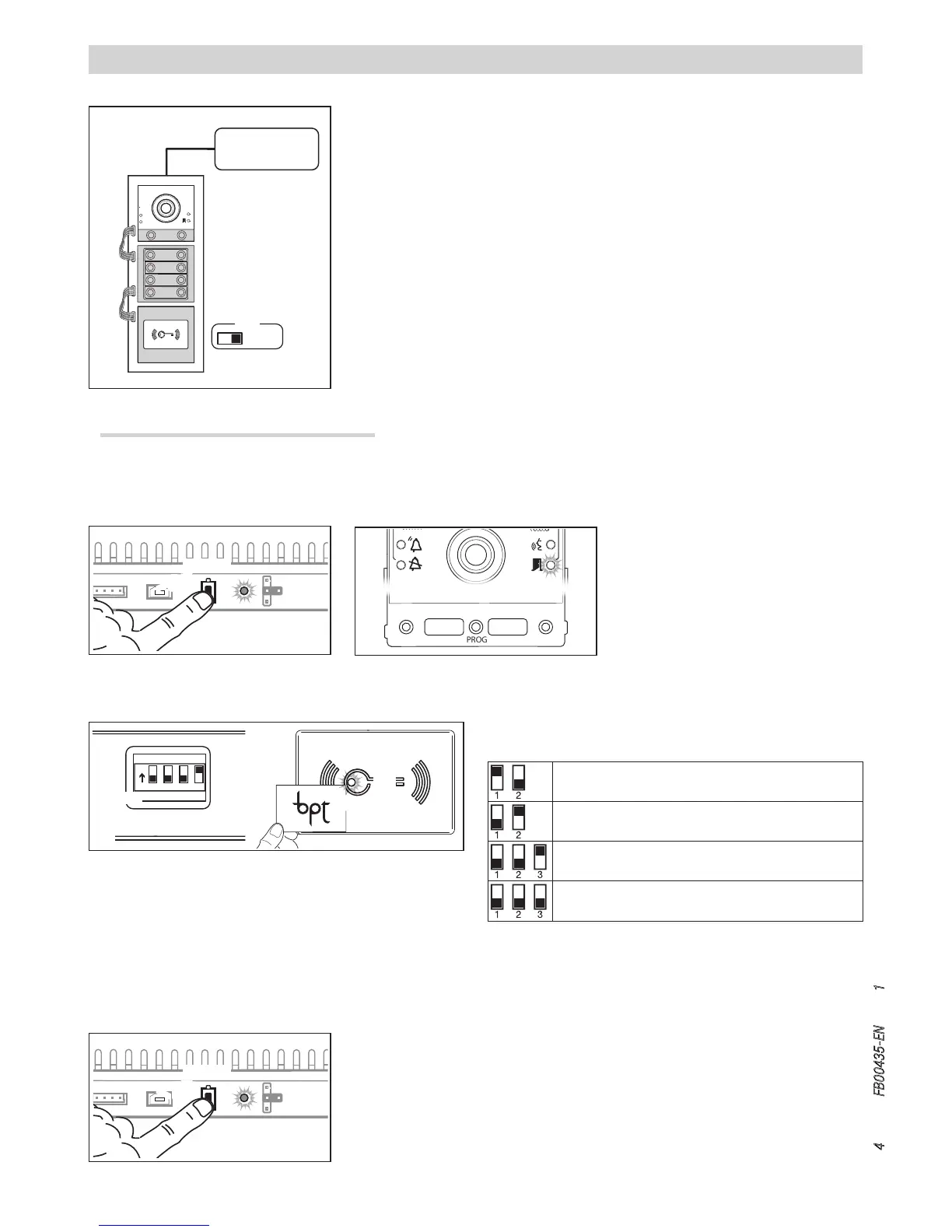

Programming with MTMA/01 MTMV/01 modules in SLAVE mode
Programming relay codes with badges
Door release code programming associates badges with the relays present on the MTMA/01 MTMV/01 module. Control is local and if
you have multiple MTMA/01 MTMV/01 modules, you need to program the door release codes on each entry panel.
N.B. The procedure for programming the door release and relay codes erases all previously programmed codes.
Accessing programming
With VA/01: press PROG A until the
PROG LED lights up.
Without VA/01: press PROG B on the
entry panel for at least 3 seconds and re-
lease within 6 seconds.
Use the dip switches on SWITCH SW4 to set the relay with which
to associate the badge C❶:
associate the badge with the first VLS/2 relay
associate the badge with the second VLS/2 relay
associate the badge with the auxiliary contact on the
MTMA/01 MTMV/01 module
associate the badge with the door release control on
the MTMA/01 MTMV/01 module
Swipe the badge on the entry panel you wish to program C❷.
A tone will confirm that the association has taken place C❸; 3
quick tones will indicate an error condition.
Exiting programming
Briefly press the PROG key D: the entry panel indicator LEDS go o.
