Bradley S19-2200 User Manual

Installation EFX 60/S19-2200
Bradley • 215-1289 Rev. P; ECN 18-09-005 2/26/2018 9
Item Qty. Description
4 1 Washer
9 1 Washer
32 2 Seal
45 1 Washer
Washer/Seal Kit S65-311
Item Qty. Description
2 1 O-Ring
10 1 O-Ring
12 1 O-Ring
17 1 O-Ring
18 1 O-Ring
19 1 O-Ring
21 1 O-Ring
26 2 O-Ring
28 2 O-Ring
36 2 O-Ring
O-Ring Kit S65-177
Item Qty. Description
25 2 Cap
26 2 O-Ring
27 2 Stem
28 2 O-Ring
29 2 Strainer
30 1 Hot Supply
Spring
31 2 Holder
(for Seal)
32 2 Seal
35 2 Seat
36 2 O-Ring
47 1 Cold Supply
Spring (Blue)
Check/Stop Kit S65-359
Item Qty. Description
15 1 Thermostat
17 1 O-Ring
21 1 O-Ring
Thermostat Kit S65-178
Item Qty. Description
2 1 O-Ring
3 1 Liner
4 1 Washer
5 1 Screw
6 1 Spring
7 1 Lower Overheat
Chamber
8 1 Spring
9 1 Washer
10 1 O-Ring
11 1 Piston
12 1 O-Ring
13 1 Upper Overheat
Chamber
14 1 Upper Seat
45 1 Washer
Piston & Liner Kit S65-180
Item Qty. Description
2 1 O-Ring
3 1 Liner
4 1 Washer
5 1 Screw
6 1 Spring
7 1 Lower Overheat
Chamber
8 1 Spring
9 1 Washer
10 1 O-Ring
11 1 Piston
12 1 O-Ring
13 1 Upper Overheat
Chamber
14 1 Upper Seat
15 1 Thermostat
16 1 Pushrod
17 1 O-Ring
18 1 O-Ring
19 1 O-Ring
20 1 Mixing Valve Cap
21 1 O-Ring
22 1 Control Cap
23 1 Set Screw
24 1 Screw
45 1 Washer
Center Section Kit S65-305
Kit numbers for rough brass finish and
standard range thermostat. Contact
Bradley for other configurations.
Brass Pipe Plug (3/4" NPT)
Valve Body
Thermometer

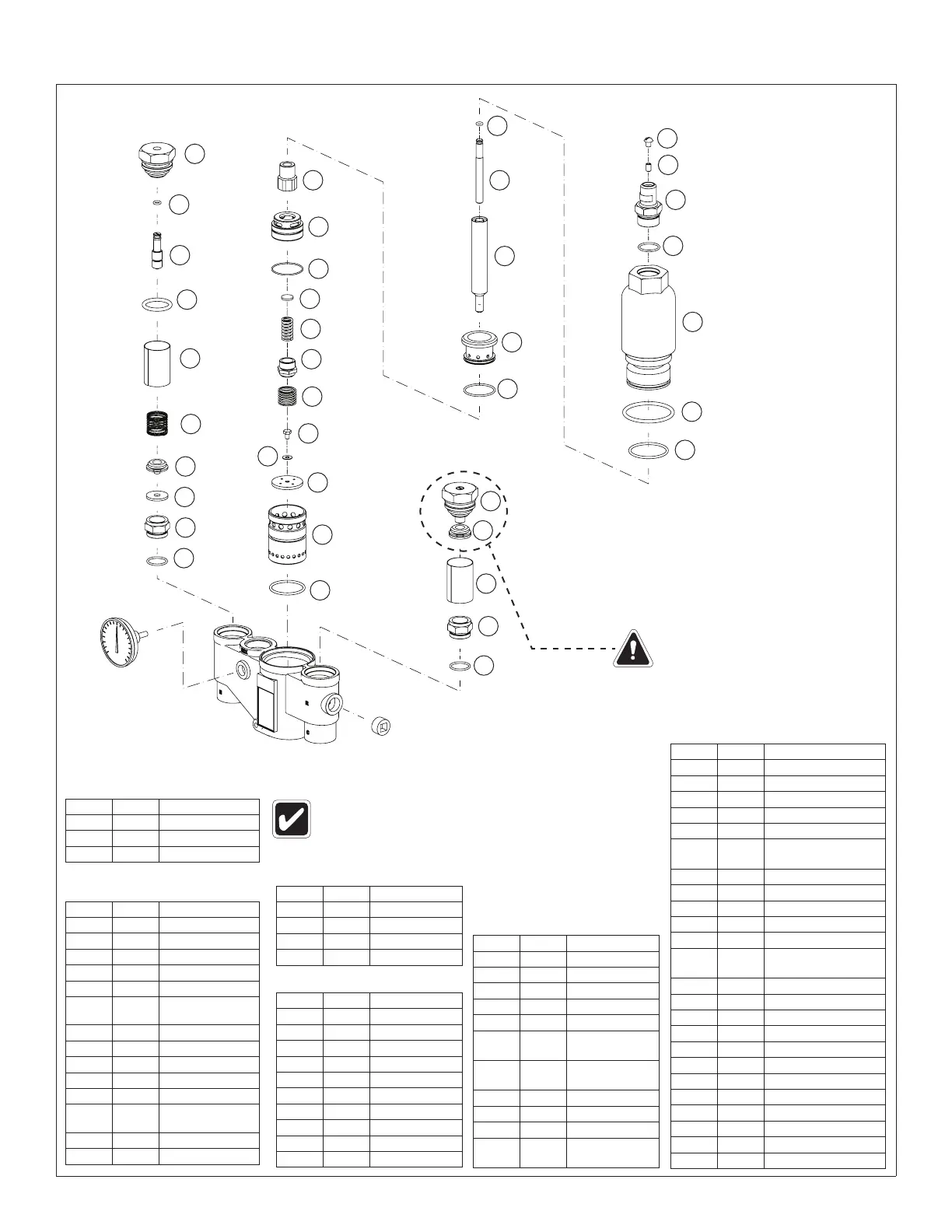

Parts Breakdown
Cold Supply Spring is marked with
blue paint. DO NOT SWITCH WITH
HOT SUPPLY SPRING (30).
36
29
35
46
47
25
26
27
28
29
30
31
32
35
36
13
11
10
9
8
7
6
5
45
4
3
2
17
16
15
14
12
24
23
22
21
20
19
18
NOTICE! Some threaded joints are assembled
using high strength thread lock and
may require the use of heat to loosen
the connection. Use caution to not
damage o-rings or other components.
