Bradley S19-323 - Service Parts

11
Installation S19-323, S19-324
Bradley • 215-1846 Rev. C; ECN 17-05-068 11/21/2017

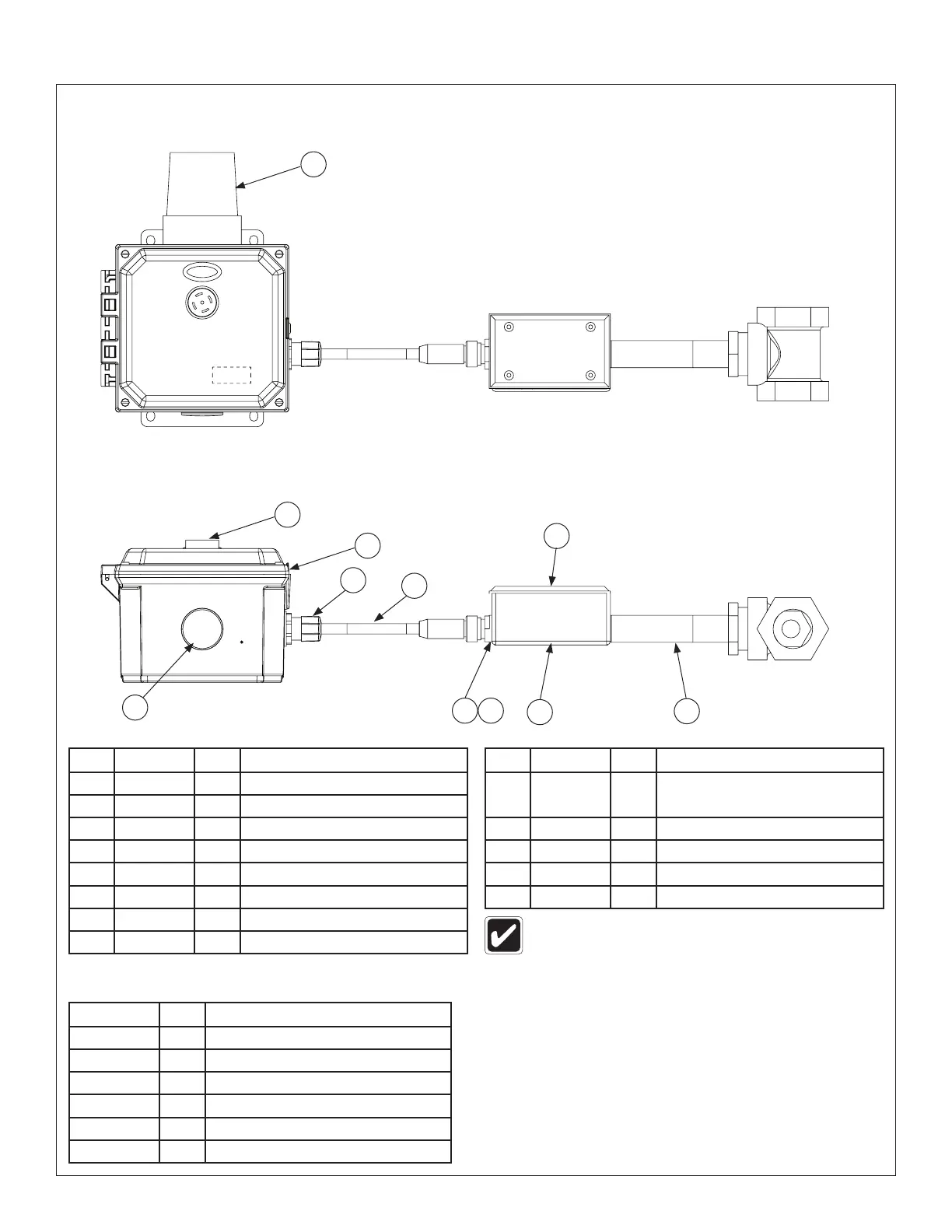

S19-323 Service Parts and Components
2
3
1
4
5
82
80
81
83
36
84
Item Part No. Qty. Description
1 S90-566 1 Sub Assy, Signaling Station
2 257-006 1 Signal Light, Amber - Flashing
3 268-002 1 Buzzer, 24VDC-Tone 1
4 269-2454 1 Cord Grip, 3/4"-4x-200
5 269-524 1 Cond Cable, 6'
36 269-2460 1 Plug, 3/4" Conduit, NEMA 4X
60 140-1156 1 Bracket, Alarm Box GA
61 S90-634 1 General Area Hardware Kit
Item Part No. Qty. Description
80 269-1421 1 Flowswitch, 1-1/4" T-DPDT
80 269-1522 1 Flowswitch, 1/2" - T-DPDT
81 269-1902 1 Junction Box, Conduit Outlet
82 269-1903 1 Cover
83 269-514 1 Cable Receptacle
84 269-518 1 Reducing Bushing
Items #60 and #61 are not shown and shipped
loose.
Part No. Qty. Description
160-467 4 Screw, 1/4-20x3/4 PN 300 SS
142-002AV 4 Washer, .265x.500x.0.63 Flat 304SS
161-060 4 Nut, 1/4-20 SS Nylon Insert
269-594 2 U-Bolt, SS
161-065 4 Nut, 3/8-16 Hex 18-8SS
161-171 2 3/4 NPSM Conduit Locknut
S90-634 General Area Hardware Kit (Item 61)
