13
Installation S19-323, S19-324
Bradley • 215-1846 Rev. C; ECN 17-05-068 11/21/2017

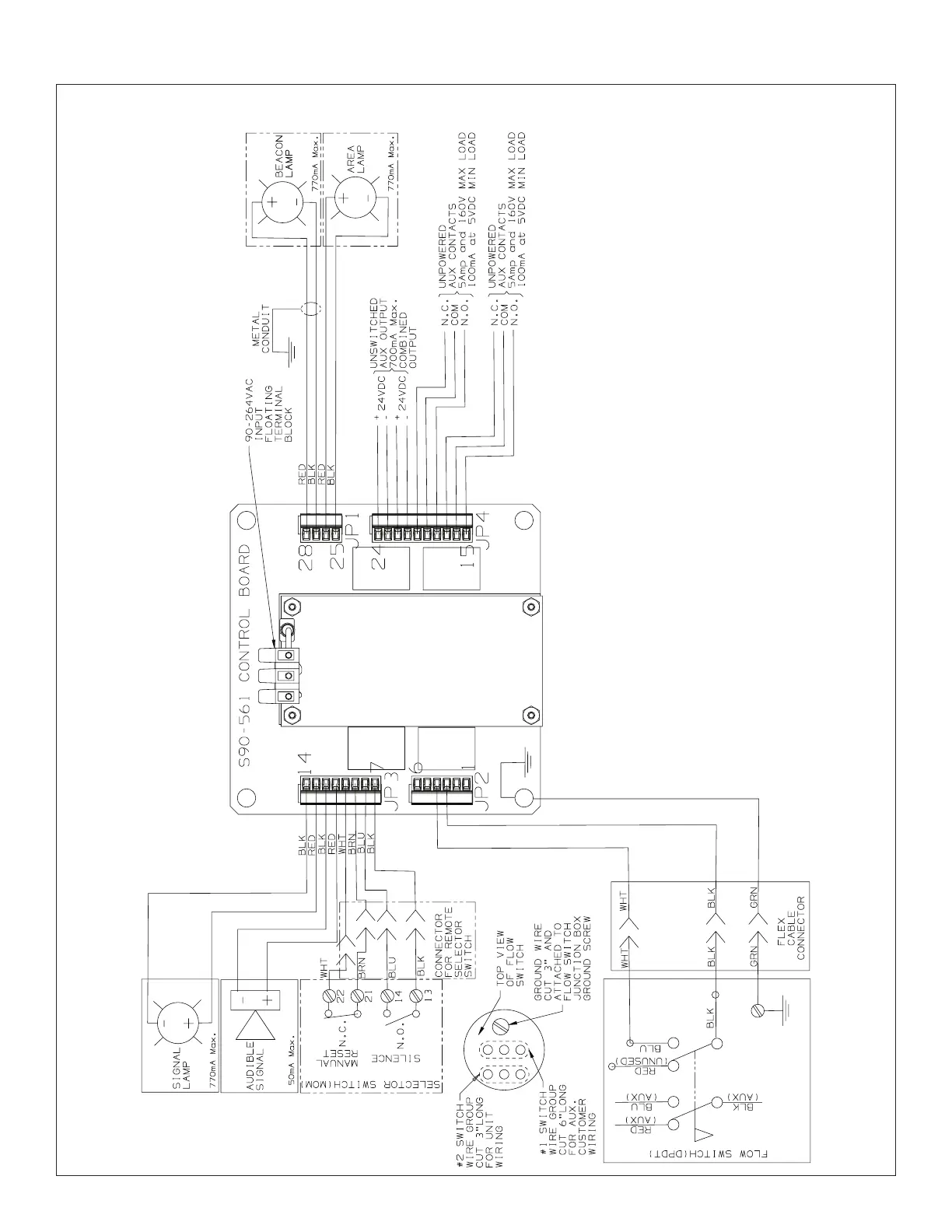

Wiring Diagram
NOTES:
1. Devices in dashed boxes are optional.
2. All powered devices are 24VDC.
3. All wires are 18 AWG unless supplied with
the device, then those wires are to be used.
4. The flow switch is shown in the no flow state.
To Next Page
