Bradley S19-323 - Service Parts

12
S19-323, S19-324 Installation
11/21/2017 Bradley • 215-1846 Rev. C; ECN 17-05-068

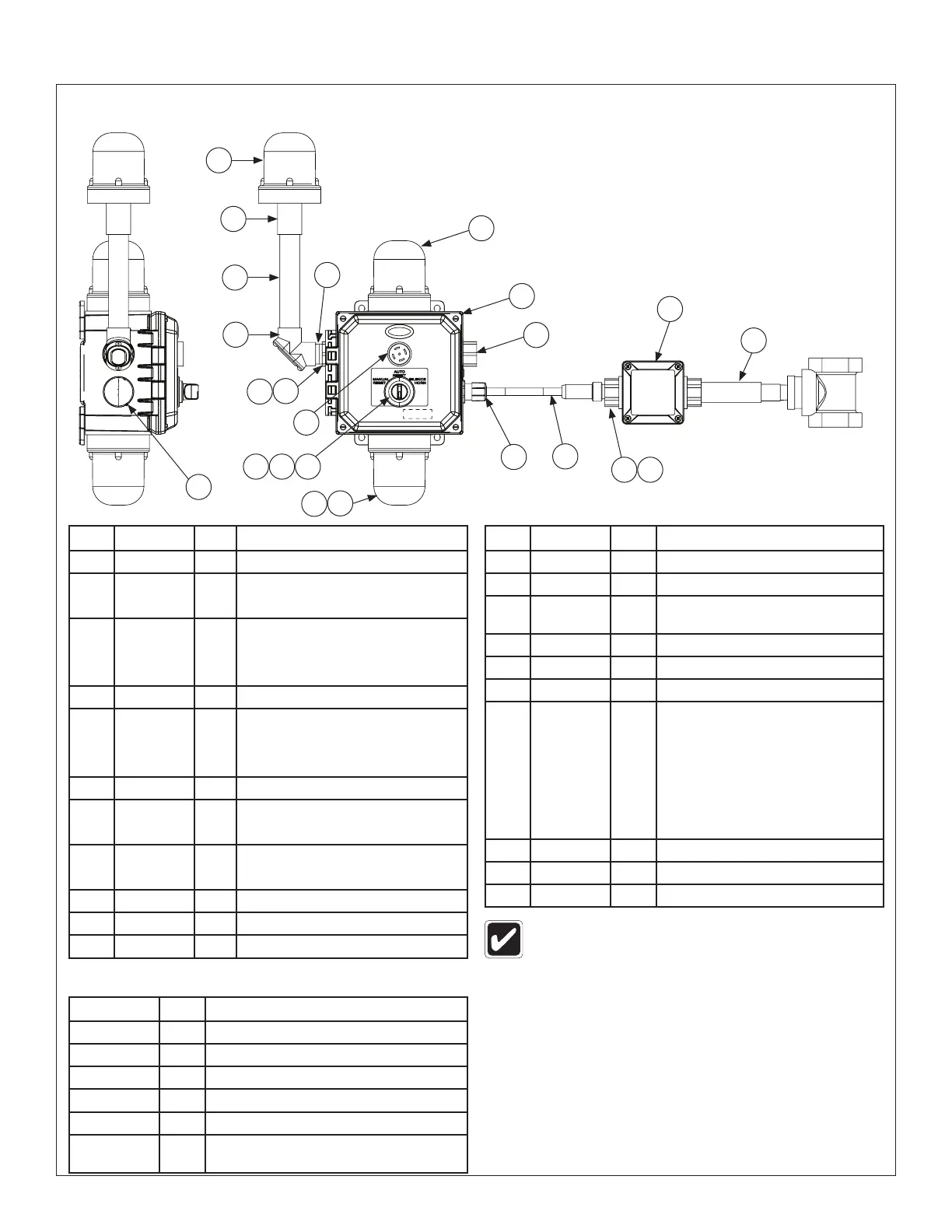

S19-324 Service Parts and Components
36
30
31
32
33
7
3
36
364142
20
36
4
5
83 84
80
81
7
1
2
Item Part No. Qty. Description
1 S90-567 1 Sub Assy, Signaling Station
2 257-007 1 Signal Light, 4X, Amber-Flashing
2 257-008 1 Signal Light, 4X, Red-Flashing
3 268-002 1 Buzzer, NEMA 4X, 24VDC, Tone 1
3 268-003 1 Buzzer, NEMA 4X-24VDC, Tone 2
3 268-004 1 Buzzer, NEMA 4X-24VDC, Tone 3
4 269-2454 1 Cord Grip, 3/4"-4x200
5 269-524 1 Cond Cable, 6'
5 269-1249 1 Cond Cable, 12'
5 269-2480 1 Cond Cable, 50'
7 169-1139 2 Conduit Con, 3/4 Strt-W
20 257-010 1 Area Light, 4X Clear, Steady
20 257-011 1 Area Light, 4X, Red, Steady
30 257-009 1 Beacon Light, 4X, Green, Steady
30 257-012 1 Beacon Light, 4X, Blue, Steady
31 269-1780 1 Conduit Coupling, 3/4" NPT
32 269-1316 1 Conduit Nipple, 3/4 x 6
33 169-1145 1 Elbow, Pulling, Conduit
Item Part No. Qty. Description
34 269-2156 1 Close Nipple, 3/4" Conduit
36 269-2460 * Plug, 3/4" Conduit, NEMA
41 229-010 1 Selector Switch, NEMA-4X Panel
Mount
42 114-310 1 Nameplate
60 140-1156 1 Bracket, Alarm Box, GA
61 S90-634 1 General Area Hardware Kit
80
269-1421 1 Flowswitch, 1-1/4" T-DPDT, Brass
Tee and Body
80
269-1421SS 1 Flowswitch, 1-1/4" T-DPDT, SS
Tee and Body, CSA Listed
80 269-1522 1 Flowswitch, 1/2" T-DPDT
80
269-1522SS 1 Flowswitch, 1/2" T-DPDT, SS Tee
and Body, CSA Listed
81 S90-640 1 Box, Conduit Outlet
83 269-514 1 Cable Receptacle
84 269-518 1 Reducing Bushing
Items #60 and #61 are not shown and shipped
loose.
Part No. Qty. Description
160-467 4 Screw, 1/4-20x3/4 PN 300 SS
142-002AV 4 Washer, .265x.500x.0.63 Flat 304SS
161-060 4 Nut, 1/4-20 SS Nylon Insert
269-594 2 U-Bolt, SS
161-065 4 Nut, 3/8-16 Hex 18-8SS
161-171 2 3/4 NPSM Conduit Locknut (for
mounting to heat trace unit)
S90-634 General Area Hardware Kit (Item 61)
34
