Installation S19-323, S19-324
Bradley • 215-1846 Rev. C; ECN 17-05-068 11/21/2017

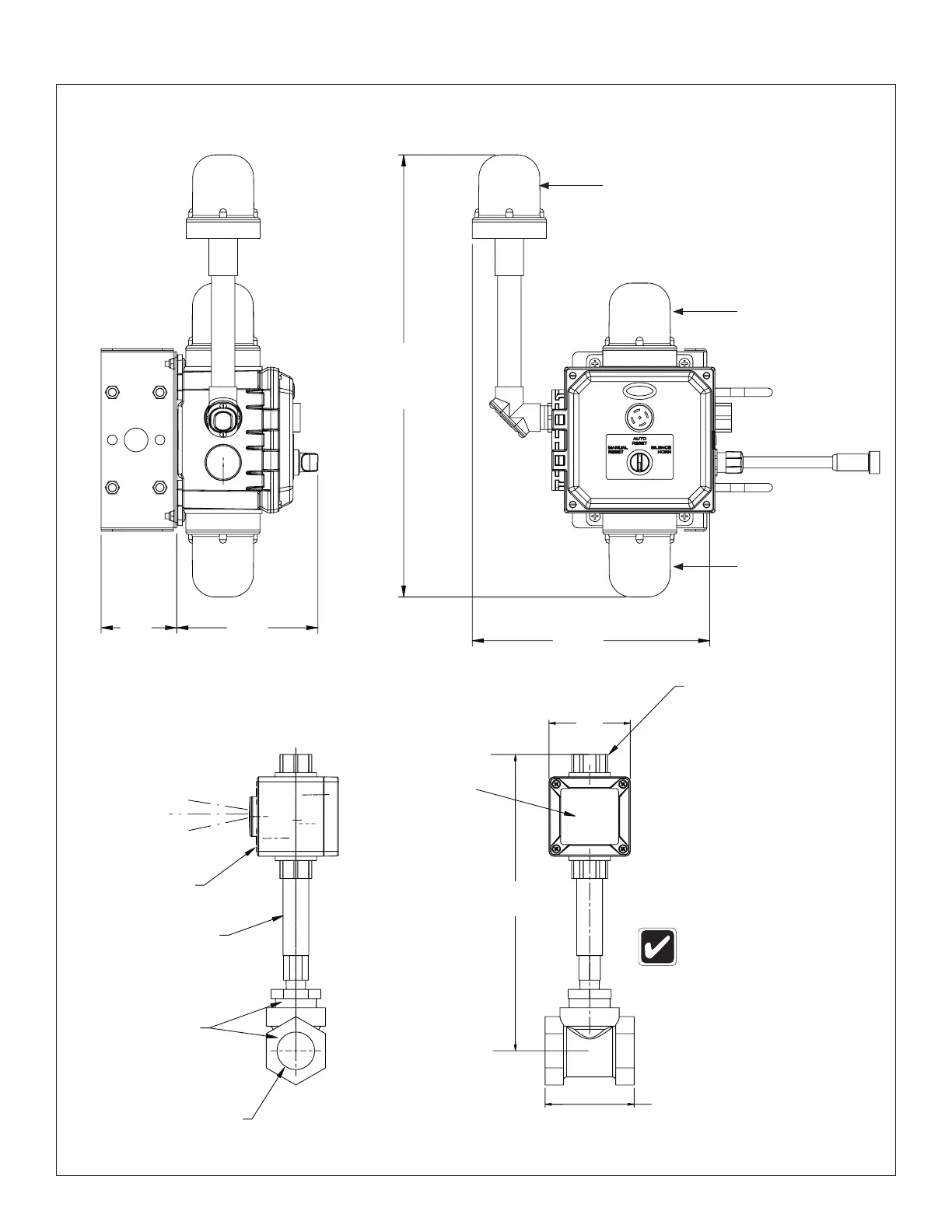

S19-324 Components
Signal Light
Type-4X Shown
(Standard)
Area Light
Type-4X Shown
(Optional)
19-3/4"
(501mm)
3-3/8"
(86mm)
6-5/16"
(160mm)
10-9/16"
(269mm)
Beacon Light
Type-4X Shown
(Optional)
¾" NPT Hub,
Plugged
Brass
Sensor
Body
Brass
Adapter
and Tee
NEMA 4X
Junction Box
and Cover
Electrical Quick
Disconnect Male
3-5/16"
(84mm)
Red
Blue
Black
Remote
Sensing
12-1/16"
(306mm)
System is prewired. Installer
connects ONLY ground black
and white wires.
1/2" (eyewash)
or 1¼" (drench
shower) NPT Inlet
and Outlet
2-3/8" (60mm) for
eyewash or
3-9/16" (91mm) for
drench shower
