Braeburn 140202 - Thermostat Wiring; Transformer Wiring

3.2 Thermostat Wiring
Install the system thermostats using the instructions
provided by the manufacturer.

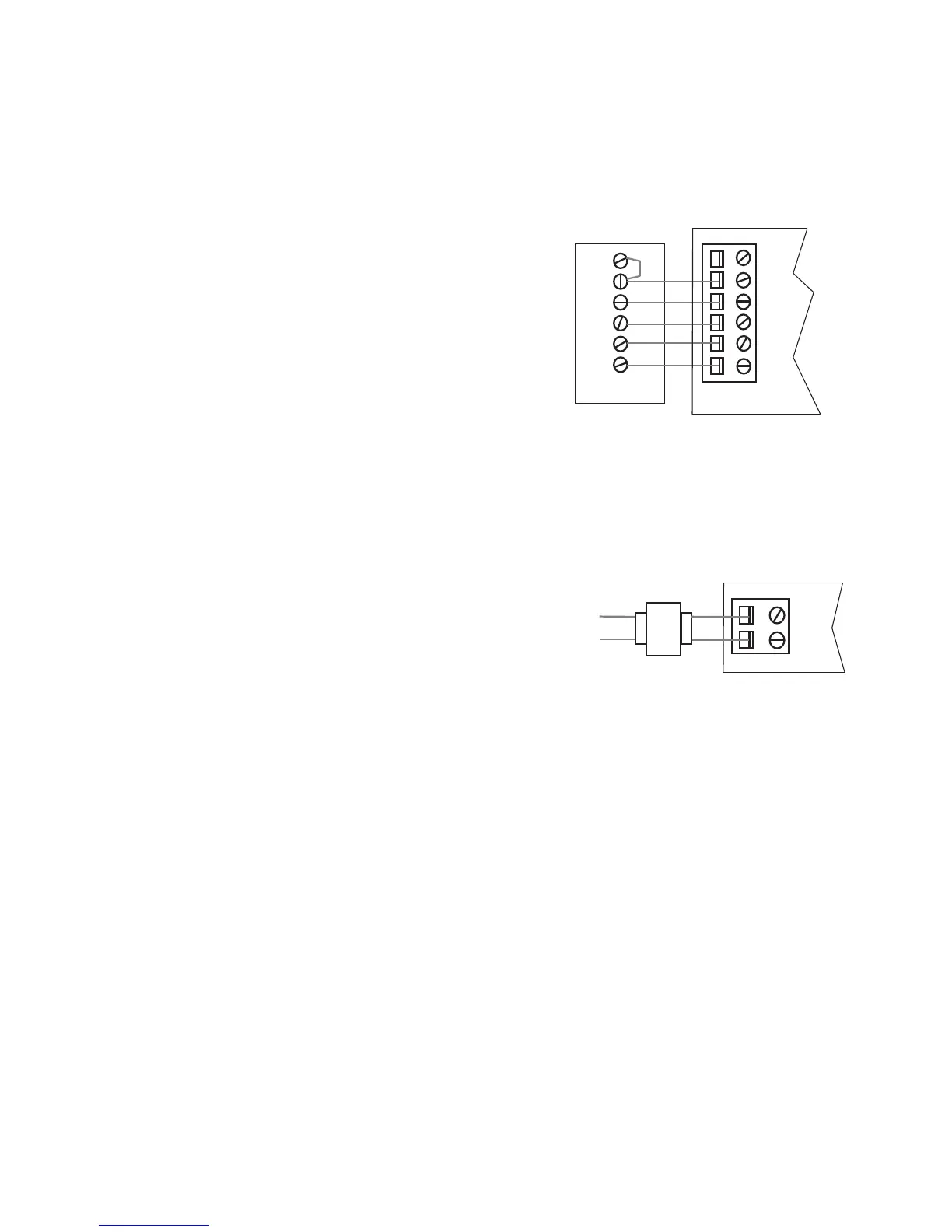

Connect the thermostats to the zone panel as shown.
Notes:
• Wiring to the C terminal is required only for
thermostat power.
• E terminal at thermostat 1 controls emergency heat.
See E-Heat Switch Installation Sheet TSB-0708-01
for wiring details.
3.3 Transformer Wiring
Install the transformer using the instructions provided
by the manufacturer. Size the transformer to the damper
requirements. The zone panel has a built-in, self-resetting
fuse. The maximum damper power per panel is 35 VA at
24 VAC.
Connect the transformer to the zone panel as shown.
Note: Additional dampers or dampers with a higher current draw will require the use of a separate
slave relay.
E
R
Y
G
W
C
Rh
Rc
Y
G
W
C
Thermostat Zone Panel
24V
24C
CC
HOT
Dedicated
Zoning Transformer
Zone
Panel
4
