Install your new Braeburn thermostat in 5 basic steps:
1 Install the Sub-Base
2 Provide Power
3 Connect Your Wires
4 Set Installer Switches
5 Attach Thermostat to Sub-Base
Install the Sub-Base:
• Remove the sub-base from the body of the thermostat.
• Mount the sub-base as shown below:
1
NOTE: After sub-base installation, you may insert the quick reference card
into the slot on the top of the base.
3
Installation
Warning
Disconnect power before beginning installation.

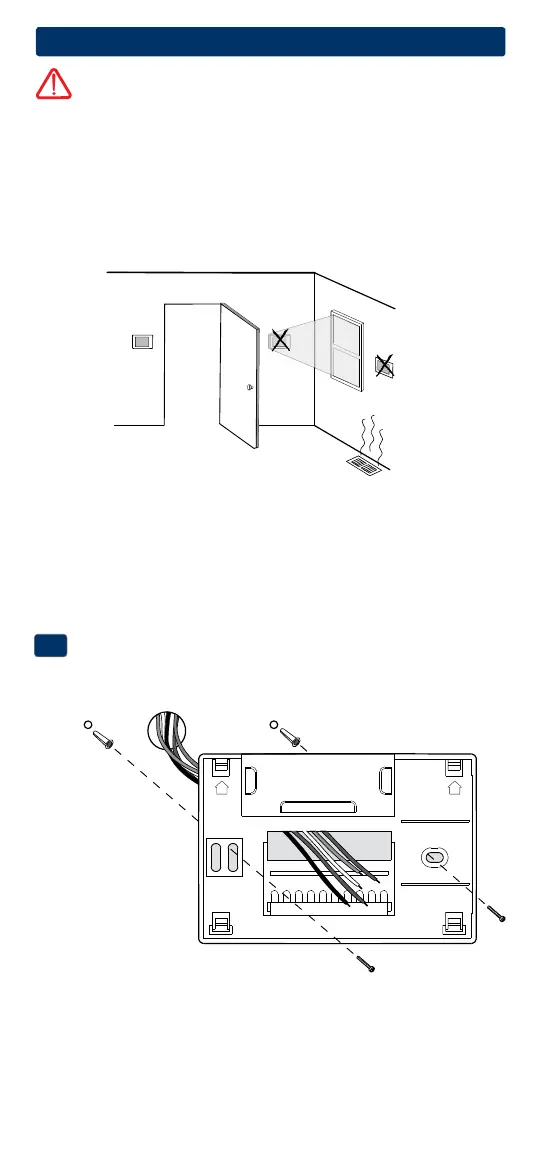

Thermostat Location
Install the thermostat approximately 5 feet (1.5m) above the floor in an
area that has a good amount of air circulation and maintains an average
room temperature.
Avoid installation in locations where the thermostat can be affected by
drafts, dead air spots, hot or cold air ducts, sunlight, appliances, concealed
pipes, chimneys and outside walls.
Drill 3/16” pilot holes in
your desired location.
Use supplied anchors for
drywall or plaster.
UP UP
