Braeburn 3020 Detailed Installer Guide

Installer Guide 8
INSTRUCTIONS
Room Temperature...................... Displaysthecurrentroomtemperature
Set Temperature..........................Displaysthecurrentsetpointtemperature
Reset Button ............................... Resetscurrenttime,programandusersettings
SYSTEM Button............................Selectsthesystemyouwanttocontrol
BACK Button.................................Movesbackininstaller/usersetupmodes
NEXT Button.................................Movesforwardininstaller/usersetupmodes
RETURN Button............................ Returnstonormalmodefrominstaller/usersetupmodes
Service Indicators ...................... Displaysvariousservice/maintenanceinformation
FAN Button...................................Selectsthesystemfanmode
Quick Reference Instructions......Storedinslotlocatedattopofthermostat
Low Battery Indicator.................. Indicateswhenthebatteriesneedtobereplaced
Fan Indicator................................ Indicateswhenthesystemfanisrunning
System Status Indicator ............. Displaysinformationaboutthestatusofthesystem
Lock Mode Indicator ................... Indicatesifthethermostatislocked
SpeedBar
®
................................... Increasesordecreasessettings(time,temperature,etc.)
Outdoor Temperature Indicator.... Displaysalongwiththeoutdoortemperaturereading(seenotebelow)
Installer Clear Button .................. Locatedonbackofthermostatbody–clearsallsettings
Battery Compartment ................. Locatedinthebackofthermostat
3
Quick Reference
1
2
3
5
15
7
14
16
13
12
11
10
1
2
3
4
5
6
7
8
9
10
11

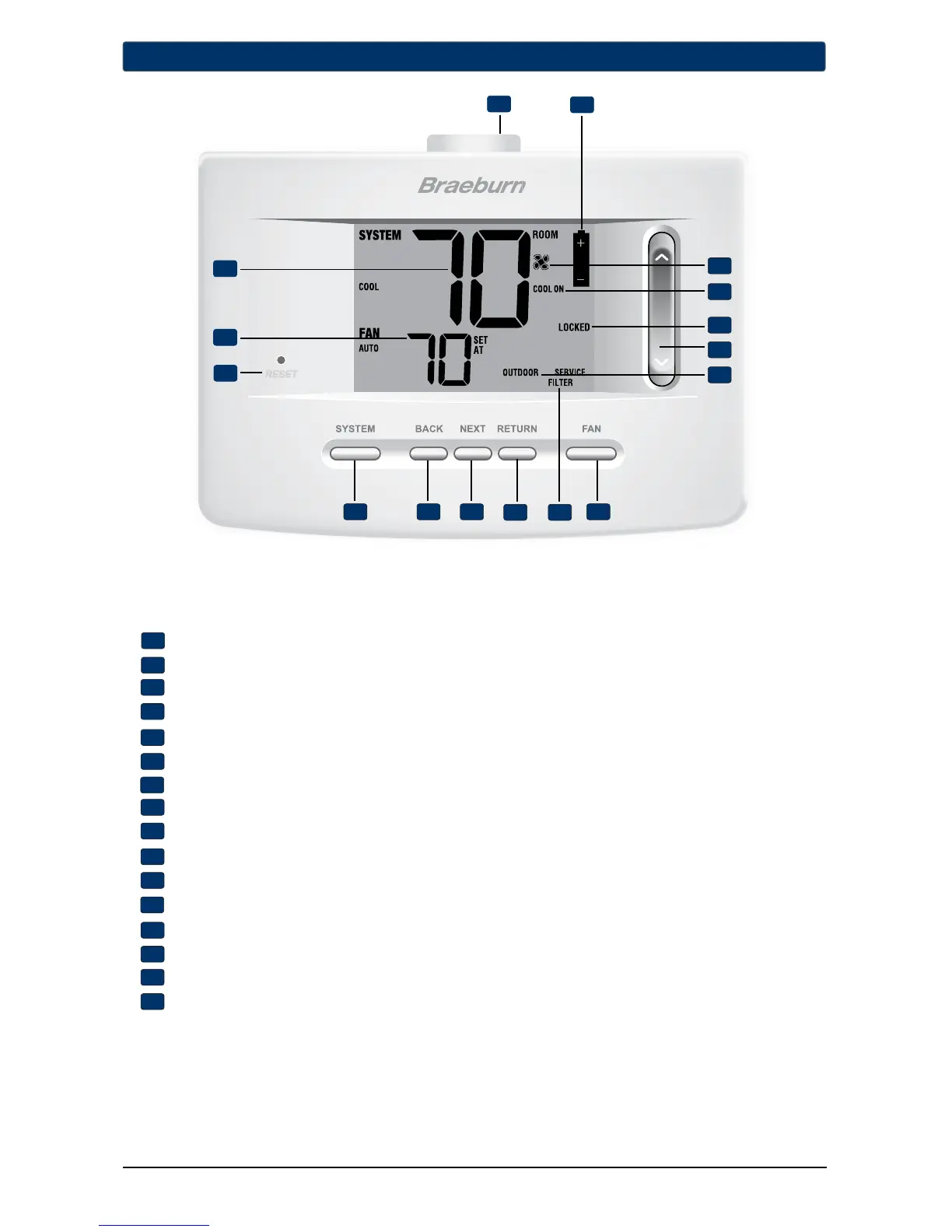

Thermostat and Display
12
13
14
6
8
4 9
15
16
NOTE: If a Braeburn
®
outdoor sensor was connected you can view the outdoor temperature by
pressing the BACK and NEXT buttons at the same time.

Braeburn 3020 Specifications

General

Brand	Braeburn
Model	3020
Category	Thermostat
Language	English
