Braeburn 5100 User Manual

PROGRAMMING cont.
5
8. Place the system switch in the COOL mode of operation. The display will show COOL. Follow
steps 2 through 6 to program the setpoint times and temperatures for the Quick Program
Group or Individual Day selection for the COOL mode.
9. Repeat steps 3 through 8 for additional Quick Program Groups or Individual Day programming
as required.
NOTE: To erase all entered programs, current time of day, day of week and other user
settings, gently press RESET button using a paper clip or a small pencil tip. This will return
all Thermostat settings to their default values.
ADDITIONAL
OPERATION FEATURES
6
10

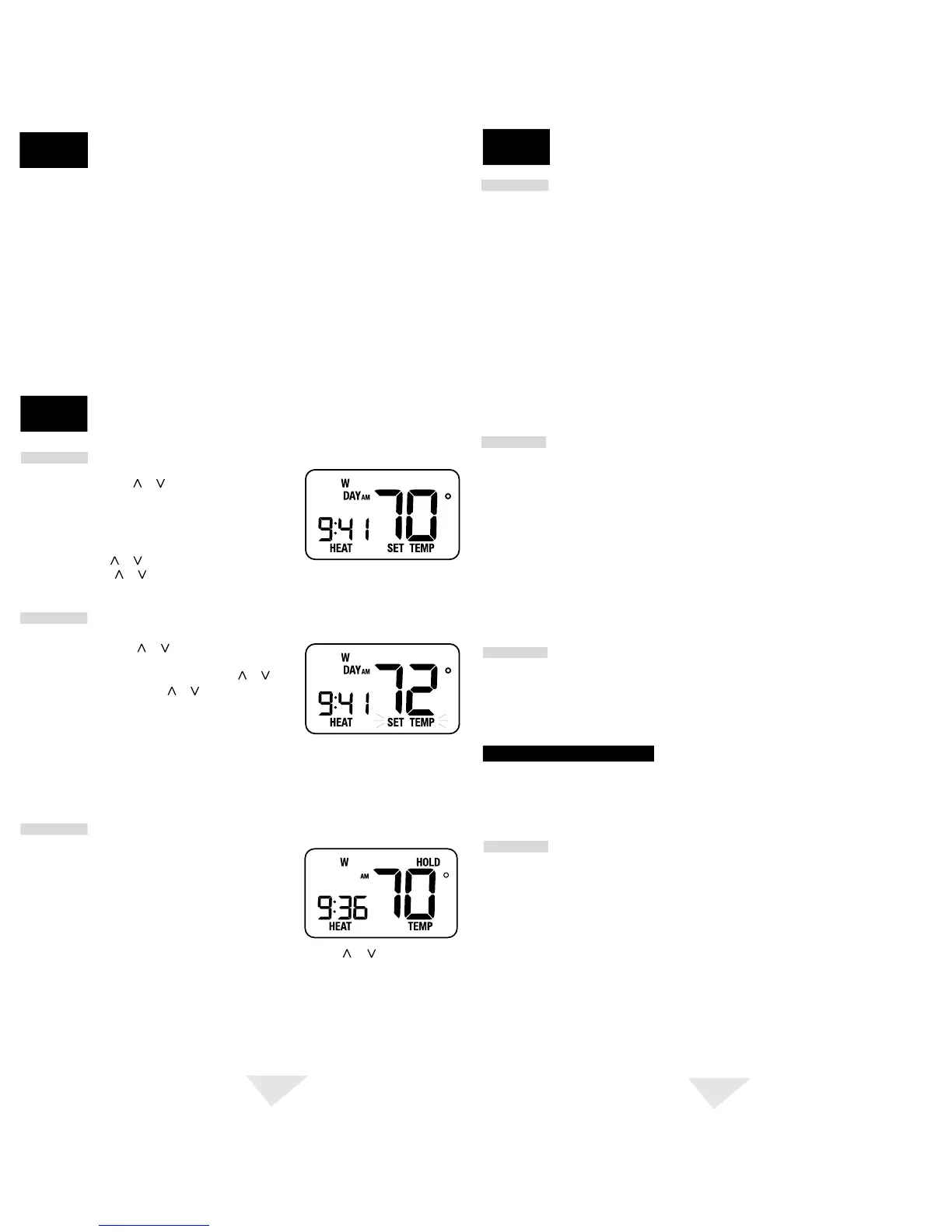

6.1
Review Set Temperature
1. Press and hold or buttons. The current
setpoint temperature will be displayed in the place
of the current room temperature, and the indicator
SET TEMP will be displayed.
2. The display will return to normal operating mode
when the or buttons are released. Continuing
to hold the or buttons for 3 seconds or longer will allow the user to temporarily
override the current programmed setpoint (See Temporary Program Override).
6.2
Temporary Program Override
6.3
Permanent Hold (Vacation) Mode
1. Press and hold or buttons for 3 seconds. The
entire display will flash once and the SET TEMP
indicator will be flashing. Release the or
buttons and press the or buttons again as
desired to adjust the set temperature.
2. The display will return to normal operating mode
after 15 seconds or you can press RESUME button.
3. The program indicator (MORN, DAY, EVE OR NIGHT) will be flashing in the display
indicating that a Temporary Program Override is in effect. The Temporary Program
Override will reset when the next setpoint time occurs.
1. Press the HOLD button to permanently bypass the
program schedule. The current setpoint
temperature will be held permanently and HOLD
and TEMP will show in the display.
2. Press the HOLD button again to return the
thermostat to normal program operation.
3. You can view or change your setpoint at any time using the or buttons
(see Review Set Temperature or Temporary Program Override).
11
REMEMBER, this thermostat includes an automatic compressor protection
feature to avoid potential damage to the heat pump system from short cycling (See
Compressor Protection).
6.4
Efficient Recovery Mode (ERM™)
This thermostat is equipped with a special feature to maximize your energy savings by
utilizing the most effective source of heating or cooling to meet your program needs during
recovery from setback (or setup) temperatures. Our Efficient Recovery Mode (ERM
™
) feature
is designed to automatically calculate when to turn your first (heat pump) stage of your multi-
stage heating or cooling system to meet your upcoming comfort setpoint temperature setting.
While in normal operating mode, this feature will start calculating the start time for your first
stage (heat pump) two hours prior to the upcoming comfort setpoint temperature. During this
two hour time period it will monitor performance and control your system staging
requirements. The second (auxiliary) stages of heating or cooling will be available during this
2-hour period if required to meet extraordinary heating or cooling requirements.
6.5
Compressor Protection
This thermostat includes an automatic compressor protection feature to avoid potential
damage to the heat / cool system from short cycling. This thermostat automatically provides
a 5-minute delay after turning off the heating or cooling output to protect the compressor.
NOTE: The installer can reset the thermostat and bypass the compressor protection
features by pressing the RESET button. This will erase all entered programs, current
time of day, day of week and other user settings and should only be used during
installation for testing purposes or to reset a thermostat to regain normal operation.
This will return all Thermostat settings to their default values. The user will have to
re-program all of the erased settings.
6.6
High Temperature Safety Switch
While the thermostat is in the HEAT mode of operation (selector switch in the HEAT position),
the thermostat will mechanically turn-off if the room temperature raises higher than 99˚F
(37˚ C). There is also a software feature that will automatically turn-off the thermostat in
HEAT mode if the temperature raises higher than 93˚ F (34˚ C).
WARNING!
Press RESET button using a paper clip or a small pencil tip. This will reset the
thermostat and return all settings to their default values. Verify your thermosta t is
controlling your system, see Testing Your New Thermostat. If the problems still persist,
call a professional service technician immediately to verify proper system operation.
6.7
Changing Fahrenheit (°F) to Celsius (°C)
1. Release the front thermostat body from the rear thermostat body by pressing the release
latch on the bottom of the thermostat.
2. Gently separate the two thermostat halves and turn the front thermostat body over exposing
the rear view of the circuit board.
3. Locate the internal ˚F / ˚C switch on the circuit board.
4. Using your fingers, gently flip the switch towards the preferred temperature ˚F / ˚C scale.
5. Reattach the front thermostat body by locating the top mounting lugs and swinging the
thermostat down until the release latch locks.
6. Press the RESET button on the front of the thermostat using a paper clip or a small pencil
tip. This will register the new temperature scale default.
ADDITIONAL
OPERATION FEATURES
6
cont.
