Braeburn Builder 1000 User Manual

4
PROGRAMMING
USER SETTINGS
4

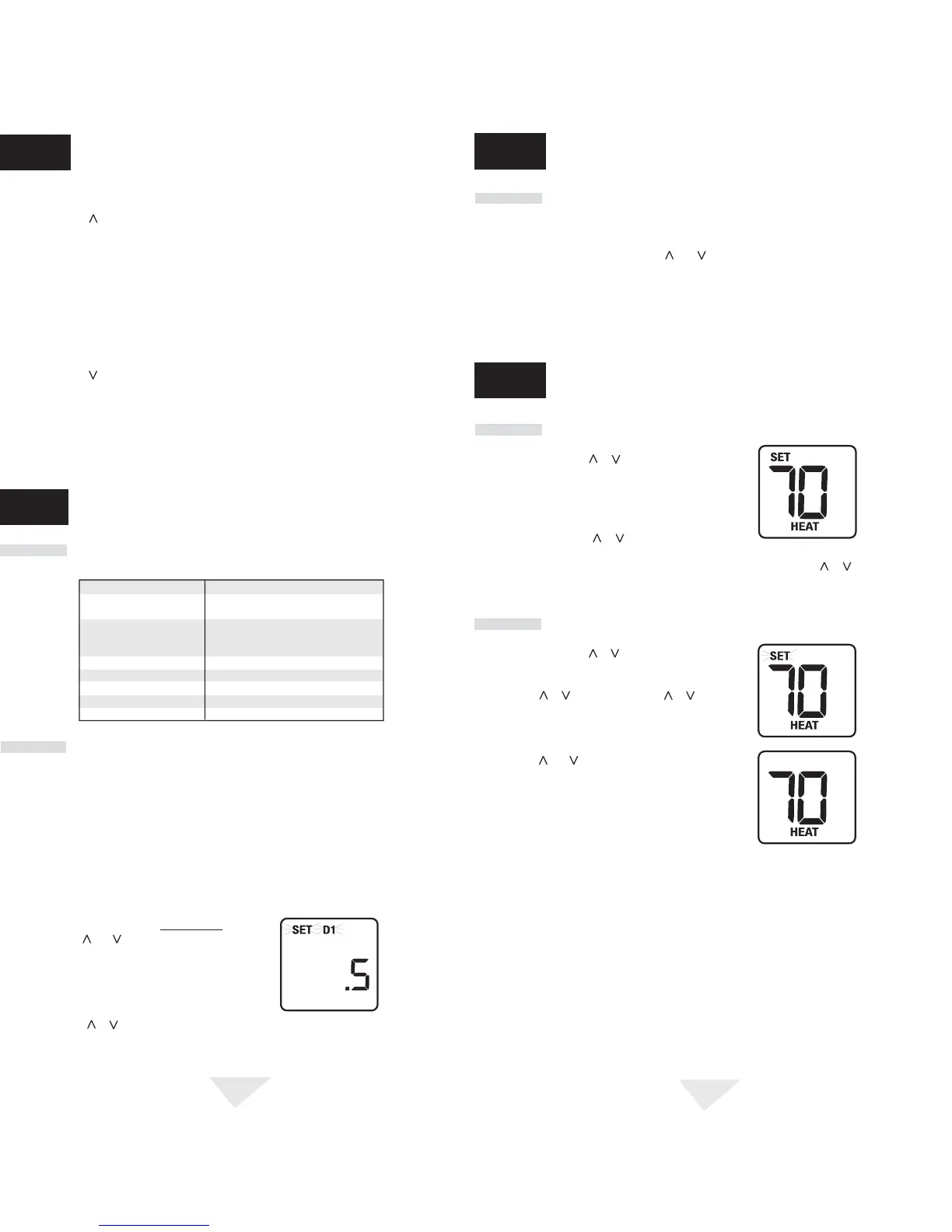

4.1
Default Thermostat Settings
Function Status After Reset
Operation Mode Normal Operating Mode
Room Temperature 70˚ F (21.0˚ C), to be renewed within
5 seconds
Setpoint Temperature According to system switch:
62˚ F (17.0˚ C) for Heat or Off
85˚ F (29.0˚ C) for Cool
Temperature Scale ˚F or ˚C dependent on switch setting
Low Battery Warning Off, to be renewed within 5 seconds
Temperature Differential 0.5˚ F (0.25˚ C)
Short Cycle Protection Timer Reset
Output Relays Off
1. Place the system switch in the HEAT position.
2. Press the button on the keypad until the setpoint temperature setting is a minimum of 3
degrees higher than the current room temperature. The heating system should start within
several seconds. The fan may not turn on immediately due to the heating system built-in
fan delay.
3. Place the system switch in the OFF position. The heating system should stop within several
seconds on normal single stage heating or cooling systems. On single stage heat pump
systems you must wait 5 minutes for the automatic compressor short cycle protection period to
expire, or press the RESET button to bypass this feature for initial testing purposes. Pressing the
RESET button will erase any user program settings.
4. Place the system switch in the COOL position.
5. Press the button on the keypad until the setpoint temperature is a minimum of 3 degrees
lower than the current room temperature.
6. The cooling system should start within several seconds. Place the system switch in the OFF
position. The cooling system should stop within a few seconds.
7. Place the fan switch in the ON position. The system blower should start.
8. Place the fan switch in the AUTO position. The system blower should stop.
4.2
Setting Temperature Differential
NOTE: The temperature differential settings are the same for both the heating and
cooling systems.
The default settings for the temperature differential is compatible with most systems and
applications. The temperature differential is normally set at time of installation and usually does
not require any modification under normal operating conditions. If you feel that your system is
turning on too often, simply follow the instructions below.
The default setting is 0.5˚ F (0.25˚ C). The room temperature must change .5˚ F (0.25˚ C) from
the setpoint temperature before the thermostat will initiate the system in heating or cooling.
2. Press the or buttons to set the temperature differential to your desired setting of .5˚, 1˚,
or 2˚ F (.25––displayed as .2˚, .5˚ or 1˚ C).
1. In normal operating mode, press and hold
both the and buttons at the same time
for 4 seconds. LCD display will show "SET
D1 x˚", where "x" equals the ˚F / ˚C
differential setting. This is the current
temperature differential setting.
TESTING YOUR
NEW THERMOSTAT
3
cont.
cont.
Setting Temperature Differential cont.
NOTE: Once you have finished setting the temperature differential you can wait 5
seconds and the thermostat will automatically return to the normal operating mode.
Otherwise, you can press both the and buttons at the same time again to return you
to normal operating mode.
NOTE: To erase all user program settings, gently press RESET button using a
paperclip or a small pencil tip. This will return all thermostat settings to their
default values.
Review Set Temperature
1. Press and hold or button. The current
setpoint temperature will be displayed in the
place of the current room temperature, and the
indicator SET will be displayed.
2. The display will return to normal operating
mode when the or buttons are released.
The SET indicator will turn off indicating that the current temperature
shown in the display is the room temperature. Continuing to hold the or button
for 3 seconds or longer will allow the user to change the current setpoint temperature
(See Changing Set Temperature).
ADDITIONAL
OPERATION FEATURES
PROGRAMMING
USER SETTINGS
5
Changing Set Temperature
1. Press and hold or button for 3 seconds.
The entire display will flash once and the
SET indicator will be flashing. Release
the or button and press the or button
again as desired to adjust the set temperature.
2. The display will return to normal operating
mode after 5 seconds, or you can press both
the and buttons at the same time to return
to normal operating mode.
3. The SET indicator will turn off in the display,
indicating that the current temperature shown
in the display is the room temperature.
4
4.2
5.1
5
5.2
